10mm 2 Pin Snap-SR for IP20
10mm 2 Pin Snap-SR for IP20

10mm 2 Pin Snap-SR for IP20

Customization Options:Package, Wire, Adapter and more

Brief Info

  • Types: Strip to Power, Strip to Strip Joint, Strip to Strip Bridge
  • Applicable Strip: IP20 Non-waterproof
  • Workable PCB Type: Flexible
  • Workable Wire: 22AWG/0.32mm2
  • Certificate: CE,RoHS,Reach
  • share

Options

Model NO. Types Connective Position
OL11-SR10BB-2 Strip to strip joint for IP20 Between two strips, without wires
OL11-SR10XB-2 Strip to Power for IP20 One connector with 150mm 22AWG wire
OL11-SR10BXB-2 Strip to Strip bridge for IP20 Between two connector with 150mm 22AWG wire

Technical Data

Part Num Type Voltage/Current Strip width Pin NO. Size Material Wire Spec Wire Fixed Color
SR10BB-2 strip to strip joint 3~24V/3.5A 10mm 2 Pins 15.3*14.5*4.5 mm Nylon(PA66), copper / no wire White
SR10XB-2W strip to power 3~24V/3.5A 10mm 2 Pins 15.3*14.5*4.5 mm Nylon(PA66), copper , PVC 150mm 22AWG/0.32mm2 with wire White
SR10BXB-2W strip to strip bridge 3~24V/3.5A 10mm 2 Pins 15.3*14.5*4.5 mm Nylon(PA66), copper , PVC 150mm 22AWG/0.32mm2 with wire White

Strip to Power

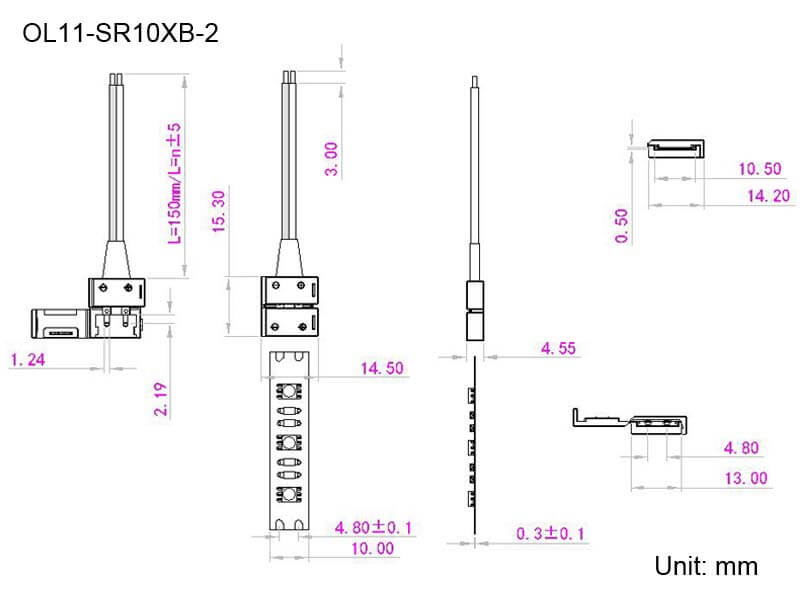

Dimensional Drawing of SR10XB-2

Strip to Strip Joint

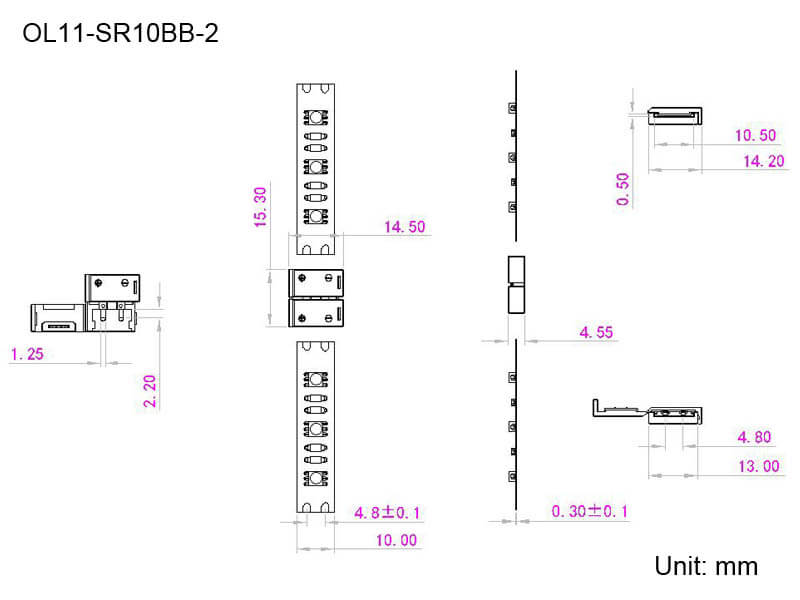

Dimensional Drawing of SR10BB-2

How to Use

Certificates

Title Language Size Type
Snap-SR LED Strip Connector-EA1604024E 01001 EMC Report-1(1)
English 208kb pdf
Snap-SR LED Strip Connector CA1604024R 01001 RoHS report-1(1)
English 240kb pdf
Snap-SR LED Strip Connector -16AE04024E 001 EMC Cert.
English 318kb pdf

Package Options

Boxes Hanging Head Face Seal Blister Clamshell Blister
