10mm 2 Pin Solid Lock for IP20
10mm 2 Pin Solid Lock for IP20

10mm 2 Pin Solid Lock for IP20

Customization Options:Package, Wire, Adapter and more

Brief Info

  • Types: Strip to wire, Strip to Power, Strip to Strip Joint, Strip to Strip Bridge
  • Applicable Strip: IP20 Non-waterproof
  • Workable PCB Type: Flexible
  • Workable Wire: 22~20 AWG/0.32~0.52 mm2
  • Certificate: CE,RoHS,Reach
  • share

Options

Model NO. Types Connective Position
OL11-SL10XB-2 Strip to wire for IP20 Between strip and wire
OL11-SL10BB-2 Strip to strip joint for IP20 Between two strips, without wires
OL11-SL10XB-2W Strip to Power for IP20 One connector with 150mm 22AWG wire
OL11-SL10BXB-2W Strip to Strip bridge for IP20 Between two connector with 150mm 22AWG wire



Technical Data

Part Num Type Voltage/Current Strip width Pin NO. Size Material Wire Spec Wire Fixed Color
SL10XB-2 strip to wire 3~24V/6A 10mm 2 Pins 16*12.4*4.5mm Nylon(PA66), copper , PVC 150mm 20AWG/0.52mm2 with wire White
SL10BB-2 strip to strip joint 3~24V/6A 10mm 2 Pins 20.6*13*4.5mm Nylon(PA66), copper / no wire White
SL10XB-2W strip to power 3~24V/4.5A 10mm 2 Pins 16*12.4*4.5mm Nylon(PA66), copper , PVC 150mm 20AWG/0.52mm2 with wire White
SL10BXB-2W strip to strip bridge 3~24V/4.5A 10mm 2 Pins 16*12.4*4.5mm Nylon(PA66), copper , PVC 150mm 20AWG/0.52mm2 with wire White

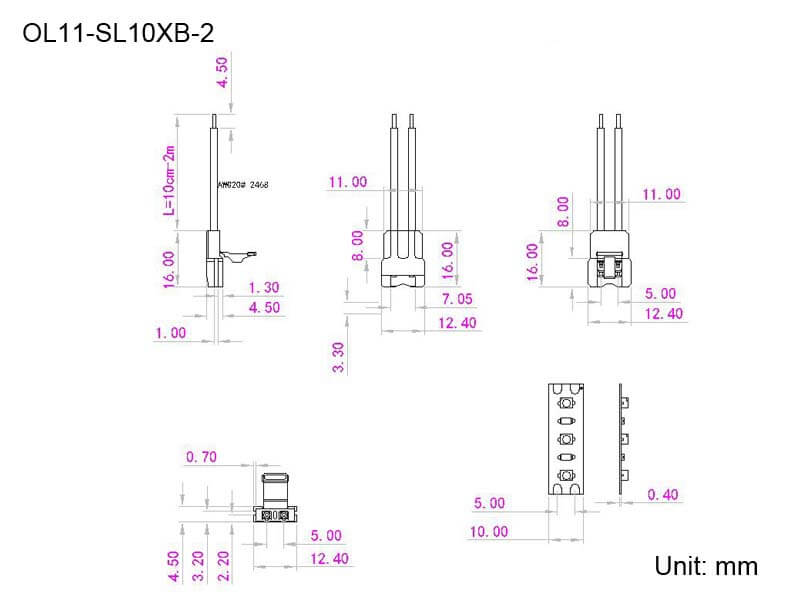

Strip to Power

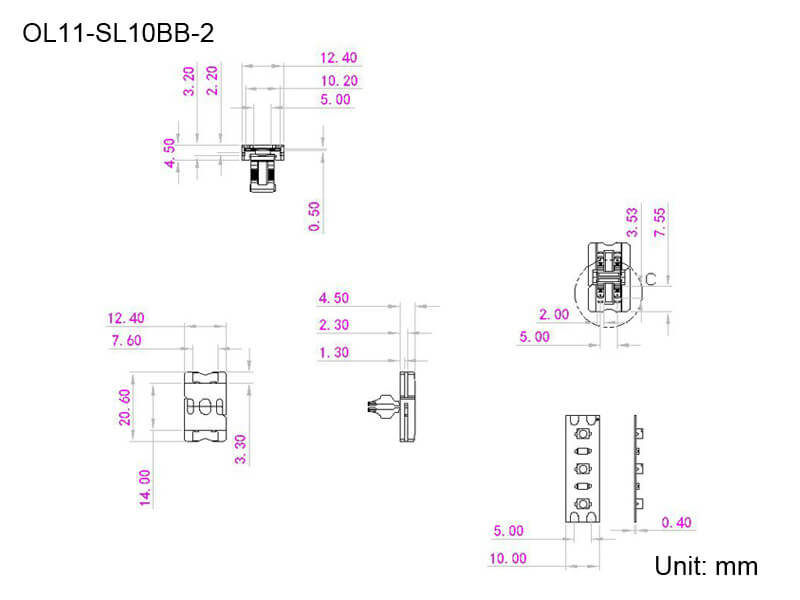

Strip to Strip Joint

How to Use

Certificates

Title Language Size Type
LCS200901098AR- Solid Lock LED Strip Connector-ROHS 2.0
English 1803kb pdf
LCS200901099AS-Solid Lock LED Strip Connector-CE
English 1171kb pdf
LCS200901099AS-Solid Lock LED Strip Connector-report
English 1820kb pdf

10mm 2 Pin Solid Lock for IP20

The solid lock connector series of Onlumi brings the finest quality connectors for non-waterproof LED strips. You can create a secure connection between IP20 strips by using the 2pin solid lock connector for IP20 strips. This connector is applicable with 10mm strips. You can find here a connector for joining two IP20 LED strips without wires. Moreover, there is strip to power and strip to strip bridge connectors available at affordable price. These connectors come with 150mm 22AWG wires. These wires have PVC insulation and the insulation color is red and black. The wire color is changeable. The buyer can order a different wire color. The 2pin solid lock connector is available in white color. The material used in the manufacturing of this high-quality connector includes nylon(PA66) and copper. The connector comes with simple use. Peel the covering paper off the IP20 strip and insert it into the connector. Place the strip light on the connector pin. If you want to join this strip with the power wires, insert wires into the connector from the other side. Lock the connector by pressing it from both sides and your connection is complete. Place your order to get delivery of this product at wholesale price.

Package Options

Boxes Hanging Head Face Seal Blister Clamshell Blister
