COB LED Strip Connector BCI

Beetle Clip Invisible (BCI) is a specific category of IP20 High Density SMD / COB LED Strip Connector.  It includes 5mm, 6mm, 8mm, 10mm and 12mm for option. The pin numbers are 2 pins, 3 pins and 4 pins that are made for single color, CCT and RGB.

Beetle Clip Invisiable effect

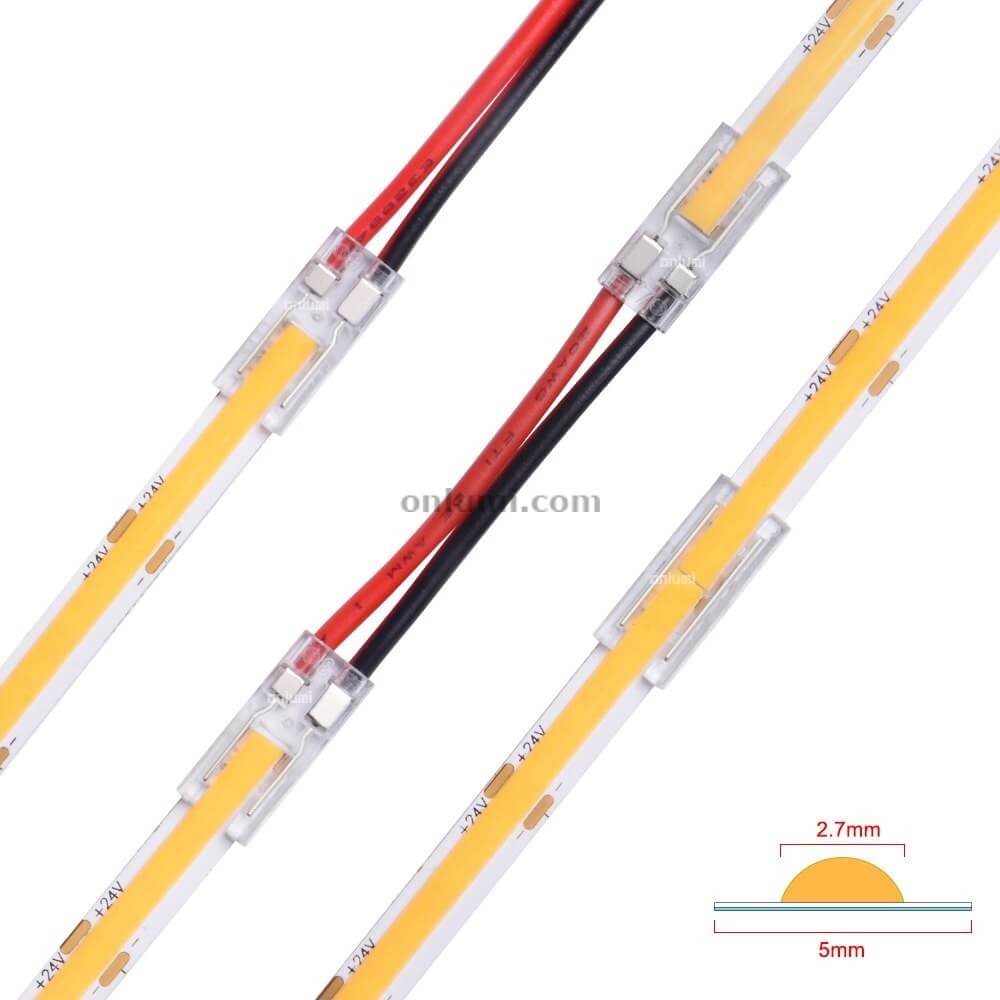

There are 3 forms that are strip to power, strip to strip bridge and strip to strip joint.  The open housing design doesn’t break the continuity of strip light when used between 2 cob tape light, which make it a perfect cob light strip connector. Lighting designers can realized the REAL linear lighting effect with it.

For IP65 or IP68 COB strip light, pls refer to this article, Some Best COB LED Strip Connectors for Different COB Strips

Features

  • Ultra slim, best for working inside aluminum led channel
  • Real gapless connection, it doesn’t block the light from led strip
  • Easy to use, no soldering needed
  • Secure and firm fixing, adopting pierce-to-contact technology
  • powerful, support max 5.5A at DC24V

Working Effect With 3 Types of LED Tape

working effect with 3 types of led tape
working effect with 3 types of led tape



Technical Data of this Category

Working Voltage DC3~24V
Working Current Max 5.5A, depend on pcb and wire guage
Material Copper, Polycarbonate (PC) , PVC or Teflon
Housing Color Clear
Wire Gauge 20~18 AWG / 0.52~0.78 mm²
Certificate CE, RoHS, REACH
Way of Contact Pierece-to-contact
Working Environment -10 ~ 45 ℃
