LED Light Strip Connector Archives

There are 5mm, 6mm, 8mm, 10mm and 12mm+ in our product line. Sorted by LED strip light colors, we offer connecting solutions for light strip of single color, dual color / CCT, RGB, RGBW, RGBW+CCT (RGBWW), Pixel Color WS2812, WS2813, WS2814 and WS2811. By ingress protection grade, onlumi provide connectors for LED Strips which are IP20 rated (non-waterproof), IP65 rated (surface coating waterproof-some labs also rate this as IP44 or IP54 ), IP67 rated (hollow tube waterproof) and IP68 rated(solid tube waterproof). The applicable LED types on strip light include COB, SMD2835, 3014, 3528, 3535, 5050, 5630 and 5730, etc. In order to deal with the connection issue around corner, we develop corner connector coming with L shape (90 degree), T shape and cross (+) shape. All above options cove different connection types, such as strip to wire, strip to strip joint, strip to power, strip to strip bridge (jumper)

Reasons to Choose Onlumi as Your LED Strip Connector Supplier

1. High-quality products as the basis for cooperation

Firstly, the connector has stable fixing connection and enough contact area through excellent structural design
Secondly, we choose high-quality raw materials, paying attention to the Flame Retardant Rating, Heat resistance, aging resistance and quality of the material.
Thirdly, with strict quality control, implement supplier evaluation, incoming material inspection, first article inspection, patrol inspection, shipment inspection and other procedures to ensure that the products are qualified

2. Easier to find the LED light strip connectors you want

We provide the most complete selection in the industry. With 1500+SKU, it can adapt to 90% of the light strip types in the industry
Strong R&D capabilities. We launch 4-5 new products every year to match the development of the market
The richest experience in solving light strip connection problems. We have more experience than others for light strip connection
Flexible enough to support led connector customization. If standard products cannot meet your needs, we also provide product customization services. Customize the packaging method you want, and the minimum quantity and price are not high

3. Get the latest LED strip connection solutions earlier than other companies

As a professional supplier, based on our strong R&D and design capabilities, we always launch the latest light strip connectors ahead of the market. Cooperating with us can keep you at the forefront of industry development

4. Adequate inventory of product and raw material

Having sufficient stock means we can support small batch orders without high MOQ.
At the same time for the products in stock, the delivery time is very fast

5. Provide you with a matching test of the light strip for free

To avoid buying the wrong model, before our cooperation, you can send us a few samples to our laboratory in Shenzhen, and we will test them to find the most mached models for your tape light. This is our free service. To save internationl freight, you can ask your LED light strip supplier to send us the led strip.

6. Happy to offer free samples

Ask for samples in this link: https://www.onlumi.com/get-samples/

Certificate for LED strip connector

As a professional LED Strip Connector Supplier we apply CE certificate, Reach and RoHS report for all the led connector for stirp light. The cable used in connectors are UL listed. Most of the housing material have SGS test report. If needed, pls contact us for certificate and test report. More certificates

Different Series of LED light Strip Connector from Onlumi

As we have so many types of strip light connector, here is a brief table showing you the difference between each series.

Series Name	LED Width	LED IP Rating	Pin Quantity	Wire Gauge	High Lights

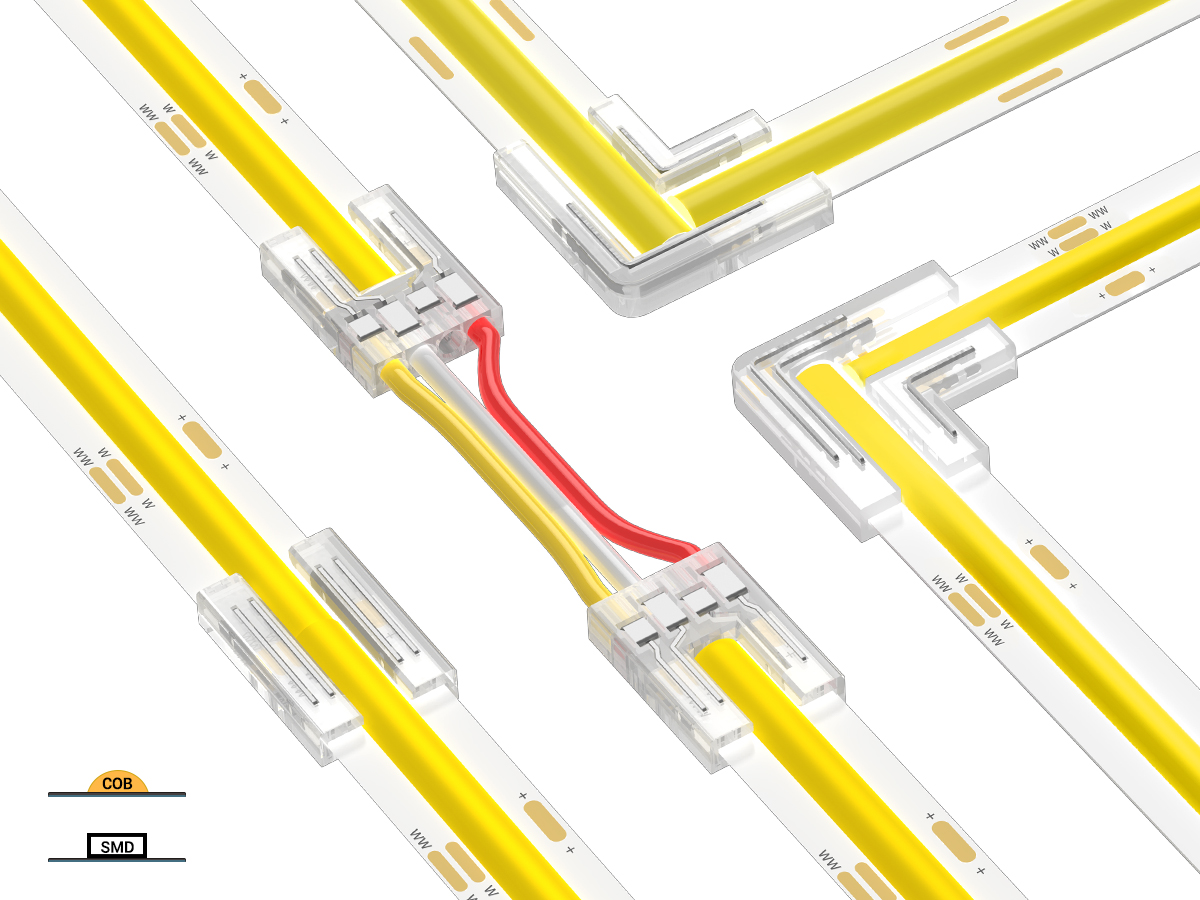

Beetle Clip Invisible	5mm, 6mm, 8mm, 10mm, 12mm	IP20	2 Pins, 3 Pins, 4 Pins	22~18AWG	slim size no mask over strip light best for COB strip light in market with cable

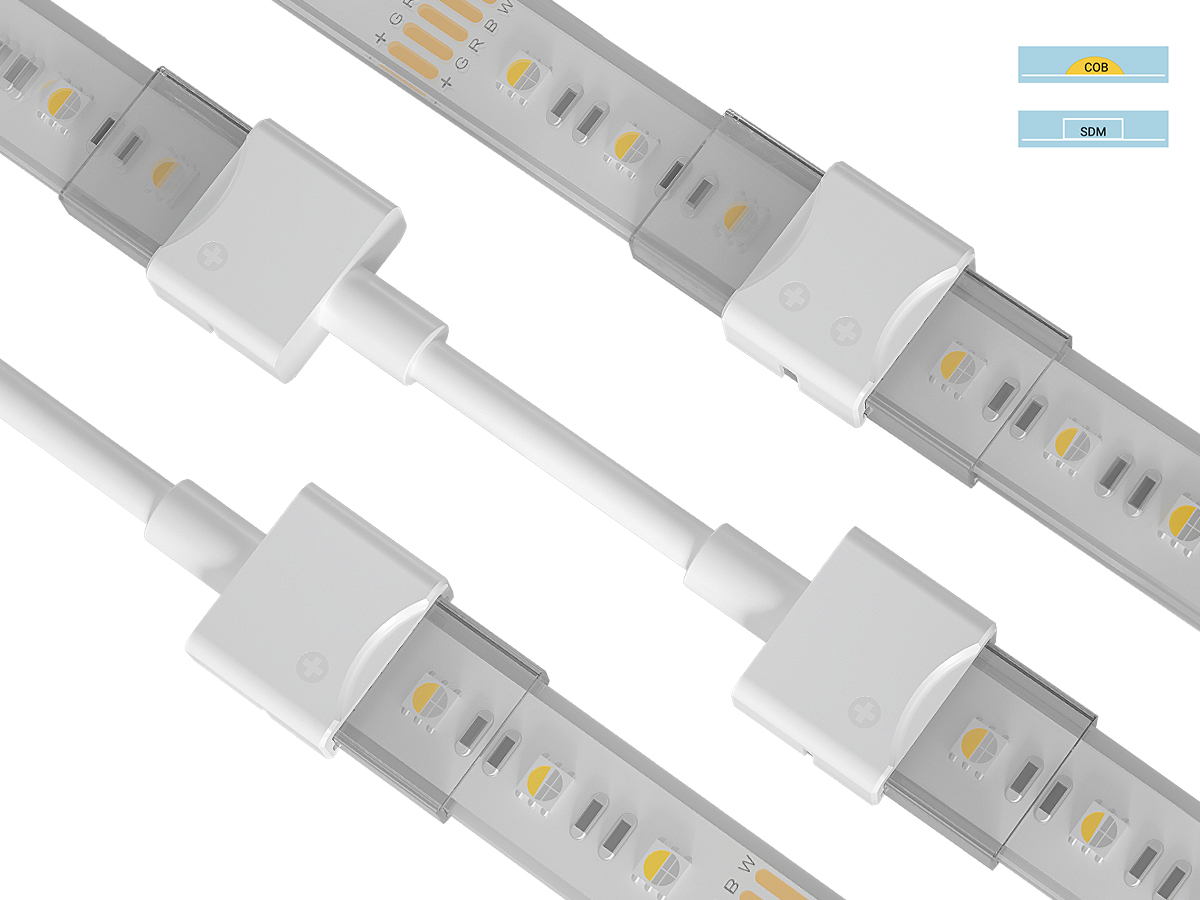

Outdoor Solid	8mm, 10mm, 12mm	IP68	2 Pins, 3 Pins, 4 Pins, 5 Pins	22~18AWG	for solid tube waterproof with cable, rainproof without extra protection
Beetle Clip	8mm, 10mm	IP20	2 Pins	20AWG	mini size Attach wire on demand

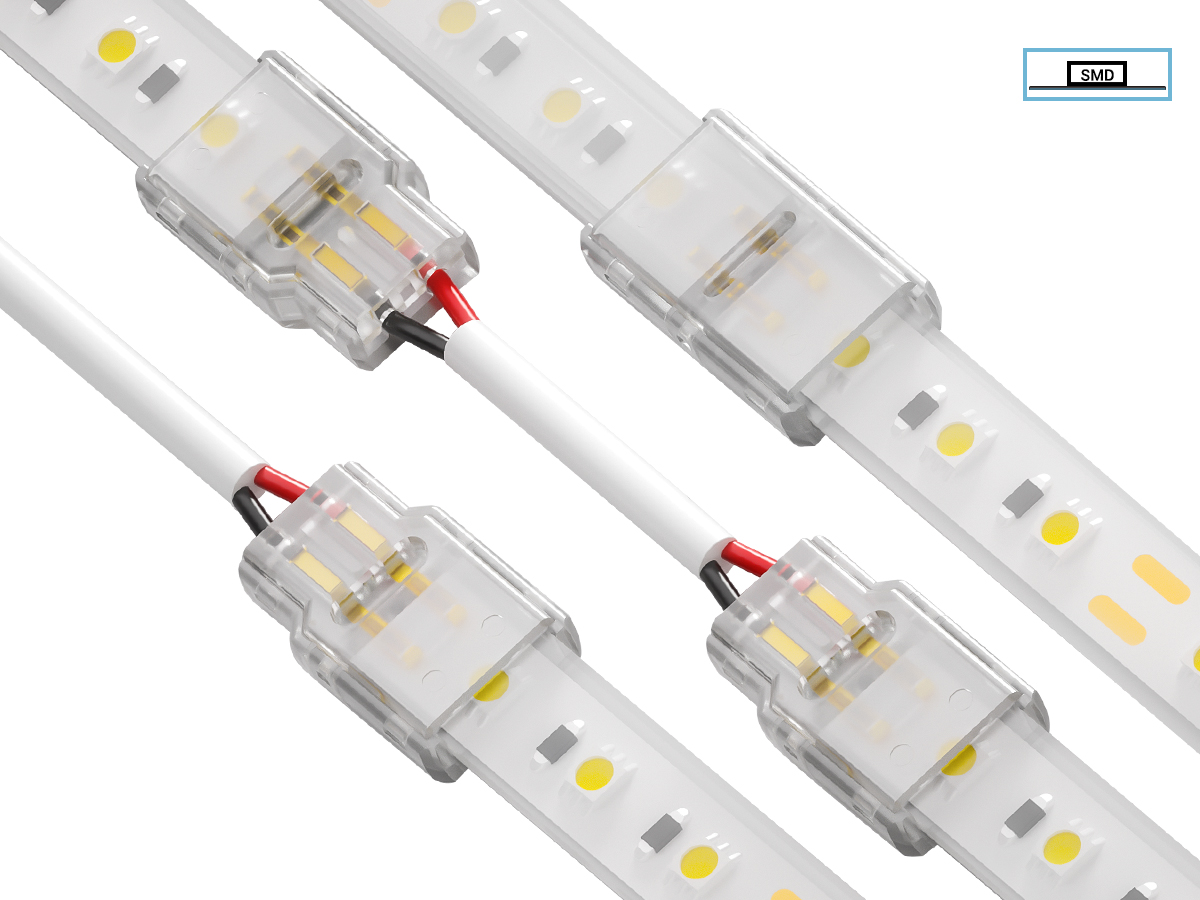

Outdoor Hollow	8mm, 10mm, 12mm	IP67	2 Pins, 3 Pins, 4 Pins, 5 Pins	22~18AWG	for hollow tube waterproof need glue for sealing Attach wire on demand

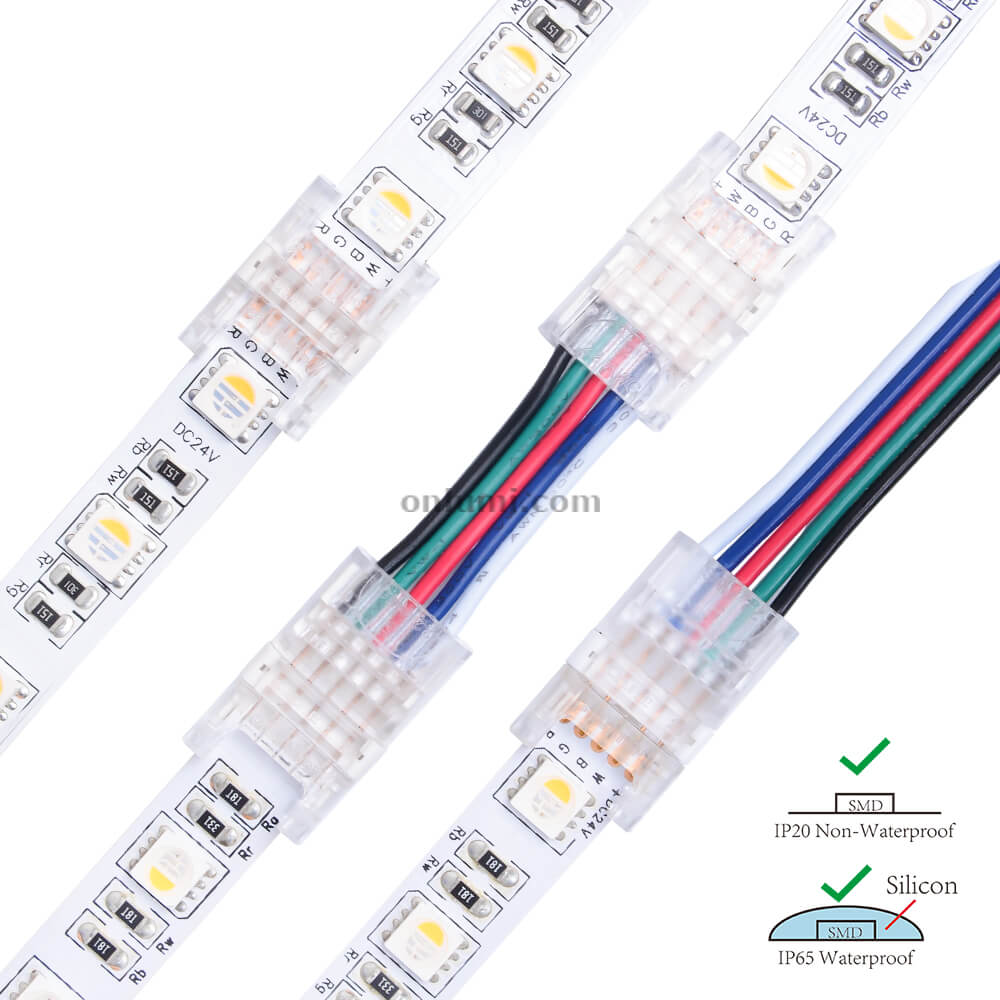

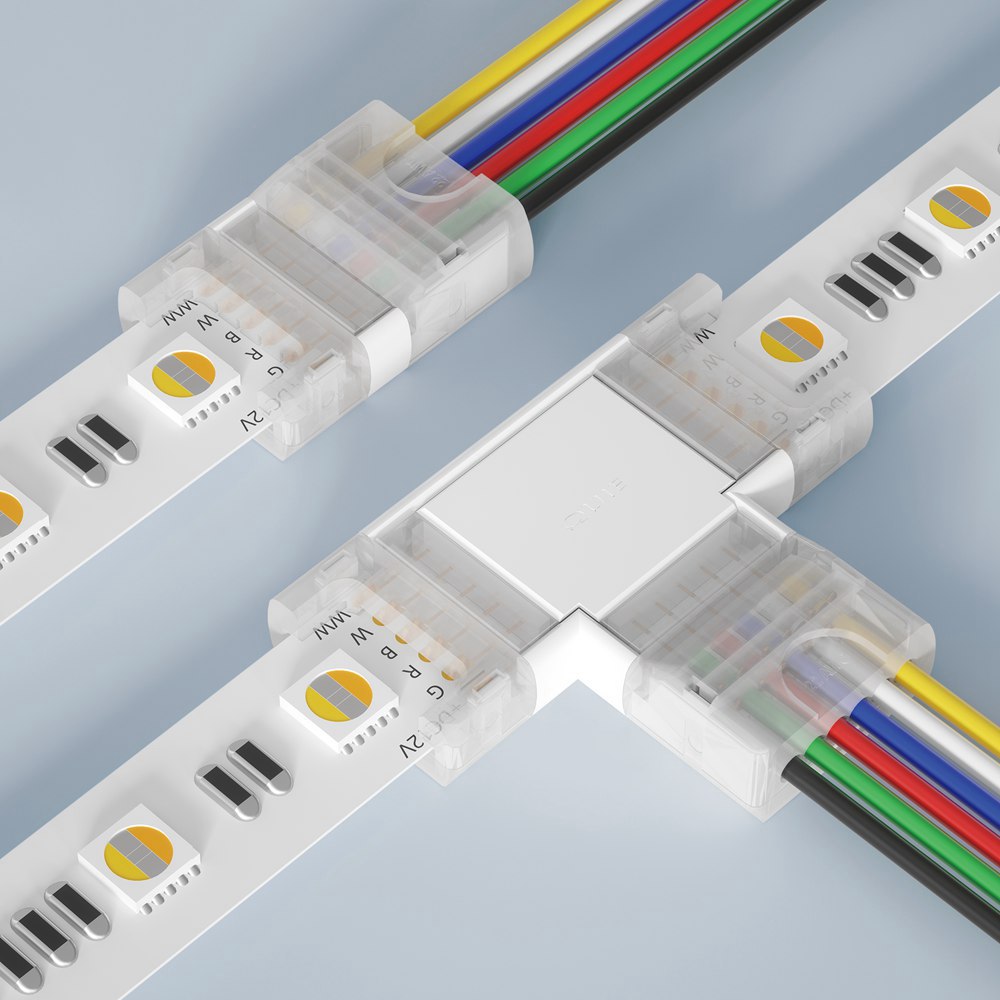

Hippo-M	5mm, 8mm, 10mm, 12mm	IP20, IP54/65	2 Pins, 3 Pins, 4 Pins, 5 Pins, 6 Pins	22~18AWG	Widest selection for strip light Attach wire on demand
Solid Lock	8mm, 10mm	IP20	2 Pins, 3 Pins, 4 Pins	22~20AWG	slim size Attach wire on demand
Snap DJ	8mm, 10mm, 12mm	IP54/65	2 Pins, 3 Pins, 4 Pins, 5 Pins	22~20AWG	Normal size, common style Easy to use

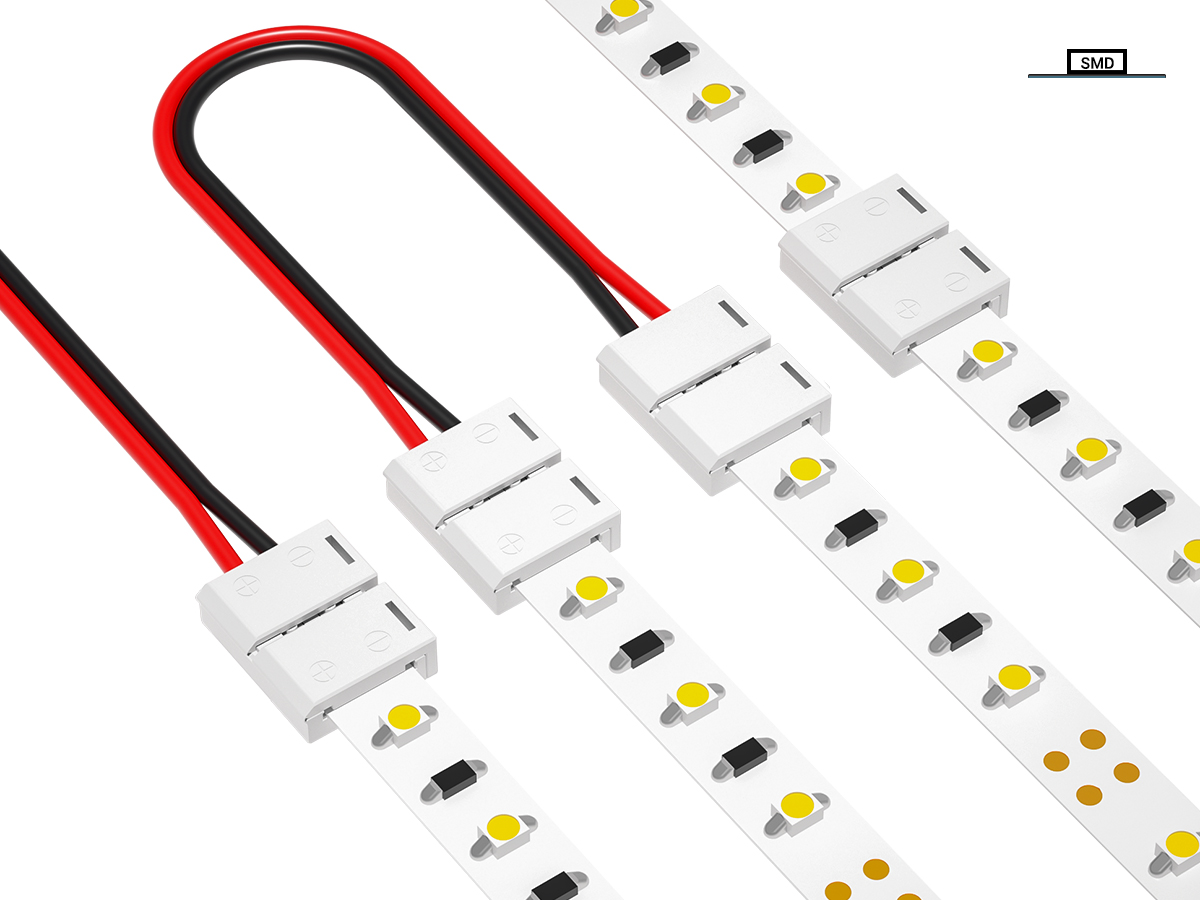

Snap SR	8mm, 10mm, 12mm	IP20	2 Pins, 3 Pins, 4 Pins, 5 Pins, 6 Pins	22~20AWG	Normal size, common style Easy to use
