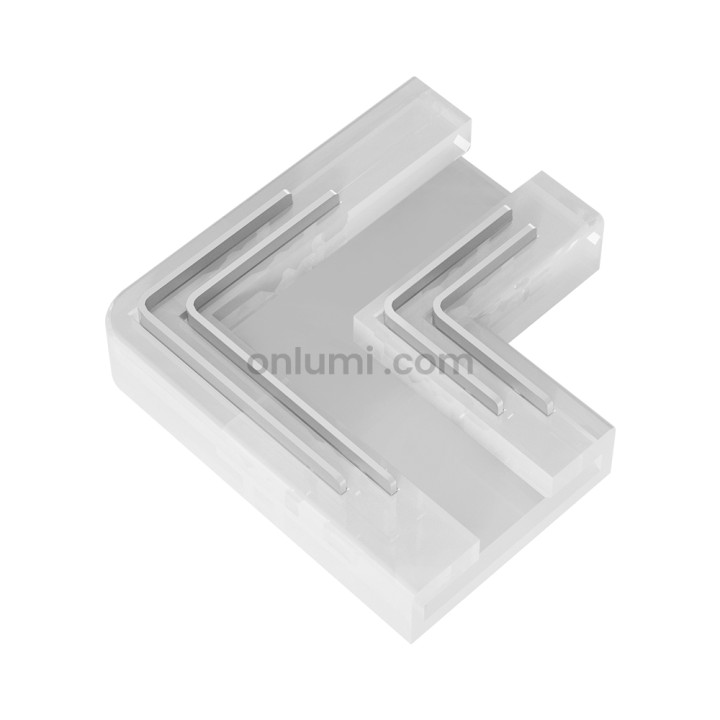

L Shape High Density and COB LED Strip Connector 4 Pins

Customized Option:fully support

Brief Info

  • Gapless Connection
  • Applicable to both SMD and COB
  • Easy to operate
  • Firm connection with pierce-to-contact technology
  • CE, RoHS, EMC, LVD, REACH, UKCA



  • share

Options

Item NO.Width for LED StripPicture
BCI10-L410mm

Technical Data

Item NO.Applicable for all 4-Pins Item
Working VoltageDC5~24V
Max Current4A
Pin NO.4 Pins
Light Strip ColorRGB
PCB Thickness0.25 ~0.35 mm
IP RatingIP20
MaterialPolycarbonate, Copper
Housing ColorTransparent
TEMP. Resistance105℃
Environment TEMP.-10 ~ 45℃

Remark: Though the max current of Pin is 4 A, the actual working current is limited by wire gauge and pcb thickness it work with

How to Use

Certificates

Package Option

Normal BagBoxHanging HeadFace Seal BlisterClamshell Blister
White BoxWhite BoxHanging Head bag package for led strip connectorFace Seal BlisterClamshell Blister
