cob led strip connector 8mm 2 pins for ip20 non-waterproof BCI
cob led strip connector 8mm 2 pins for ip20 non-waterproof BCI

8mm 2 Pin Beetle Clip Invisible for IP20 COB LED Strip

Customization Options:Package, Wire, Adapter and more

Brief Info

  • Types: strip to power, strip to strip bridge,strip to strip joint
  • Applicable Strip:IP20 Non-waterproof
  • Workable PCB Type: Flexible
  • Workable Wire: 20 AWG/0.52 mm2
  • Certificate: CE,RoHS,Reach
  • share

Options

Model NO. Types Connective Position

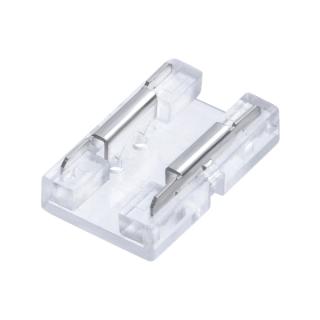

BCI8BB-2 Strip to strip joint for IP20 Between two strips, without wires

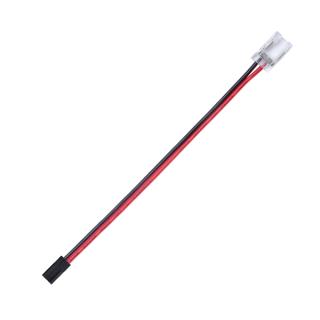

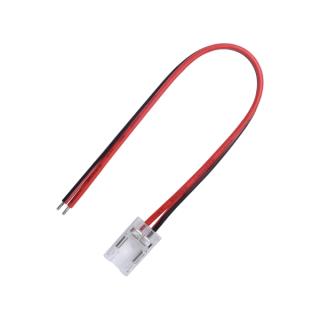

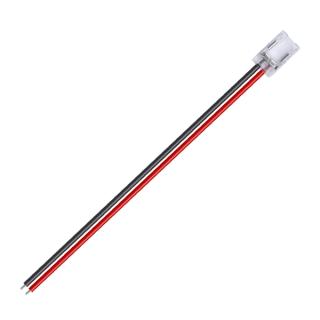

BCI8XB-2W20ABR Strip to Power for IP20 One connector with 150mm  20WG  black-red wire

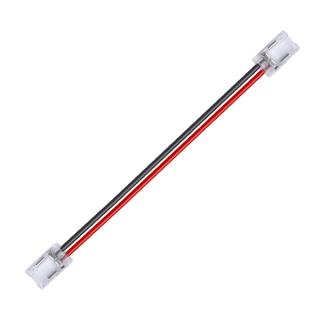

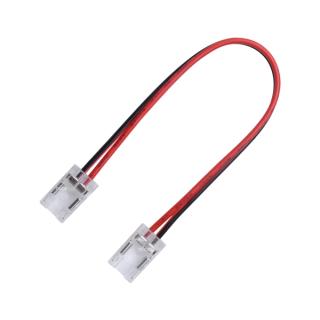

BCI8BXB-2W20ABR Strip to Strip bridge for IP20 Between two connector with 150mm  20AWG  black-red wire

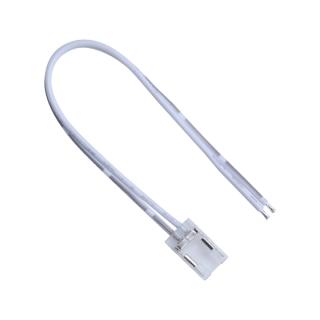

BCI8XB-2W20A Strip to Power for IP20 One connector with 150mm  20WG  white-white wire

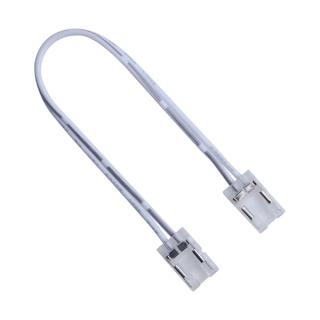

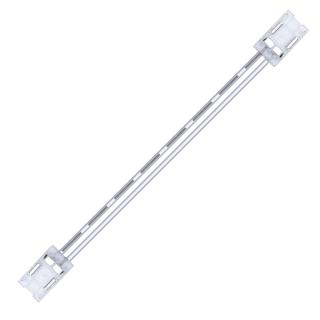

BCI8BXB-2W20A Strip to Strip bridge for IP20 Between two connector with 150mm  20AWG  white-white wire

Technical Data

Part NO. Type Voltage/Current Strip width Pin NO. Size Material Wire Spec Wire Fixed Color
BCI8BB-2 strip to strip DC36/5.5A 8mm 2 pins 15.6*9.6*3.3mm Polycarbonate & Copper / No wire Transparent
BCI8XB-2W-F20ABR strip to power DC36/3.5A 8mm 2 pins 15.6*9.6*3.3mm Polycarbonate & Copper & PVC Black-Red 150mm 20AWG/0.52mm2 With wire Transparent
BCI8BXB-2W-F20ABR strip to strip bridge DC36/3.5A 8mm 2 pins 15.6*9.6*3.3mm Polycarbonate & Copper & PVC Black-Red 150mm 20AWG/0.52mm2 With wire Transparent
BCI8XB-2W strip to power DC36/3.5A 8mm 2 pins 15.6*9.6*3.3mm Polycarbonate & Copper & PVC White-White150mm 20AWG/0.52mm2 With wire Transparent
BCI8BXB-2W strip to strip bridge DC36/3.5A 8mm 2 pins 15.6*9.6*3.3mm Polycarbonate & Copper & PVC White-White150mm 20AWG/0.52mm2 With wire Transparent

Dimensional Drawing

Strip to strip Strip to strip bridge Strip to power

How to use

Strip to strip joint Strip to power Strip to strip bridge



Certificates

Title Language Size Type
BCI AST2009302007-FCC report
English 807kb pdf
BCI AST2009207008-Needle-flame test report
English 518kb pdf
BCI AST2009207007-EC 60068-2-11 Salt spray test report
English 542kb pdf
BCI AST2009203016-ROHS report
English 602kb pdf
BCI AST2009202018EMC-EN 55015 EMC report
English 1038kb pdf
BCI AST2009202018EMC-EMC Certification
English 706kb pdf
BCI AST2009201008LVD-CE-LVD Certification
English 695kb pdf
BCI AST2009201008-EN 60998-2-2 LVD report
English 705kb pdf

8mm 2 Pin Beetle Clip Invisible for IP20 COB LED Strip

Are you looking for an LED strip connector for an IP20 Chip-on-Board LED strip? Onlumi presents a wide range of connectors for IP20 strips. The beetle clip connector series is a powerful and high-quality series of LED strip connectors. You can extend your non-waterproof COB LED strips by joining them and can also connect them to power wires. The beetle clip invisible comes with 2 pin poles and is appropriate for LED strips having a width of 8mm. The connector for strip and power wire comes with two 150mm 20AWG wires in black and red colors. The strip to strip joint connector for IP20 strips comes without wires. The polycarbonate and copper-made beetle clip connector is available in transparent color. The beetle clip connector for IP20 COB LED strips has got certificates from CE, RoHS, and REACH. The certificates are attached here. The quality products of Onlumi are manufactured professionally following certain standards and regulations. Onlumi does not only provide quality and certified products but also ensures their provision at affordable rates. You can get the 8mm 2pin beetle clip connector for IP20 COB LED strips at wholesale price. Get a quote from the supplier to check out the latest price details of this product.

Package Options

Boxes Hanging Head Face Seal Blister Clamshell Blister
