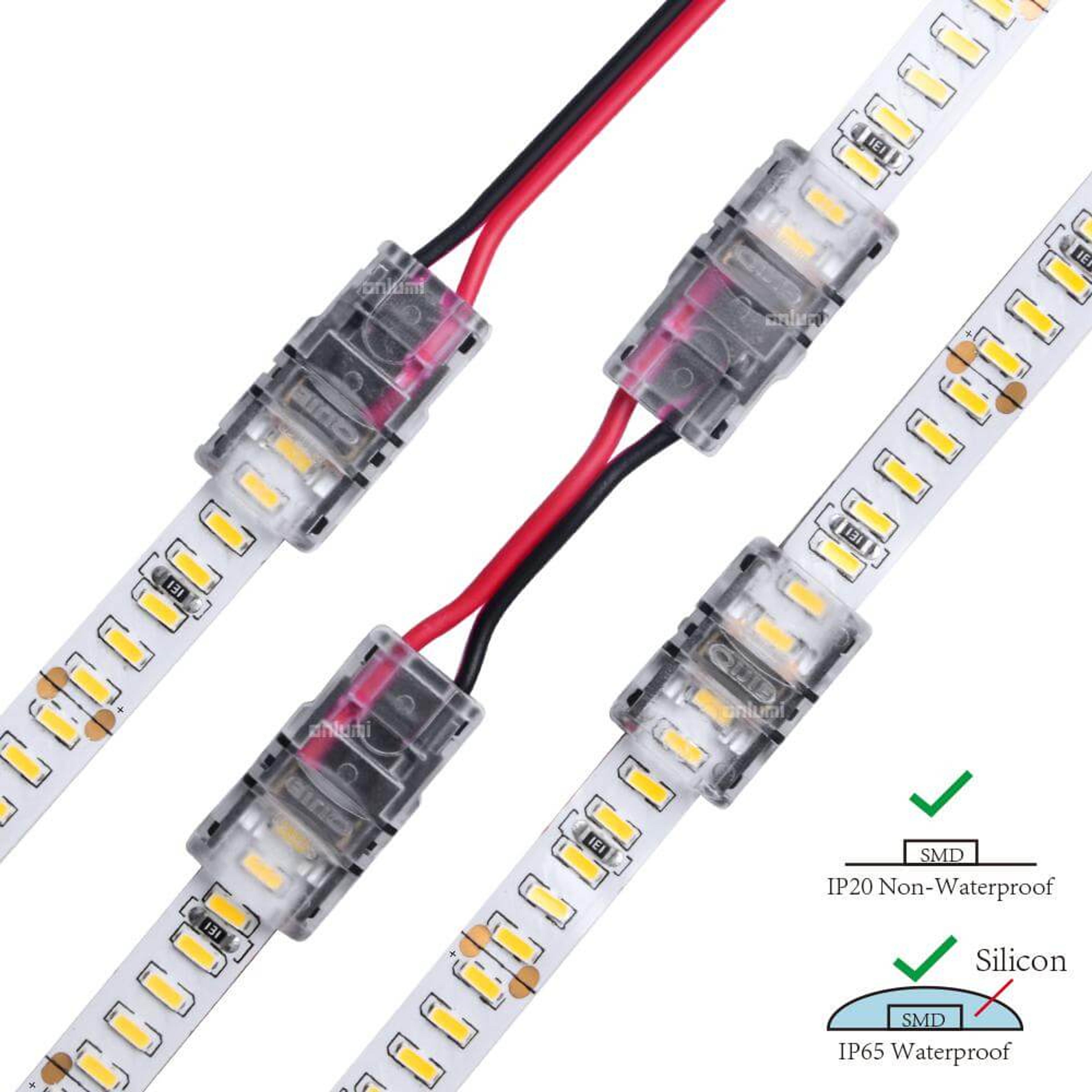

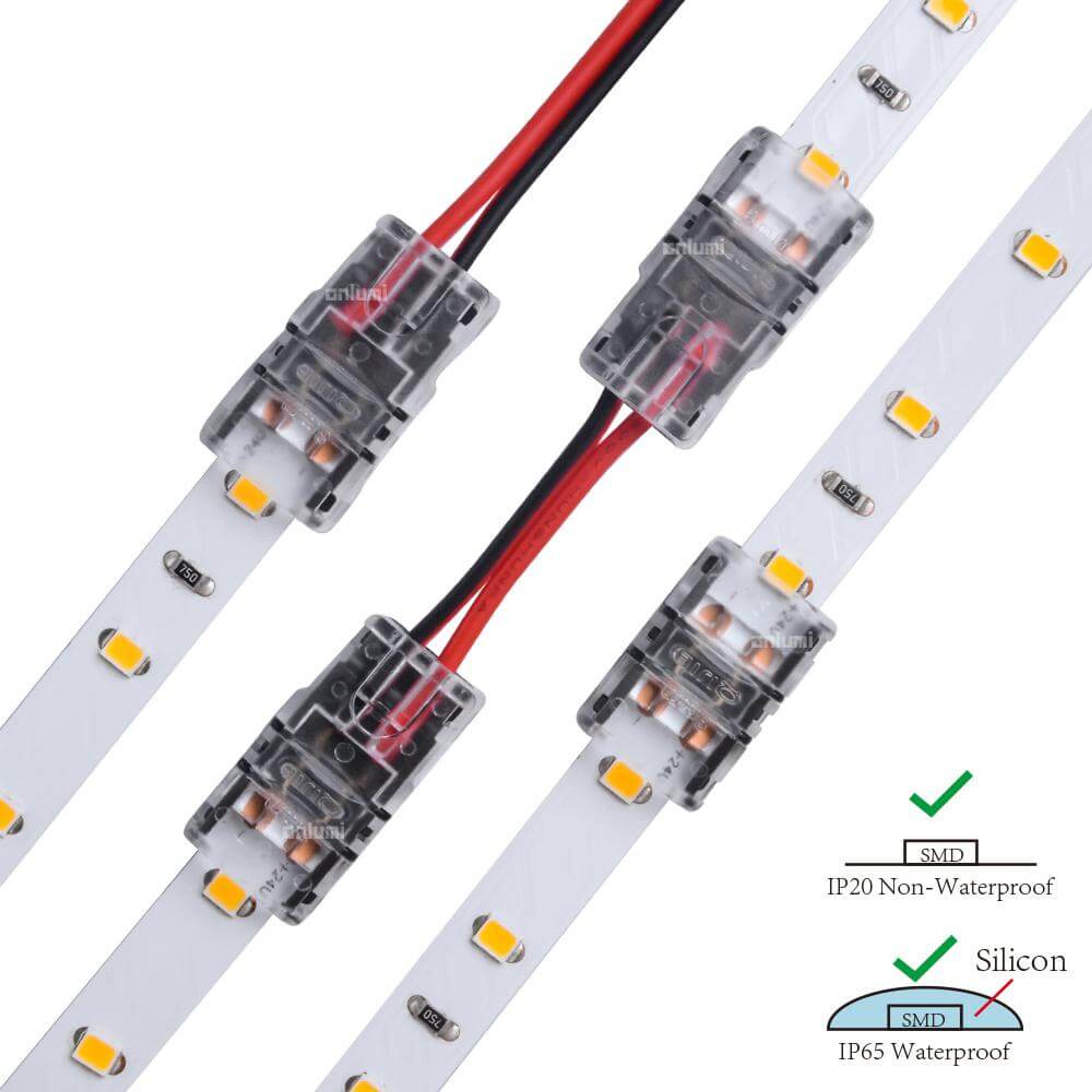

8mm 2 Pin Hippo-M for IP20 IP65 Single Color
8mm 2 Pin Hippo-M for IP20 IP65 Single Color

8mm 2 Pin Hippo-M for IP20 IP65 Single Color

Customization Options:Package, Wire, Adapter and more

Brief Info

  • Types: Strip to wire, Strip to Power, Strip to Strip Joint, Strip to Strip Bridge
  • Applicable Strip: IP20 Non-waterproof / IP54 Singe Side Glue Cover
  • Workable PCB Type: Flexible
  • Workable Wire: 22~20 AWG/0.32~0.52 mm2
  • Certificate: CE,RoHS,Reach
  • share

Options

1. For Non-waterproof

Model NO. Types Connective Position
OL11-SEN8XB-2 Strip to wire for IP20 Between strip and wire
OL11-SEN8BB-2 Strip to strip joint for IP20 Between two strips, without wires
OL11-SEN8XB-2W Strip to Power for IP20 One connector with 150mm 20AWG Black-Red wire
OL11-SEN8BXB-2W Strip to Strip bridge for IP20 Between two connector with 150mm 20AWG Black-Red wire
OL11-WSEN8XB-2 Strip to wire for IP20 Between strip and wire
OL11-WSEN8BB-2 Strip to strip joint for IP20 Between two strips, without wires
OL11-WSEN8XB-2W Strip to Power for IP20 One connector with 150mm 20AWG Black-Red wire
OL11-WSEN8BXB-2W Strip to Strip bridge for IP20 Between two connector with 150mm 20AWG Black-Red wire

1. For Waterproof

Model NO. Types Connective Position
OL11-DJN8XB-2 Strip to wire for IP65 Between strip and wire
OL11-DJN8BB-2 Strip to strip joint for IP65 Between two strips, without wires
OL11-DJN8XB-2W Strip to Power for IP65 One connector with 150mm 20AWG Black-Red wire
OL11-DJN8BXB-2W Strip to Strip bridge for IP65 Between two connector with 150mm 20AWG Black-Red wire



Technical Data

Part Num Type Voltage/Current Strip width Pin NO. Size Material Wire Spec Wire Fixed Color
SEN8XB-2 strip to wire 3~24V/3.5A 8mm 2 Pins 24.3*12.6*7.7mm Polycarbonate & Copper / no wire Black & Transparent
SEN8BB-2 strip to strip joint 3~24V/3.5A 8mm 2 Pins 19.6*12.6*7.7mm Polycarbonate & Copper / no wire Black & Transparent
SEN8XB-2W strip to power 3~24V/3.5A 8mm 2 Pins 24.3*12.6*7.7mm Polycarbonate & Copper & PVC 150mm 20AWG/0.52mm2 with wire Black & Transparent
SEN8BXB-2W strip to strip bridge 3~24V/3.5A 8mm 2 Pins 24.3*12.6*7.7mm Polycarbonate & Copper & PVC 150mm 20AWG/0.52mm2 with wire Black & Transparent
WSEN8XB-2 strip to wire 3~24V/3.5A 8mm 2 Pins 24.3*12.6*7.7mm Polycarbonate & Copper / no wire White & Transparent
WSEN8BB-2 strip to strip joint 3~24V/3.5A 8mm 2 Pins 19.6*12.6*7.7mm Polycarbonate & Copper / no wire White & Transparent
WSEN8XB-2W strip to power 3~24V/3.5A 8mm 2 Pins 24.3*12.6*7.7mm Polycarbonate & Copper & PVC 150mm 20AWG/0.52mm2 with wire White & Transparent
WSEN8BXB-2W strip to strip bridge 3~24V/3.5A 8mm 2 Pins 24.3*12.6*7.7mm Polycarbonate & Copper & PVC 150mm 20AWG/0.52mm2 with wire White & Transparent
DJN8XB-2 strip to wire 3~24V/3.5A 8mm 2 Pins 24.3*12.6*7.7mm Polycarbonate & Copper / no wire Black & Transparent
DJN8BB-2 strip to strip joint 3~24V/3.5A 8mm 2 Pins 19.6*12.6*7.7mm Polycarbonate & Copper / no wire Black & Transparent
DJN8XB-2W strip to power 3~24V/3.5A 8mm 2 Pins 24.3*12.6*7.7mm Polycarbonate & Copper & PVC 150mm 20AWG/0.52mm2 with wire Black & Transparent
DJN8BXB-2W strip to strip bridge 3~24V/3.5A 8mm 2 Pins 24.3*12.6*7.7mm Polycarbonate & Copper & PVC 150mm 20AWG/0.52mm2 with wire Black & Transparent

Strip to Wire

Strip to Strip Joint

How to Use



Certificate

Title Language Size Type
LCS210220025AR-Hippo-M Connector-ROHS 2.0
English 1377kb pdf
LCS210603087AR-Hippo-M LED Strip Connector-REACH 211
English 1498kb pdf

8mm 2 Pin Hippo-M for IP20 IP65

Onlumi’s Hippo-M series of LED strip connectors bring the most versatile connectors having striking designs and affordable prices. This series provides you with connectors applicable to your waterproof and non-waterproof strips. Ranging from 2pin to 6pin, you can find here a vast variety of connectors applicable with 8mm to 12mm strips. Here we have described the 8mm 2pin Hippo-M connector for IP20 non-waterproof and IP65 water-resistant LED strips. You can use this connector to connect an 8mm strip to another LED strip, wire, power, or strip bridge. The connector with wire comes with 150mm 20AWG wire in black and red colors. The strip to strip joint and strip to wire connectors do not have wires. These connectors complete connections without wires. Insert the strip into the connector from one side and insert wires or another strip joint from the other side of the connector. Make sure to put the strip lights on the connector pins. Lock the connector with a plier and your connection is complete. In the same way, you can connect a strip to a power and strip bridge. There are also image tutorials available to let you understand the usage of the 8mm 2pin Hippo-M connector for IP20 and IP65 LED strips.

Package Options

Boxes Hanging Head Face Seal Blister Clamshell Blister
