IP20 L814 Mini Plug 2 Pin - Shenzhen Onlumi Technology Limited IP20 L814 Mini Plug 2 Pin - Shenzhen Onlumi Technology Limited
Home / Products / LED Light Strip Connector / Snap DJ / IP20 L814 Mini Plug 2 Pin
IP20 L814 Mini Plug 2 Pin
IP20 L814 Mini Plug 2 Pin

IP20 L814 Mini Plug 2 Pin

Customization Options:Package, Wire, Adapter and more

Brief Info

  • Types: Strip to Power, Strip to Strip Joint, Strip to Strip Bridge
  • Applicable Strip: IP54 Singe Side Glue Cover
  • Workable PCB Type: Flexible
  • Workable Wire: 22AWG/0.32mm2
  • Certificate: CE,RoHS,Reach
  • share

Options

Model NO. Types Connective Position

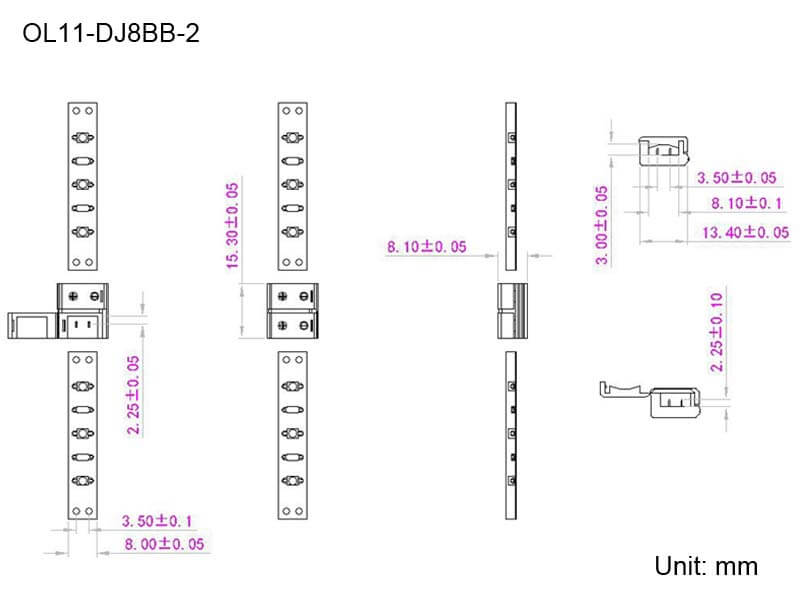

OL11-DJ8BB-2 Strip to strip joint for IP65 Between two strips, without wires
OL11-DJ8XB-2 Strip to Power for IP65 One connector with 150mm 22AWG wire
OL11-DJ8BXB-2 Strip to Strip bridge for IP65 Between two connector with 150mm 22AWG wire

Technical Data

Part Num Type Voltage/Current Strip width Pin NO. Size Material Wire Spec Wire Fixed Color
DJ8BB-2 strip to strip joint 3~24V/5A 8mm 2 Pins 15.3*13.4*8.1mm Nylon(PA66), copper / no wire White
DJ8XB-2W strip to power 3~24V/4A 8mm 2 Pins 15.3*13.4*8.1mm Nylon(PA66), copper , PVC 150mm 22AWG/0.32mm2 with wire White
DJ8BXB-2W strip to strip bridge 3~24V/4A 8mm 2 Pins 15.3*13.4*8.1mm Nylon(PA66), copper , PVC 150mm 22AWG/0.32mm2 with wire White

Strip to Power

Strip to Strip Joint

How to Use

IP20 L814 Mini Plug 2 Pin

The DJ series of LED strip connectors has a vast variety of high-density and cost-effective connectors for waterproof strips with an IP rating of 54 and 65. These connectors let you extend or reduce the length of your LED strips without effort. You can find here a 2pin DJ connector for soldering strip to power, strip to strip joint, and strip to strip bridge. These 8mm connectors support 150mm 22AWG wires. The wires and the adapter used with these connectors are customizable. The nylon and copper-made connectors are available in white color. Like other products of Onlumi, this DJ connector also has the marking of CE, RoHS, and REACH.

Check out the entire collection of LED strip connectors to find out an appropriate connector for your LED strip. In this regard, you can seek assistance from our professionals as well. Onlumi helps its customers in finding out compatible products or connectors for their LED strips. We also provide technical assistance in the development of your LED strip lights. Moreover, the business buyers can get the advantage of the product catalog by downloading the photos and videos. Check out the latest wholesale price of the product and place your order.

Package Options

Boxes Hanging Head Face Seal Blister Clamshell Blister
