COB led strip connector 12mm 4 pin
COB led strip connector 12mm 4 pin

12mm 4 Pin for IP20 RGB COB LED Strip

Customizable Options:Package, Wire, and more

Brief Info

  • Connection Types: Strip to power, Strip to strip joint and Strip to strip bridge
  • Applicable Strip IP Rating: IP20 Non-waterproof
  • Workable PCB Type: Flexible
  • Workable Wire: 20 AWG/0.52 mm2~18AWG/0.78
  • Certificate: CE,RoHS,Reach
  • share

Options

Item NO.Connection TypesWire SpecWorking Voltage /Current
BCI12BB-4Strip to Strip JointNo WireDC3~24V / 5.5A (Depend on PCB)
BCI12BXB-4W-F20ABKGRB150Strip to Strip BridgePVC 20AWG / 0.52mm²DC3~24V / 3.5A (Depend on PCB)
BCI12XB-4W-F20ABKGRB150Strip to PowerPVC 20AWG / 0.52mm²DC3~24V / 3.5A (Depend on PCB)
BCI12BXB-4W-T18ABKGRB-150Strip to Strip BridgeTeflon 18AWG / 0.78mm²DC3~24V / 4.5A (Depend on PCB)
BCI12XB-4W-T18ABKGRB-150Strip to PowerTeflon 18AWG / 0.78mm²DC3~24V / 4.5A (Depend on PCB)

Technical Data

Item NO.Applicable to all item NO.
Housing Size15.6*13.6*3.3mm
Housing MaterialPolycarbonate
Pin Quantity4 Pins
LED Strip Width12 mm
Default Wire Length (if have)150 mm or Customized
Wire Color Order(if have)Black-Green-Red-Blue
LED Strip IP RatingIP20 Non-waterproof

How to use

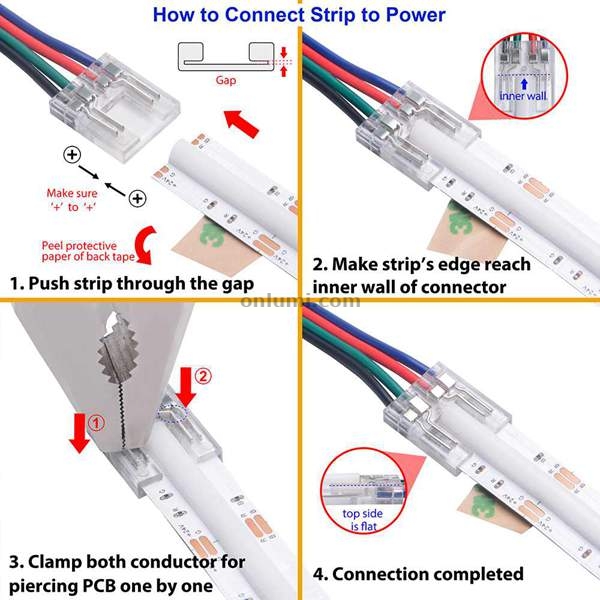

Strip to Power and Strip to Strip Bridge
