10mm /12mm 4 Pin Hippo-m Tube for IP67

Customization Options:Package, Wire, Adapter and more

Brief Info



  • Types: Strip to wire, Strip to Strip Joint,Strip to power,strip to bridge
  • Applicable Strip: IP66/67 Hollow Tube
  • Workable PCB Type: Flexible
  • Workable Wire: 22~20 AWG/0.32~0.52 mm2
  • Certificate: CE,RoHS,Reach
  • share

Options

Model NO. Types Connective Position
FSN10XB-4 Strip to wire for IP67 Between strip and wire
FSN10BB-4 Strip to strip joint for IP67 Between two strips, without wires
FSN10XB-4W Strip to Power for IP67 One connector with 150mm 20AWG wire
FSN10BXB-4W Strip to Strip bridge for IP67 Between two connector with 150mm 20AWG wire

Technical Data

Part NO. Type Voltage/Current Strip width Pin NO. Size Material Wire Spec Wire Fixed Color
FSN10BB-4 strip to strip  joint 3~24V/5A 10mm 4 Pins 27*17*7mm Polycarbonate & Copper / no wire Transparent
FSN10XB-4 strip to wire 3~24V/5A 10mm 4 Pins 26*17*7mm Polycarbonate & Copper & PVC / with wire Transparent
FSN10XB-4W strip to power 3~24V/3.5A 10mm 4 Pins 26*17*7mm Polycarbonate & Copper & PVC 150mm 20AWG/0.52mm2 with wire Transparent
FSN10BXB-4W strip to strip bridge 3~24V/3.5A 10mm 4 Pins 26*17*7mm Polycarbonate & Copper & PVC 150mm 20AWG/0.52mm2 with wire Transparent
Strip to power/Strip to strip bridge  Strip to strip  joint

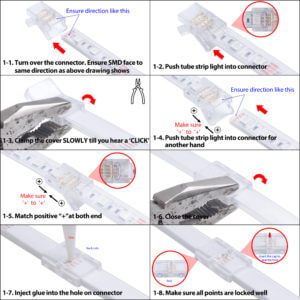

How to use

Strip to power/Strip to strip bridge  Strip to strip  joint



Certificates

Title Language Size Type
AST1903202003EMCHiPP-M EMC
English 748kb pdf
AST1903203005ROHSHiPP-M ROHS
English 1005kb pdf
AST1903302002FCC-HiPP-M FCC-SDOC
English 861kb pdf

10mm /12mm 4 Pin Hippo-m Tube for IP67

Onlumi brings another versatile LED strip connector for waterproof LED strips having an IP rating of 67. The 4pin Hippo-M Tube connector is applicable with 10mm and 12mm IP67 waterproof strips. The tube connectors include strip to wire, strip to strip joint, strip to wire, and strip to strip bridge connectors. It is applicable with hollow tube IP66 or IP67 strips. The strip to power and strip to bridge connector come with 150mm 20AWG wires in blue, red, green, and black color. The wire has PVC insulation and the connector has polycarbonate and copper manufacturing. The tube connector is available in transparent color. It is very simple to create a connection with the help of a Hippo-M tube connector. Insert the strip into the connector from one side and insert power wires from the other side. Lock the connector and your connection is complete. To connect two LED strips, peel the covering paper of the strips and insert them into the connector from opposite sides. Lock the connector to complete the connection.  The Hippo-M Tube connectors have got certifications from CE, RoHS, and REACH. The quality product is available at wholesale price. Get a quote from the supplier to find out the latest price of this product.

Package Options

Boxes Hanging Head Face Seal Blister Clamshell Blister
