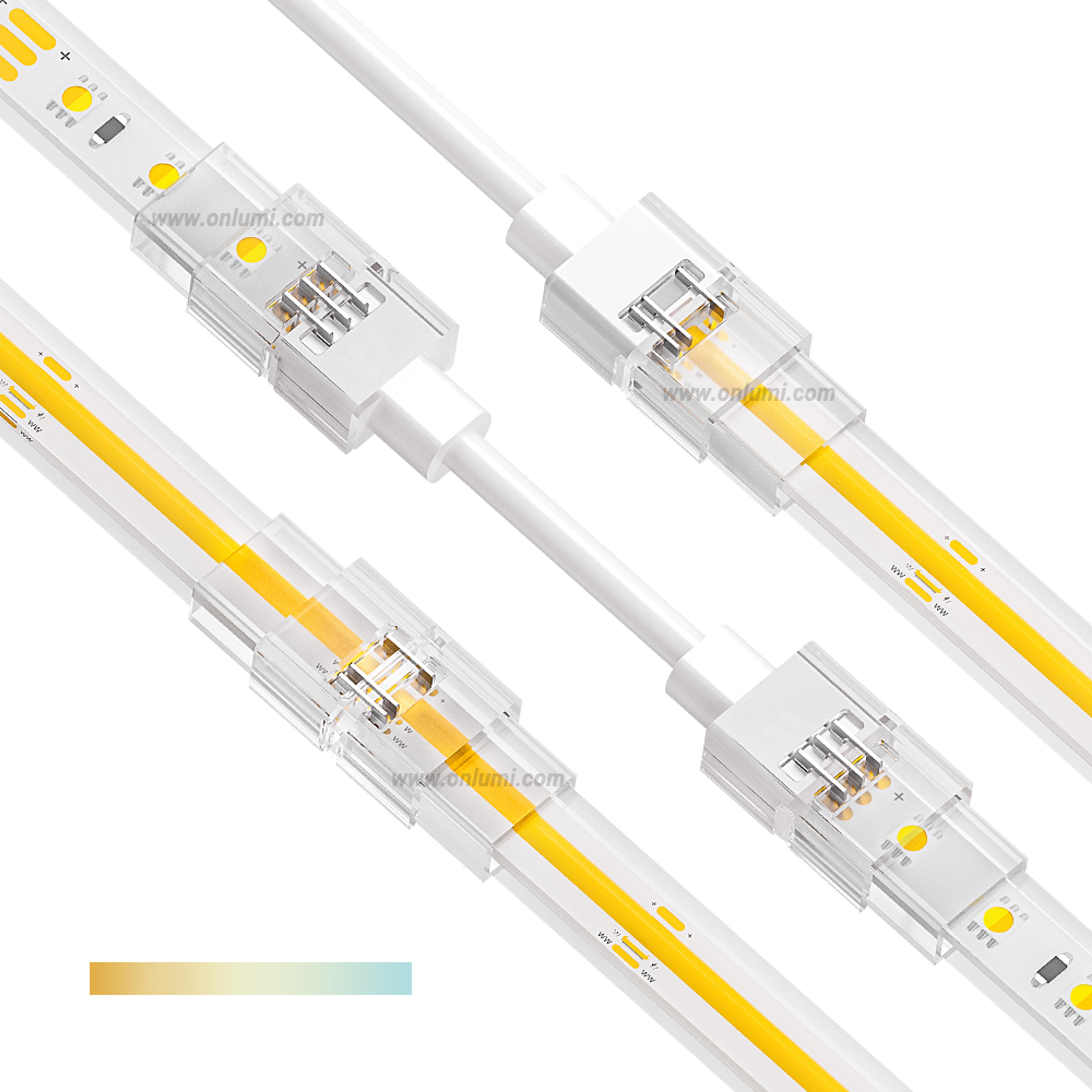

10mm/12mm 3 Pin Hippo-m Solid for IP68

Customization OptionsPackage, Wire, Adapter and more

Brief Info

  • Types: Strip to Strip Joint,strip to power,strip to strip bridge
  • Applicable Strip:  IP68 Solid Tube
  • Workable PCB Type: Flexible
  • Workable Wire: 22 AWG/0.32 mm2
  • Certificate: CE,RoHS,Reach
  • share

Options

Model NO. Types Connective Position
SDN10BB-3 Strip to strip joint for IP68 Between strip and wire
SDN10XB-3W200 Strip to Power for IP68 One connector with 200mm 22AWG wire
SDN10BXB-3W200 Strip to Strip bridge for IP68 Between two connector with 200mm 22AWG wire
SDN10XB-3W500 Strip to Power for IP68 One connector with 500mm 22AWG wire
SDN10BXB-3W500 Strip to Strip bridge for IP68 Between two connector with 500mm 22AWG wire
SDN10XB-3W1000 Strip to Power for IP68 One connector with 1000mm 22AWG wire
SDN10BXB-3W1000 Strip to Strip bridge for IP68 Between two connector with 1000mm 22AWG wire

Technical Data

Part NO. Type Voltage/Current Strip width Pin NO. Size Material Wire Spec Wire Fixed Color
SDN10BB-3 strip to strip Joint 3~24V/5A 10mm 3 Pins 40*17.5*8.5mm Policarbonate, ABS / no wire Transparent&White
SDN10XB-3W200 strip to power 3~24V/3.5A 10mm 3 Pins 28*17.5*8.5mm Policarbonate, ABS, PVC / with wire Transparent&White
SDN10BXB-3W200 strip to strip bridge 3~24V/3.5A 10mm 3 Pins 28*17.5*8.5mm Policarbonate, ABS, PVC 200mm 20AWG/0.52mm2 with wire Transparent&White
SDN10XB-3W500 strip to power 3~24V/3.5A 10mm 3 Pins 28*17.5*8.5mm Policarbonate, ABS, PVC 200mm 20AWG/0.52mm2 with wire Transparent&White
SDN10BXB-3W500 strip to strip bridge 3~24V/3.5A 10mm 3 Pins 28*17.5*8.5mm Policarbonate, ABS, PVC 500mm 20AWG/0.52mm2 with wire Transparent&White
SDN10XB-3W1000 strip to power 3~24V/3.5A 10mm 3 Pins 28*17.5*8.5mm Policarbonate, ABS, PVC 500mm 20AWG/0.52mm2 with wire Transparent&White
SDN10BXB-3W1000 strip to strip bridge 3~24V/3.5A 10mm 3 Pins 28*17.5*8.5mm Policarbonate, ABS, PVC 1000mm 20AWG/0.52mm2 with wire Transparent&White

How to use

Certificates

Title Language Size Type
AST1911202013EMC Hippo-M Solid CE-EMC Certification
English 353kb pdf
AST1911203002RoHS Hippo-M Solid CE-ROHS Certification
English 367kb pdf
AST1911201005LVD-Hippo-M Solid CE-LVD Certification
English 347kb pdf

Package Options

Boxes Hanging Head Face Seal Blister Clamshell Blister
