SM to LED Strip

Minimum Order Quantity:10pcs

Brief Info

  • Allow user to attach 2 conductor wire according project requirement (Wire Color, Cross Section, length,etc).
  • No need stripping wire insulation when splicing flat ribbon cable
  • No need remove surface coating layer of waterproof strip light
  • Good for high density light LED strip,clear cover won’t mask light of first LED.
  • Gripping LED strip very firmly
  • share

Options

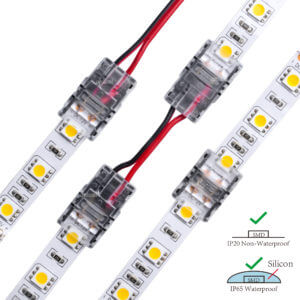

8mm 3528 LED Strip Connectors is designed for single color light LED strip such as SMD3528, SMD3014, SMD2835,SMD2016,etc. The workable LED density is from 30LEDs to 120LEDs per meter for both waterproof and non-waterproof tape light. IDC technology make it possible to connect strip light with red / blue VHB foam tape on the back. Coming out as terminal without wire, users can DIY not just board to wire as lead connection purples but also board to board jumper with wire in middle.

1. For Non-waterproof

Model NO. Types Connective Position
OL11-SEN8XB-2 Strip to wire for IP20 Between strip and wire
OL11-SEN8BB-2 Strip to strip joint for IP20 Between two strips, without wires

2. For Waterproof

Model NO. Types Connective Position
OL11-DJN8XB-2 Strip to wire for IP65/54 Between strip and wire
OL11-DJN8BB-2 Strip to strip joint for IP65/54 Between two strips, without wires



Technical Specs

Workable LED strip

  • LED Types: SMD2835, SMD3528, SMD3014, SMD2216
  • LED Quantity Supported: 30~120 LEDs/Meter

All LED strips listed above are Single Color, Non-waterproof with 2 Soldering Pads on 8mm wide FPCB

Item Name
Hippo-M for Single Color 8mm
Item NO. OL11-SEN8XB-2 OL11-DJN8XB-2 OL11-SEN8BB-2 OL11-DJN8BB-2
Strip Light Protection IP20 IP65/IP54 IP20 IP65/54
Types Strip to wire Strip to strip joint
Workable Wire Cross Sectional Area 0.34~0.75 mm² /
Workable Wire Gauge 22 ~18 AWG /
Workable Wire OD Max 2.1 mm /
Polarity QTY 2
Pin Pitch 3.6mm
Way of Contact insulation-piercing contact
Working Voltage DC3V~24V
Rated Current 5A
Housing Color (cap/base) Transparent / Black
Min.LED Strip Thickness >0.2mm
Housing Material PC
Pin Material Phosphor Copper (Cu)
Flame Retardant Level UL94v-0

How to use

Certificate

Title Language Size Type
Operations Guide
English 328kb pdf
Product Size
English 260kb pdf

SM to LED Strip

Onlumi is a trusted and leading supplier of lighting accessories having an extensive catalog of LED strips, LED strip connectors, wire splicing connectors, power supply units, and fixing solutions for wires and cables. You can find here a vast variety of LED light strip connectors varying in designs, material, pins, LED density, strip width, strip protection, and link type. Moreover, you can find here an SM to LED strip connector that is designed for high-density waterproof and non-waterproof LED light strips. This connector lets you join 2 conductor wires according to the project requirement. This is applicable with single color LED strips having 30 to 120 LEDs per meter. This connector is available for both waterproof and non-waterproof strips having IP20, IP54, and IP65 ratings. The link type is LED strip to wire and LED strip to strip joint. The workable wire with this connector is 22 to 18AWG. This connector consists of a PC base and copper pins. It is available in transparent or black color. The flame retardant level of this LED strip connector is UL94v-0. The minimum order quantity for SM to LED strip is 10 pieces. You can download the operations guide t understand the usage of this LED strip connector.
