12mm 5 Pin Hippo-M for IP20 IP65 RGBW
12mm 5 Pin Hippo-M for IP20 IP65 RGBW

12mm 5 Pin Hippo-M for IP20 IP65 RGBW

Customization Options:Package, Wire, Adapter and more

Brief Info

  • Types: Strip to Wire, Strip to Power, Strip to Strip Joint, Strip to Strip Bridge
  • Applicable Strip: IP20 Non-waterproof / IP54 Singe Side Glue Cover
  • Workable PCB Type: Flexible
  • Workable Wire: 22AWG/0.52 mm2
  • Certificate: CE, RoHS, Reach
  • share

Options

1. For Non-waterproof

Item NO.TypesConnective Position
SEN12XB-5Strip to wire for IP20Between strip and wire
SEN12BB-5Strip to strip joint for IP20Between two strips, without wires
SEN12XB-5WStrip to Power for IP20One connector with 150mm 22AWG wire
SEN12BXB-5WStrip to Strip bridge for IP20Between two connector with 150mm 22AWG wire

2. For Waterproof

Item NO.TypesConnective Position
DJN12XB-5Strip to wire for IP65Between strip and wire
DJN12BB-5Strip to strip joint for IP65Between two strips, without wires
DJN12XB-5WStrip to Power for IP65One connector with 150mm 22AWG wire
DJN12BXB-5WStrip to Strip bridge for IP65Between two connector with 150mm 22AWG wire



Technical Data

Part Num Type Voltage/Current Strip width Pin NO. Size Material Wire Spec Wire Fixed Color
SEN12XB-5 Strip to Wire 3~24V/3.5A 12mm 5 Pins 24.3*17*7.7mm Polycarbonate & Copper / No wire Black & Transparent
SEN12BB-5 Strip to Strip Joint 3~24V/3.5A 12mm 5 Pins 19.6*17*7.7mm Polycarbonate & Copper / No wire Black & Transparent
SEN12XB-5W Strip to Power 3~24V/3.5A 12mm 5 Pins 24.3*17*7.7mm Polycarbonate & Copper & PVC 150mm 22AWG/0.32mm2 With wire Black & Transparent
SEN12BXB-5W Strip to Strip Bridge 3~24V/3.5A 12mm 5 Pins 24.3*17*7.7mm Polycarbonate & Copper & PVC 150mm 22AWG/0.32mm2 With wire Black & Transparent
DJN12XB-5 Strip to Wire 3~24V/3.5A 12mm 5 Pins 24.3*17*7.7mm Polycarbonate & Copper / No wire Black & Transparent
DJN12BB-5 Strip to Strip Joint 3~24V/3.5A 12mm 5 Pins 19.6*17*7.7mm Polycarbonate & Copper / No wire Black & Transparent
DJN12XB-5W Strip to Power 3~24V/3.5A 12mm 5 Pins 24.3*17*7.7mm Polycarbonate & Copper & PVC 150mm 22AWG/0.32mm2 With wire Black & Transparent
DJN12BXB-5W Strip to Strip Bridge 3~24V/3.5A 12mm 5 Pins 24.3*17*7.7mm Polycarbonate & Copper & PVC 150mm 22AWG/0.32mm2 With wire Black & Transparent

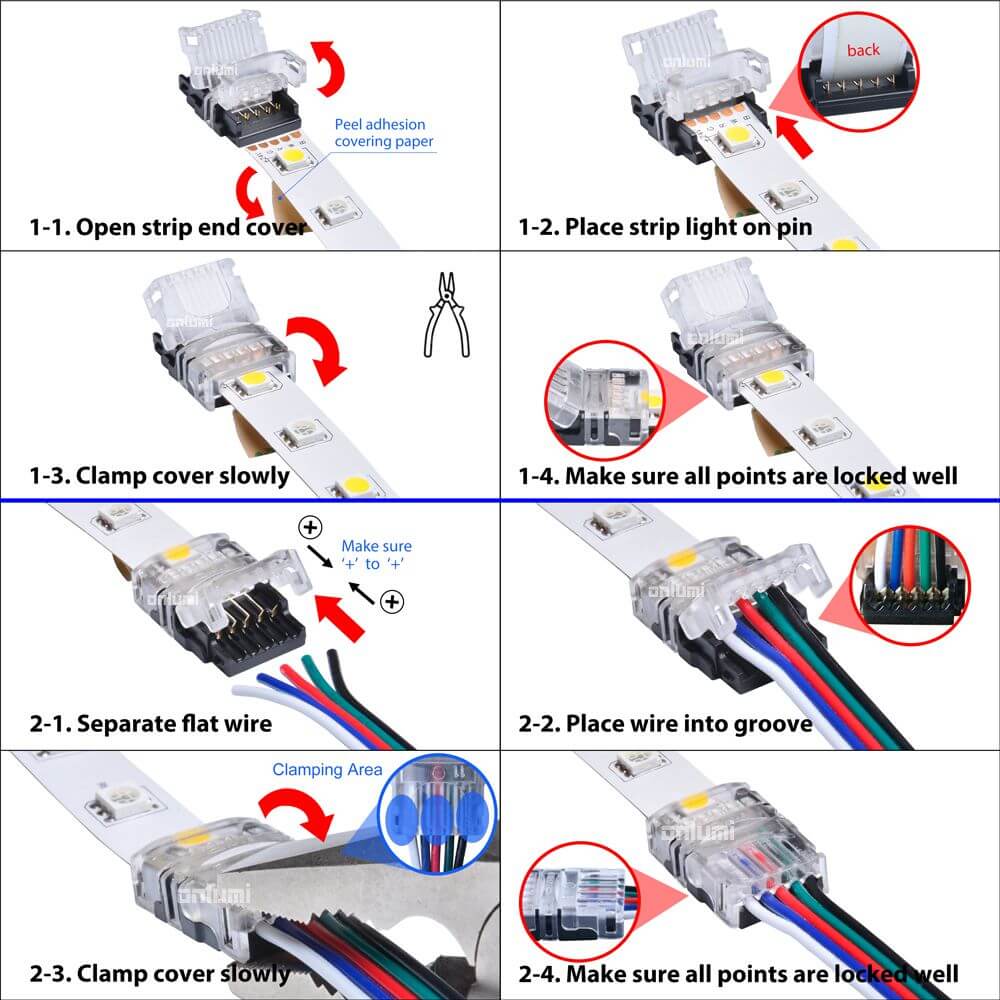

Strip to Wire

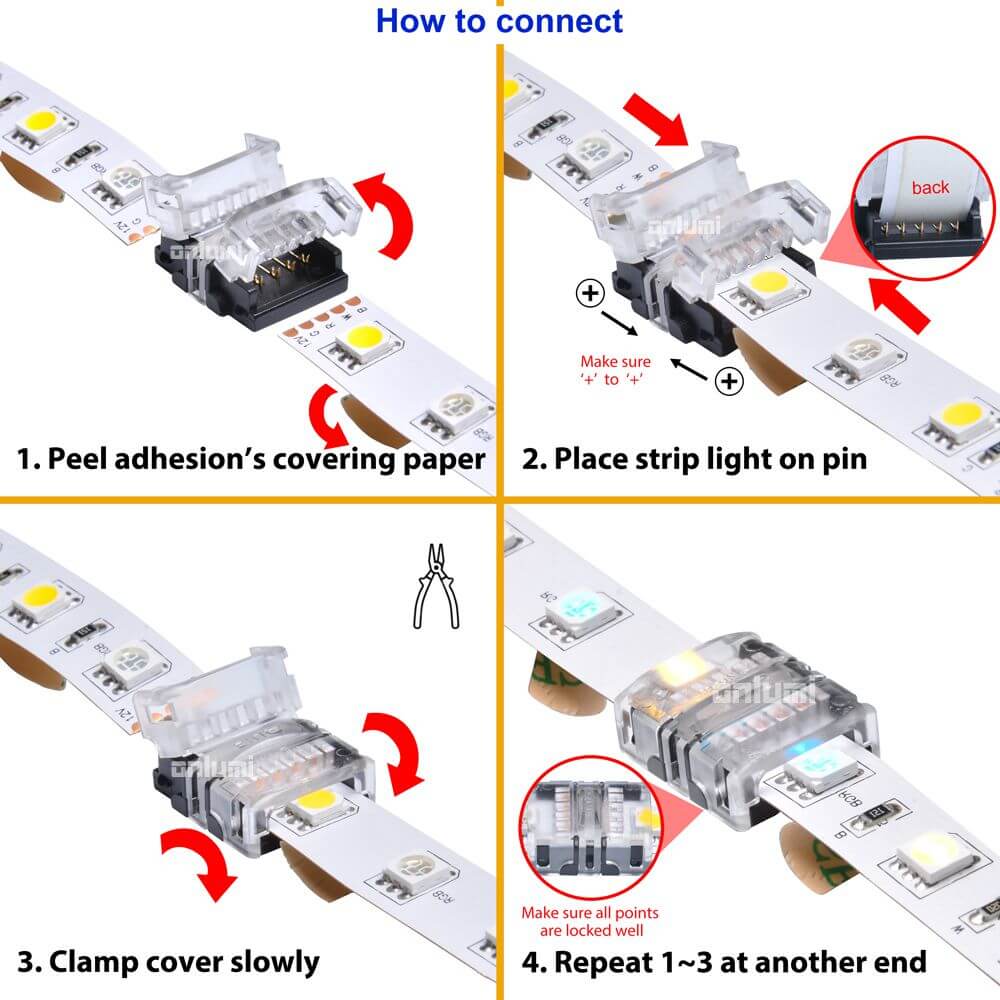

Strip to Strip Joint

How to Use

Certificates

Title Language Size Type
LCS210220025AR-Hippo-M Connector-ROHS 2.0
English 1377kb pdf
LCS210603087AR-Hippo-M LED Strip Connector-REACH 211
English 1498kb pdf

Package Options

Normal BagBoxHanging HeadFace Seal BlisterClamshell Blister
White BoxWhite BoxHanging Head bag package for led strip connectorFace Seal BlisterClamshell Blister
