10mm 5 Pin Hippo-M X for IP20 IP65

Customization Options:Package, Wire, Adapter and more

Brief Info

  • Types: Strip to wire, Strip to Power, Strip to Strip Joint, Strip to Strip Bridge
  • Applicable Strip: IP20 Non-waterproof / IP54 Singe Side Glue Cover
  • Workable PCB Type: Flexible
  • Workable Wire: 22AWG/0.32mm2
  • Certificate: CE,RoHS,Reach
  • share

Options

1. For Non-waterproof

Model NO. Types Connective Position
WHM20-10XB-5 Strip to wire for IP20 Between strip and wire
WHM20-10BB-5 Strip to strip joint for IP20 Between two strips, without wires
WHM20-10XB-5W Strip to Power for IP20 One connector with 150mm 22AWG wire
WHM20-10BXB-5W Strip to Strip bridge for IP20 Between two connector with 150mm 22AWG wire

2. For Waterproof

Model NO. Types Connective Position
WHM65-10XB-5 Strip to wire for IP65 Between strip and wire
WHM65-10BB-5 Strip to strip joint for IP65 Between two strips, without wires
WHM65-10XB-5W Strip to Power for IP65 One connector with 150mm 22AWG wire
WHM65-10BXB-5W Strip to Strip bridge for IP65 Between two connector with 150mm 22AWGwire

Technical Specs

Part Num Type Voltage/Current Strip width Pin NO. Size Material Wire Spec Wire Fixed Color
WHM20-10XB-5 strip to wire 3~24V/3.5A 10mm 5 Pins 22*13.6*7mm Polycarbonate & Copper / no wire White & Transparent
WHM20-10BB-5 strip to strip joint 3~24V/5A 10mm 5 Pins 18.2*13.6*5.6mm Polycarbonate & Copper / no wire White & Transparent
WHM20-10XB-5W strip to power 3~24V/3.5A 10mm 5 Pins 22*13.6*7mm Polycarbonate & Copper & PVC 150mm 22AWG/0.32mm2 with wire White & Transparent
WHM20-10BXB-5W strip to strip bridge 3~24V/3.5A 10mm 5 Pins 22*13.6*7mm Polycarbonate & Copper & PVC 150mm 22AWG/0.32mm2 with wire White & Transparent
WHM65-10XB-5 strip to wire 3~24V/3.5A 10mm 5 Pins 22*13.6*7mm Polycarbonate & Copper / no wire Black & Transparent
WHM65-10BB-5 strip to strip joint 3~24V/5A 10mm 5 Pins 18.2*13.6*5.6mm Polycarbonate & Copper / no wire Black & Transparent
WHM65-10XB-5W strip to power 3~24V/3.5A 10mm 5 Pins 22*13.6*7mm Polycarbonate & Copper & PVC 150mm 22AWG/0.32mm2 with wire Black & Transparent
WHM65-10BXB-5W strip to strip bridge 3~24V/3.5A 10mm 5 Pins 22*13.6*7mm Polycarbonate & Copper & PVC 150mm 22AWG/0.32mm2 with wire Black & Transparent

How to Use



Strip to Wire Strip to Strip Joint

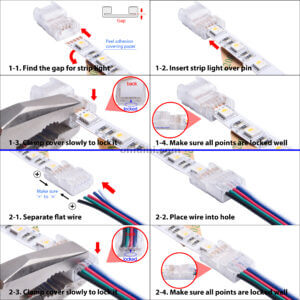

hippo-m x 10mm 5 pin strip to wire how to connect
hippo-m x 10mm 5 pin strip to wire how to connect

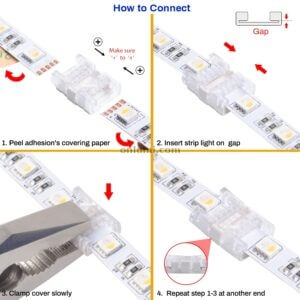

hippo-m x 10mm 5 pin strip to strip joint how to connect
hippo-m x 10mm 5 pin strip to strip joint how to connect

Certificates

Title Language Size Type
LCS210603087AR-Hippo-M LED Strip Connector-REACH 211
English 1498kb pdf
LCS210220025AR-Hippo-M Connector-ROHS 2.0
English 1377kb pdf

Package Options

Boxes Hanging Head Face Seal Blister Clamshell Blister
