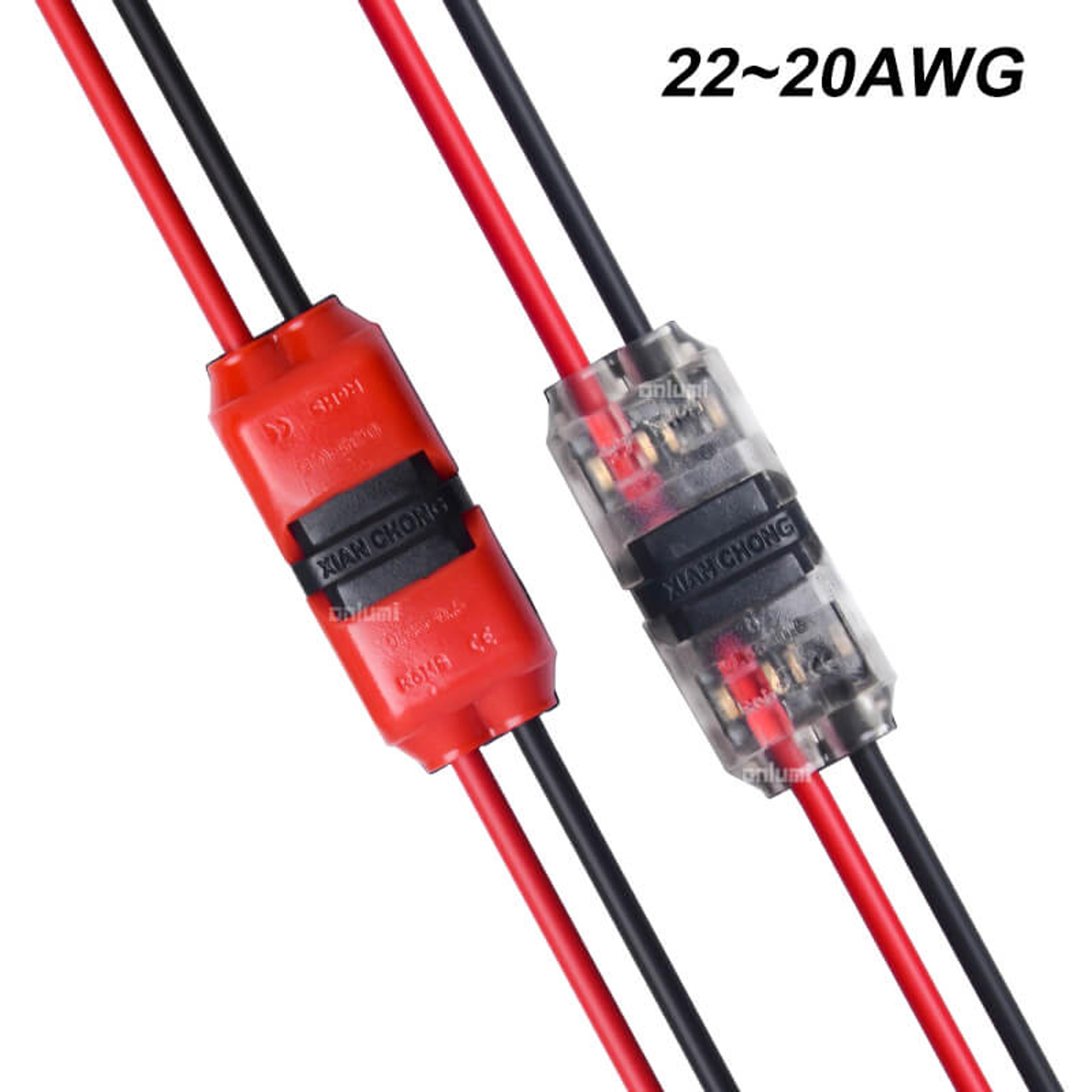

wire joint 2 Pin I shape 22~20 AWG
wire joint 2 Pin I shape 22~20 AWG

2 Pin I shape 22~20 AWG

Customization Options:Package, Wire, Adapter and more

Brief Info

  • IP Rating: IP40
  • Wire Type: Strand & Solid
  • Contact Method: Insulation Displacement Connectors
  • Flame Retardant Rating: UL94v-1
  • Voltage & Current: 300V / 9A(Max Pin Can Bear)
  • Certification: CE, RoHs
  • share

Technical Specs

Item NO. Type Pin QTY. Workable Wire Voltage & Current Dimension Color Material IP Rating
WJ-I-2C I shape 2 wire 2 Pins 22~20 AWG / 0.34~0.54 mm² 300V / 9A (Max Pin Can Bear) 25*10.4*6.7mm Clear+Black PC & Copper IP40
WJ-I-2R I shape 2 wire 2 Pins 22~20 AWG / 0.34~0.54 mm² 300V / 9A (Max Pin Can Bear) 25*10.4*6.7mm Red+Black PC & Copper IP40

How to use

Certifications

Title Language Size Type
LCS191212061AS-wire connectors-LVD
English 1388kb pdf
LCS191212061AS-Wire connectors-EN 60998 report
English 2446kb pdf
LCS191212060AR--Wire connectors--ROHS 2.0
English 1645kb pdf

2 Pin I shape 22~20 AWG

Are you searching for a wire splicing connector? Onlumi brings a wide range of wire splicing connectors including DC terminal connectors and IDC wire joint connectors. You can find here a vast variety of connectors to join wires in different shapes or extend them into different directions. The I shape wire joint has two pins. It is applicable with 22-20AWG solid and strand wires. These connectors use the insulation displacement method to make a connection. The connector has an IP rating of 40. The voltage or current capacity of this connector is 300V/9A. The PC and copper-made wire splicing 2pin connector is available in a combination of transparent and black and red and black colors. It is a reasonably priced product that you can purchase at wholesale price. Check out the entire selection of wire splicing connectors to find out an appropriate connector for joining wires. If you are reluctant, let the supplier help you in finding out a compatible product for your device. The professionals at Onlumi perform free compatibility tests to help customers in finding out their required product. Once you find a suitable wire joint connector for your wires, place an order to get the delivery of this product at an affordable price.

Package Options

Boxes Face Seal Blister Hanging Head Clamshell Blister
