Home > Wire Splicing Connector > IDC Wire Joint > 1 Pin T shape 22~18 AWG
wire joint 1 Pin T shape 22~18 AWG
wire joint 1 Pin T shape 22~18 AWG

1 Pin T shape 22~18 AWG

Customization Options:Package, Wire, Adapter and more

Brief Info

  • IP Rating: IP40
  • Wire Type: Strand & Solid
  • Contact Method: Insulation Displacement Connectors
  • Flame Retardant Rating: UL94v-1
  • Voltage & Current: 300V / 9A(Max Pin Can Bear)
  • Certification: CE, RoHs
  • share

Technical Specs

Item NO. Type Pin QTY. Workable Wire Voltage & Current Dimension Color Material IP Rating

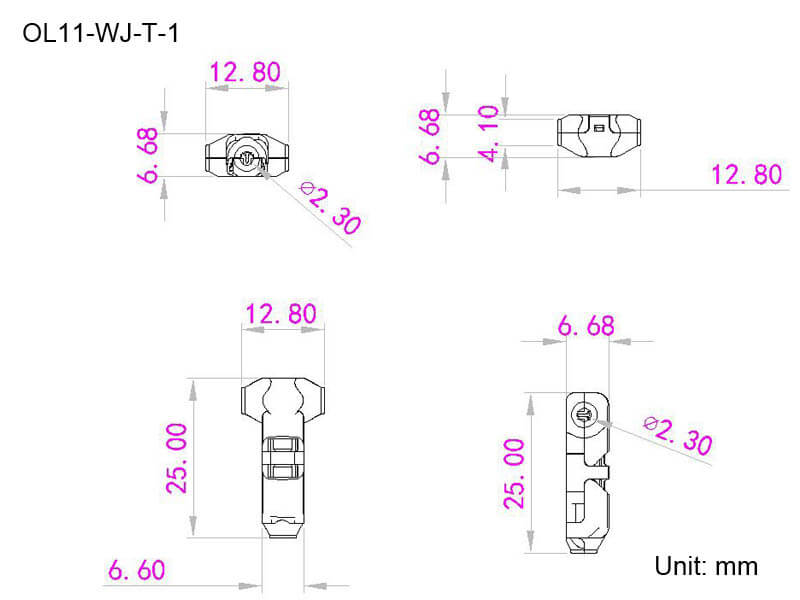

WJ-T-1C T shape 1 pole 1 Pins 22~18 AWG / 0.34~0.78 mm² 300V / 9A (Max Pin Can Bear) 25*12.8*6.7mm Clear+Black PC & Copper IP40
WJ-T-1R T shape 1 pole 1 Pins 22~18 AWG / 0.34~0.78 mm² 300V / 9A (Max Pin Can Bear) 25*12.8*6.7mm Red+Black PC & Copper IP40

How to use

Certifications

Title Language Size Type
LCS191212061AS-wire connectors-LVD
English 1388kb pdf
LCS191212061AS-Wire connectors-EN 60998 report
English 2446kb pdf
LCS191212060AR--Wire connectors--ROHS 2.0
English 1645kb pdf

1 Pin T shape 22~18 AWG

Are you searching for a high-quality wire splicing connector? You must check out the amazing selection of wire splicing connectors by Onlumi. You can find here a vast variety of wire joiners ranging from IDC wire joint to DC terminal connectors. Moreover, here you can find T shape, Y shape, and I shape connectors having 1 pin or 2 pin poles. The T shape wire splicing connector with 1 pin pole is applicable with 22 to 18 AWG wires. It is an IP40 product and can be used with both solid and strand wires. The T shape wire joining connector uses the insulation displacement technique to create a connection between two or more wires. The voltage and current capacity of this 1pin connector is 300V/9A. All the wire joining connectors manufactured by Onlumi have got certifications from CE and RoHS. These certificates are available on this page to watch and download in PDF format. Moreover, you can watch the tutorials explaining the usage of the 1 pin T shape wire splicing connector. The PC and copper-made wire joining solution is available at a reasonable price. Place your order and get this T-shape wire splicing connector delivered to your place.

Package Options

Boxes Face Seal Blister Hanging Head Clamshell Blister
