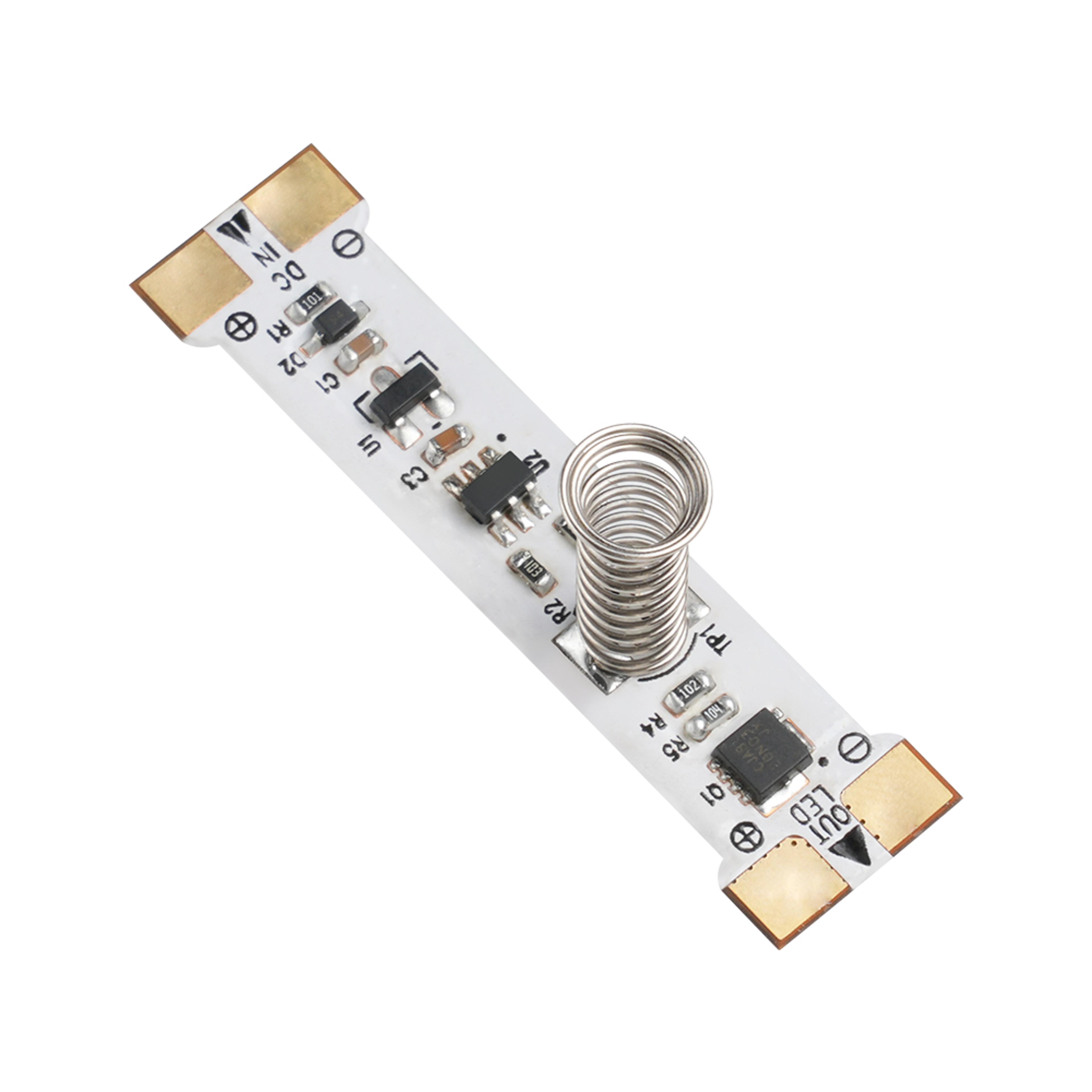

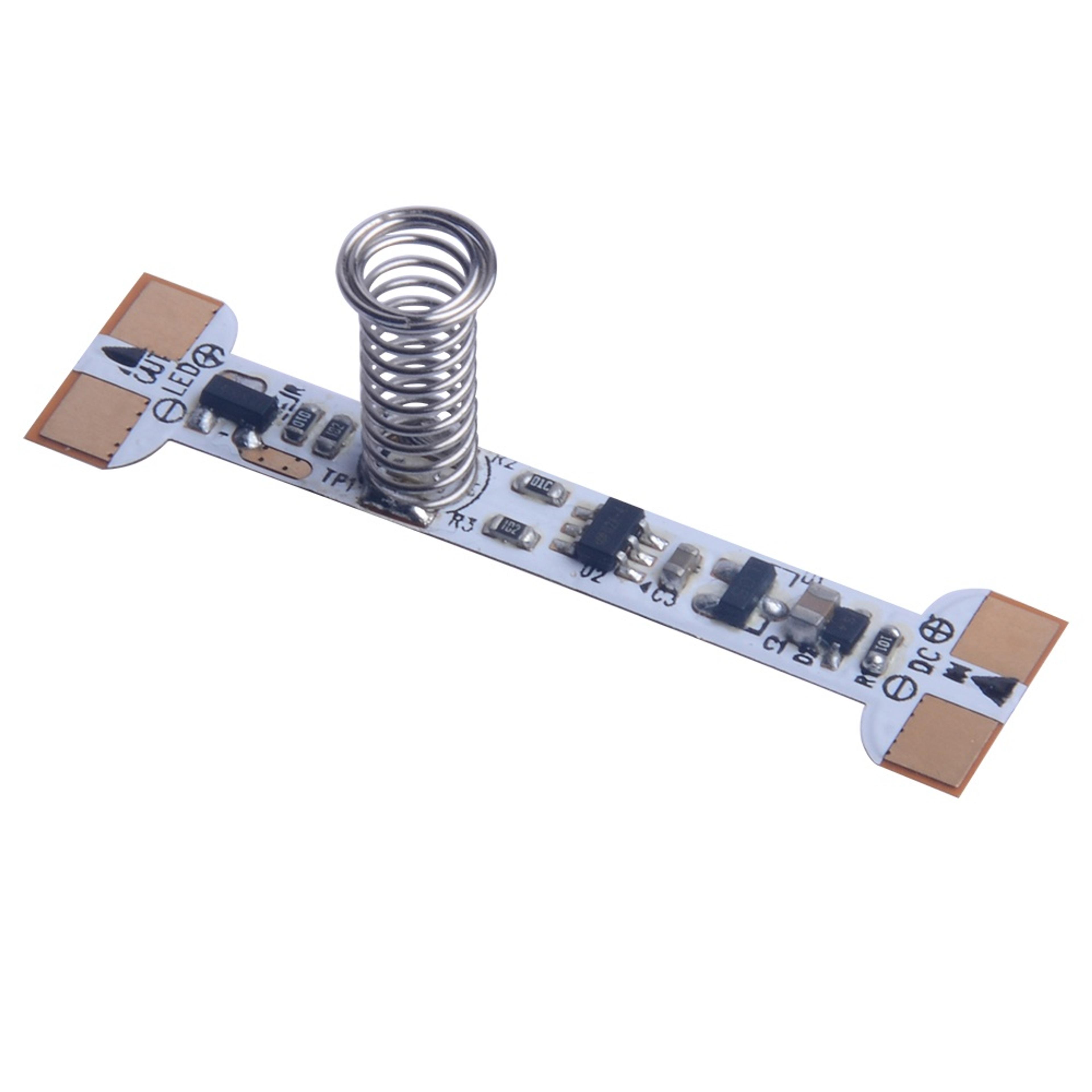

FPCBA Dimmable Touch Switch Module Trimmable
FPCBA Dimmable Touch Switch Module Trimmable

FPCBA Dimmable Touch Switch Module Trimmable

Brief Info

  • Flexible PCB
  • Trimmable, user can cut to size as needed
  • Touch Sensing
  • ON/OFF, Dimming
  • CE, RoHS, EMC, LVD, REACH, UKCA
  • share

Options

Item NO.SizePicture
FDTSM-T55*45 mm
FDTSM-T66*45 mm
FDTSM-T88*45 mm
FDTSM-T1010*45 mm

Technical Data

Item NO.Applicable to all item NO.
Way of SenseTouch
Height8.6 mm
Working VoltageDC5~24V (Input=Output)
Max Current3.5A
Max Power5V-17.5Watt; 12V-42Watt; 24V-84Watt
Output Channel NO.1 Channel
Applicable Light ColorMono Color
Brightness Dimmable Range5%~100%
PWM Frequency20KHz
Dimming TriggerPress for 1 Second
Dimming TypeCycle Dimming
MaterialCopper
Electrical ProtectionRevert Protection
