5A FPC dimmable touch switching module
5A Cuttable,flex pcb dimmable touch switch
5A FPC dimmable touch switching module
player
5A Cuttable,flex pcb dimmable touch switch

5A Flex PCB Dimmable Touch Switch Module

Customization: Acceptable based on MOQ

Brief Info

  • Flexible PCB

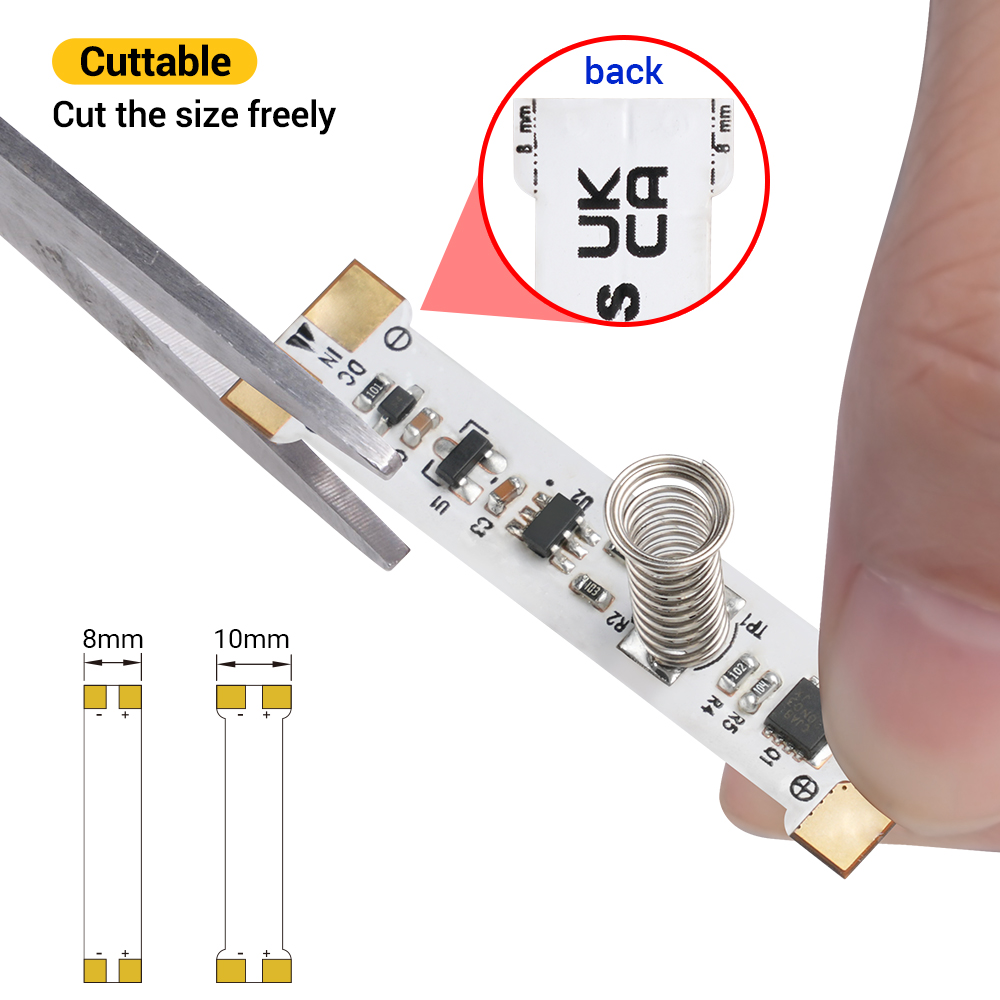

  • Trimmable, user can cut to size as needed
  • Touch Sensing
  • ON/OFF, Dimming
  • Indicator on/off option for bedroom
  • CE, RoHS, EMC, LVD, REACH, UKCA
Send Inquiry
  • share
QuoteSend Inquiry

Features

on off and dimming,flex pcb dimmable touch switchby solderless connector,flex pcb dimmable touch switch by soldering,flex pcb dimmable touch switchIndicator on of option,flex pcb dimmable touch switch

Options

Item NO.Module Size(W*L)DescriptionReference Picture

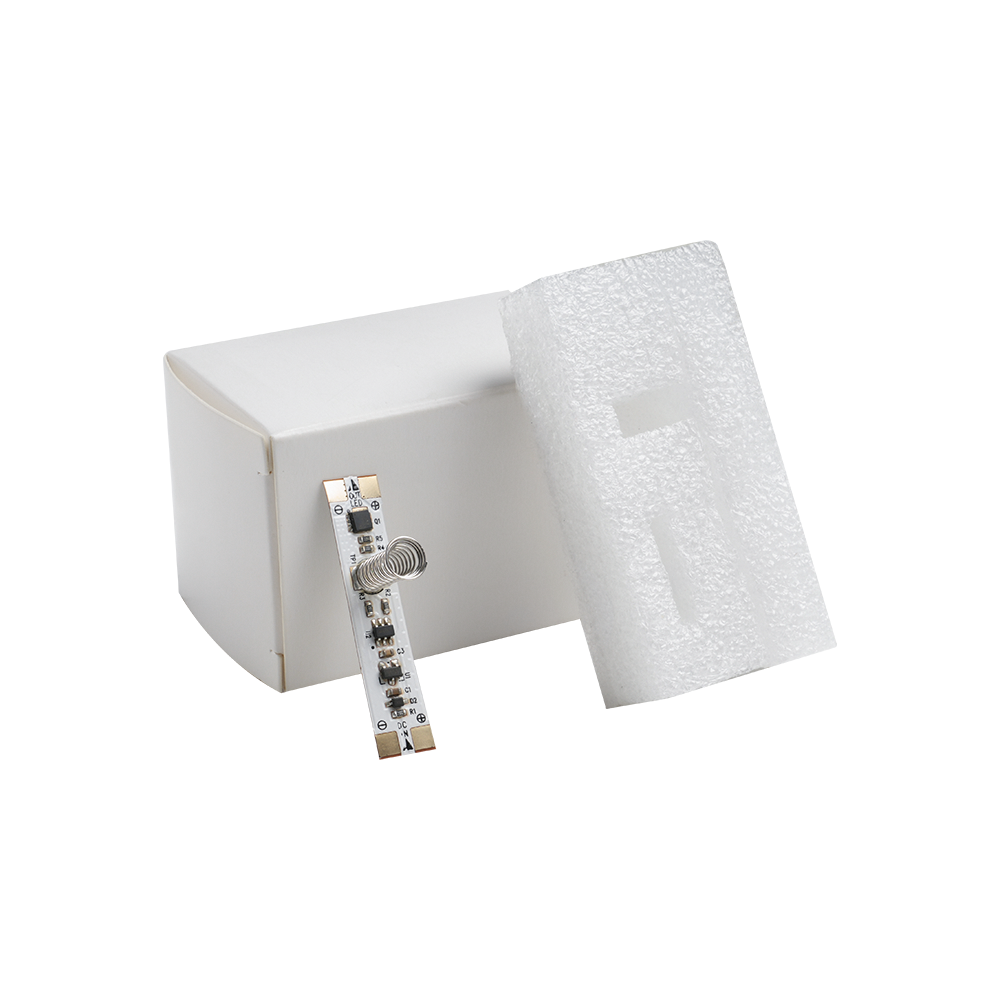

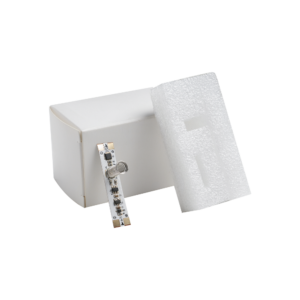

FDTSM-T8A-K18*40 mm1 PCS Touch Switch & Dimming
Dual Side Flexbile PCBDC5~24V / 5A
Input voltage =output voltage
5%~100% brightness dimmable
Package: box 40*40*60mm		FDTSM-T8A-K1

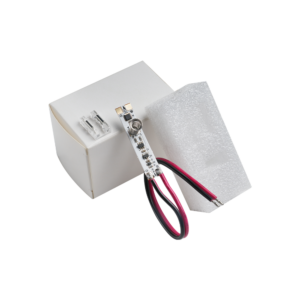

FDTSM-T8A-F20ABR150-K38*40 mm1 PCS Touch Switch & Dimming
Dual Side Flexbile PCB
20AWG 150mm Wire soldered DC5~24V / 5A
Input voltage =output voltage
5%~100% brightness dimmable
1 PC BCI8BB-2
1 PC Instruction
Box Size 40*40*60mm		FDTSM-T8A-F20ABR150-K3

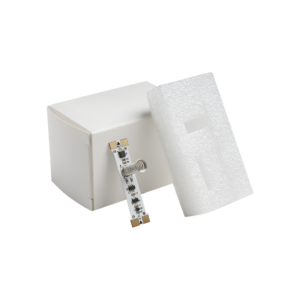

FDTSM-T10A-K110*40 mm1 PCS Touch Switch & Dimming
Dual Side Flexbile PCBDC5~24V / 5A
Input voltage =output voltage
5%~100% brightness dimmable
Package: box 40*40*60mm		FDTSM-T10A-K1

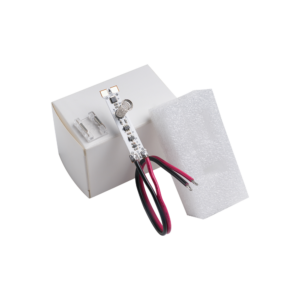

FDTSM-T10A-F20ABR150-K310*40 mm1 PCS Touch Switch & DimmingDual Side Flexbile PCB
20AWG 150mm Wire solderedDC5~24V / 5A
Input voltage =output voltage
5%~100% brightness dimmable
1 PC BCI10BB-2
1 PC Instruction
Box Size 40*40*60mm		FDTSM-T10A-F20ABR150-K3

Technical Data

Item NO.Applicable to all item NO.
Way of SenseTouch
Height8.6 mm (include spring)
Working VoltageDC5~24V (Input=Output)
Max Current5A
Max Power5V-25Watt; 12V-60Watt; 24V-120Watt
Output Channel NO.1 Channel
Applicable Light ColorMono Color
Brightness Dimmable Range5%~100%
PWM Frequency20KHz
Dimming TriggerPress for 1 Second
Dimming TypeCycle Dimming
MaterialCopper
Electrical ProtectionRevert Protection

Certificates

Title Language Size Type
CE-LVD
 English 740kb pdf
CE-EMC
 English 605kb pdf

Package Options

Normal BagBoxHanging HeadFace Seal BlisterClamshell Blister
White Box​White Box​Hanging Head bag package for led strip connectorFace Seal BlisterClamshell Blister
