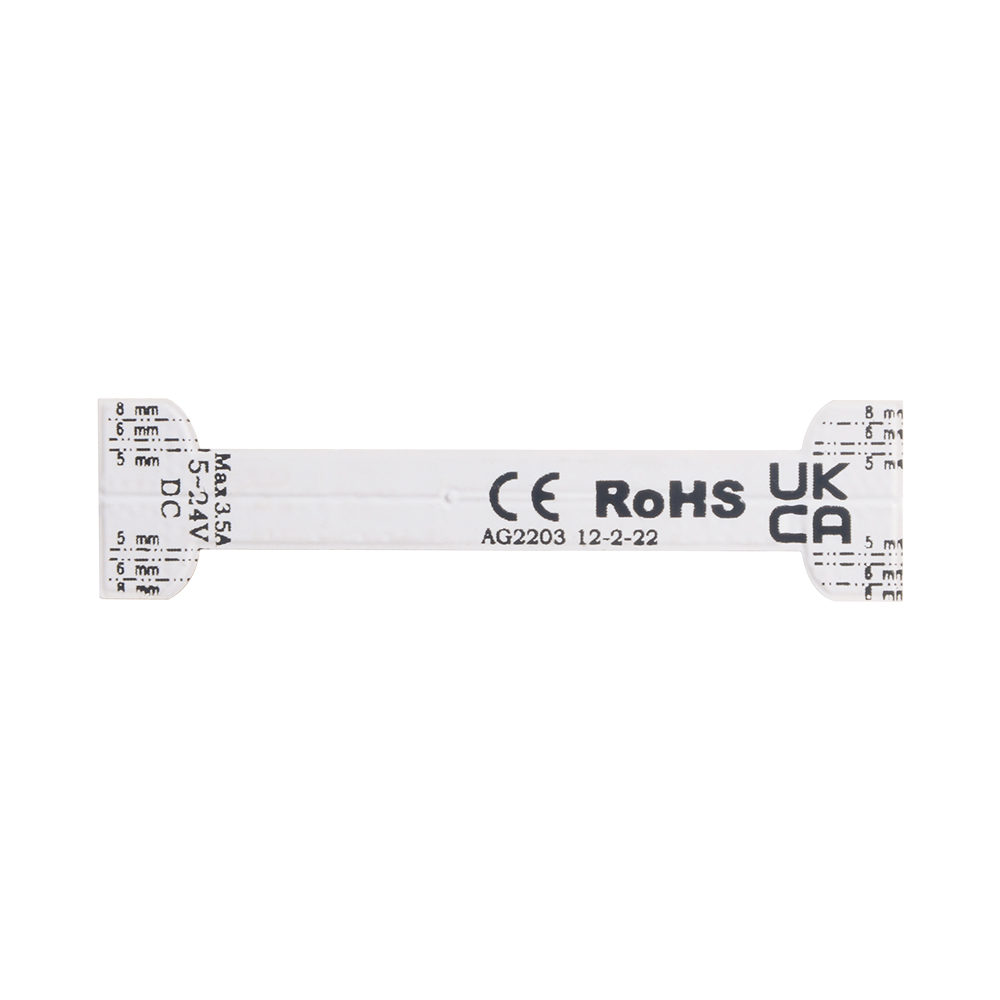

3.5A back,flex pcb dimmable touch switch
player
Cuttable,flex pcb dimmable touch switch
3.5A back,flex pcb dimmable touch switch

3.5A Flex PCB Dimmable Touch Switch Module

Customization: Acceptable based on MOQ

Brief Info

  • Flexible PCB

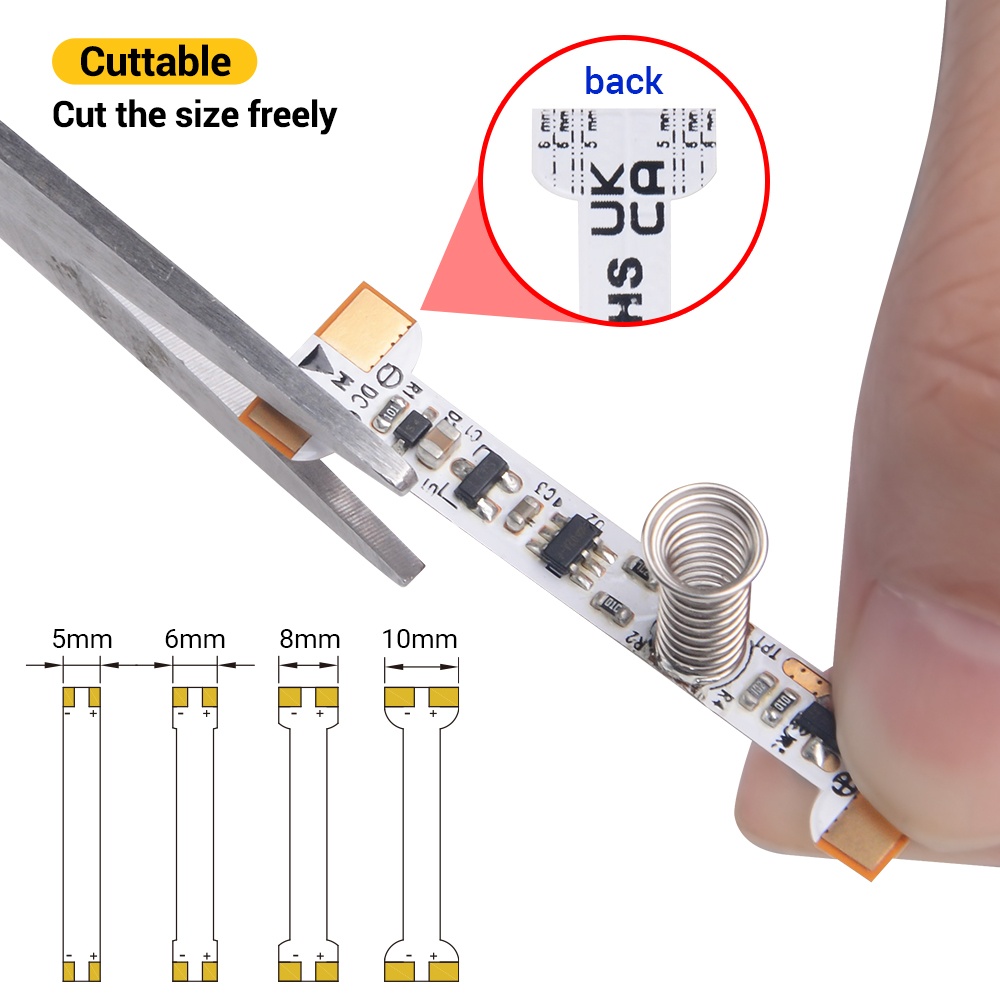

  • Trimmable, user can cut to size as needed
  • Touch Sensing
  • ON/OFF, Dimming
  • Indicator on/off option for bedroom
  • CE, RoHS, EMC, LVD, REACH, UKCA
Send Inquiry
  • share
QuoteSend Inquiry

Features

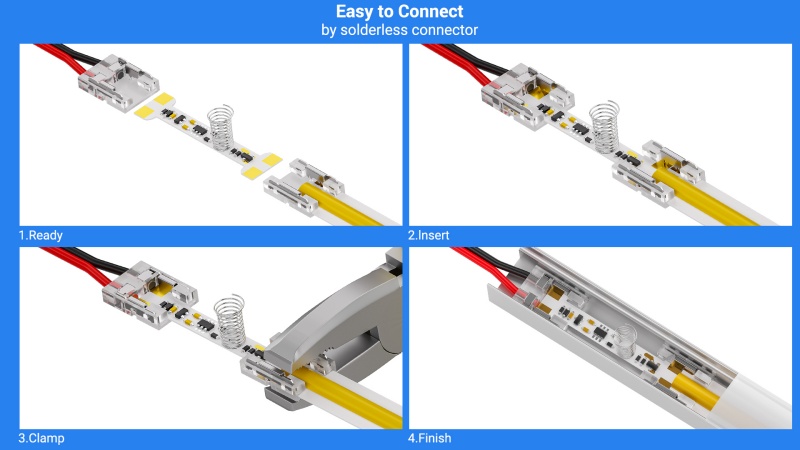

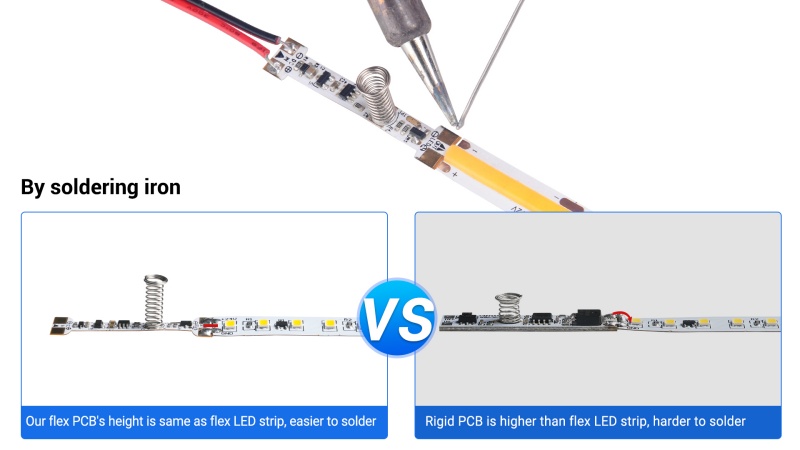

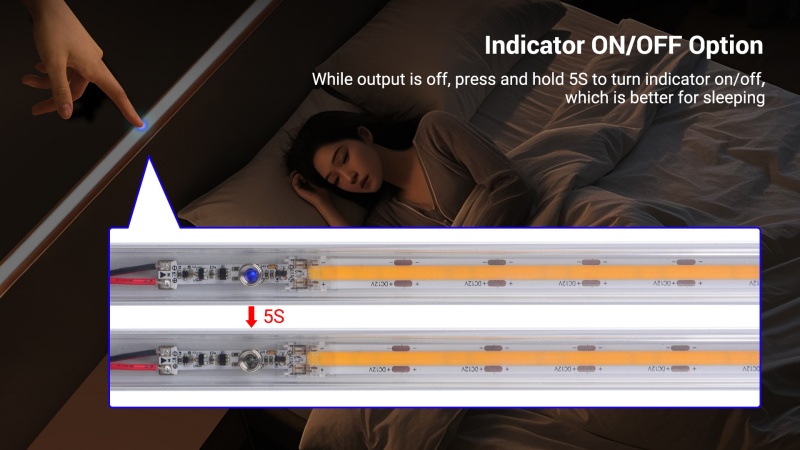

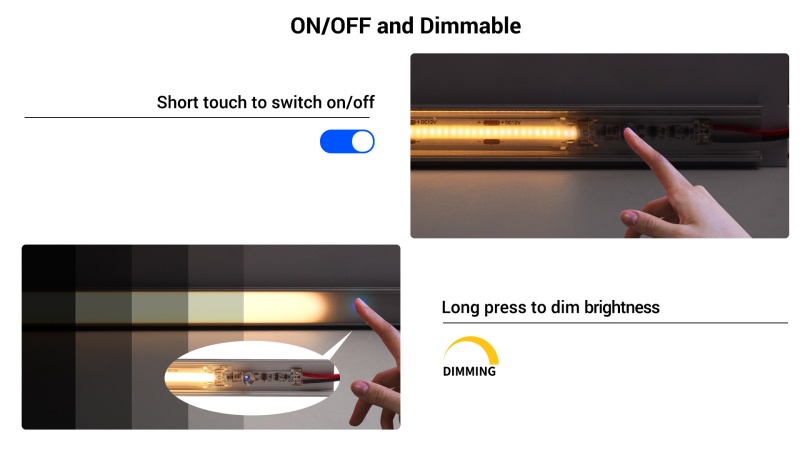

on off and dimming,flex pcb dimmable touch switchby solderless connector,flex pcb dimmable touch switch by soldering,flex pcb dimmable touch switchIndicator on of option,flex pcb dimmable touch switch

Options

Item NO.Module Size(W*L)DescriptionReference Picture
FDTSM-T55*40 mmno connectors
foam panel package
40 PCS/Package		FDSSM-T5

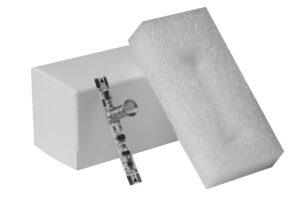

FDTSM-T5-K15*40 mmno connectors
box+foam package
1pc/box		FDSSM-T5-K1

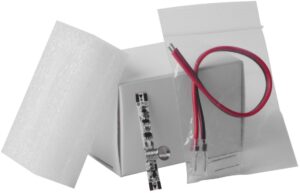

FDSSM-T5-K25*40 mmwith connectors
box+foam package
Includes:
1 PC FDTSM-T5
1 PC BCI5XB-2W
1 PC BCI5BB-2
1 PC Instruction		FDSSM-T5-K2
FDTSM-T66*40 mmno connectors
foam panel package
40 PCS/Package		FDSSM-T6

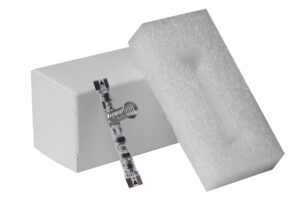

FDTSM-T6-K16*40 mmno connectors
box+foam package
1pc/box		FDSSM-T6-K1

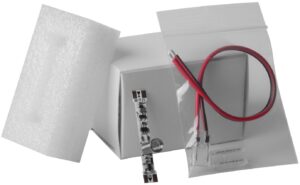

FDTSM-T6-K26*40 mmwith connectors
box+foam package
Includes:
1 PC FDTSM-T6
1 PC BCI6XB-2W
1 PC BCI6BB-2
1 PC Instruction		FDSSM-T6-K2
FDTSM-T88*40 mmno connectors
foam panel package
40 PCS/Package		FDSSM-T8

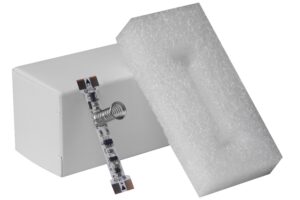

FDTSM-T8-K18*40 mmno connectors
box+foam package
1pc/box		FDSSM-T8-K1

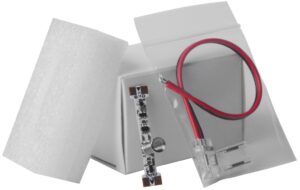

FDTSM-T8-K28*40 mmwith connectors
box+foam package
Includes:
1 PC FDTSM-T8
1 PC BCI8XB-2W
1 PC BCI8BB-2
1 PC Instruction		FDSSM-T8-K2
FDTSM-T1010*40 mmno connectors
foam panel package
40 PCS/Package		FDSSM-T10

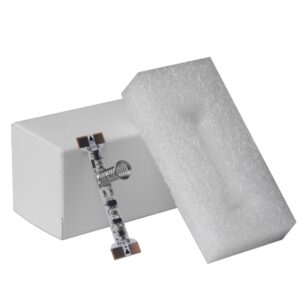

FDTSM-T10-K110*40 mmno connectors
box+foam package
1pc/box		FDSSM-T10-K1

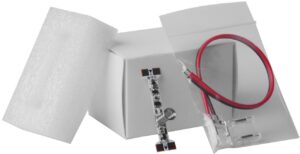

FDTSM-T10-K210*40 mmwith connectors
box+foam package
Includes:
1 PC FDTSM-T10
1 PC BCI10XB-2W
1 PC BCI10BB-2
1 PC Instruction		FDSSM-T10-K2

Technical Data

Item NO.Applicable to all item NO.
Way of SenseTouch
Height8.6 mm (include spring)
Working VoltageDC5~24V (Input=Output)
Max Current3.5A
Max Power5V-17.5Watt; 12V-42Watt; 24V-84Watt
Output Channel NO.1 Channel
Applicable Light ColorMono Color
Brightness Dimmable Range5%~100%
PWM Frequency20KHz
Dimming TriggerPress for 1 Second
Dimming TypeCycle Dimming
MaterialCopper
Electrical ProtectionRevert Protection
