Home > LED Light Strip Connector > Outdoor Solid > 10mm PCB/12mm Tube 2 Pin Hippo-m Solid for IP68
10mm/12mm 2 Pin Hippo-m Solid for IP68
10mm/12mm 2 Pin Hippo-m Solid for IP68

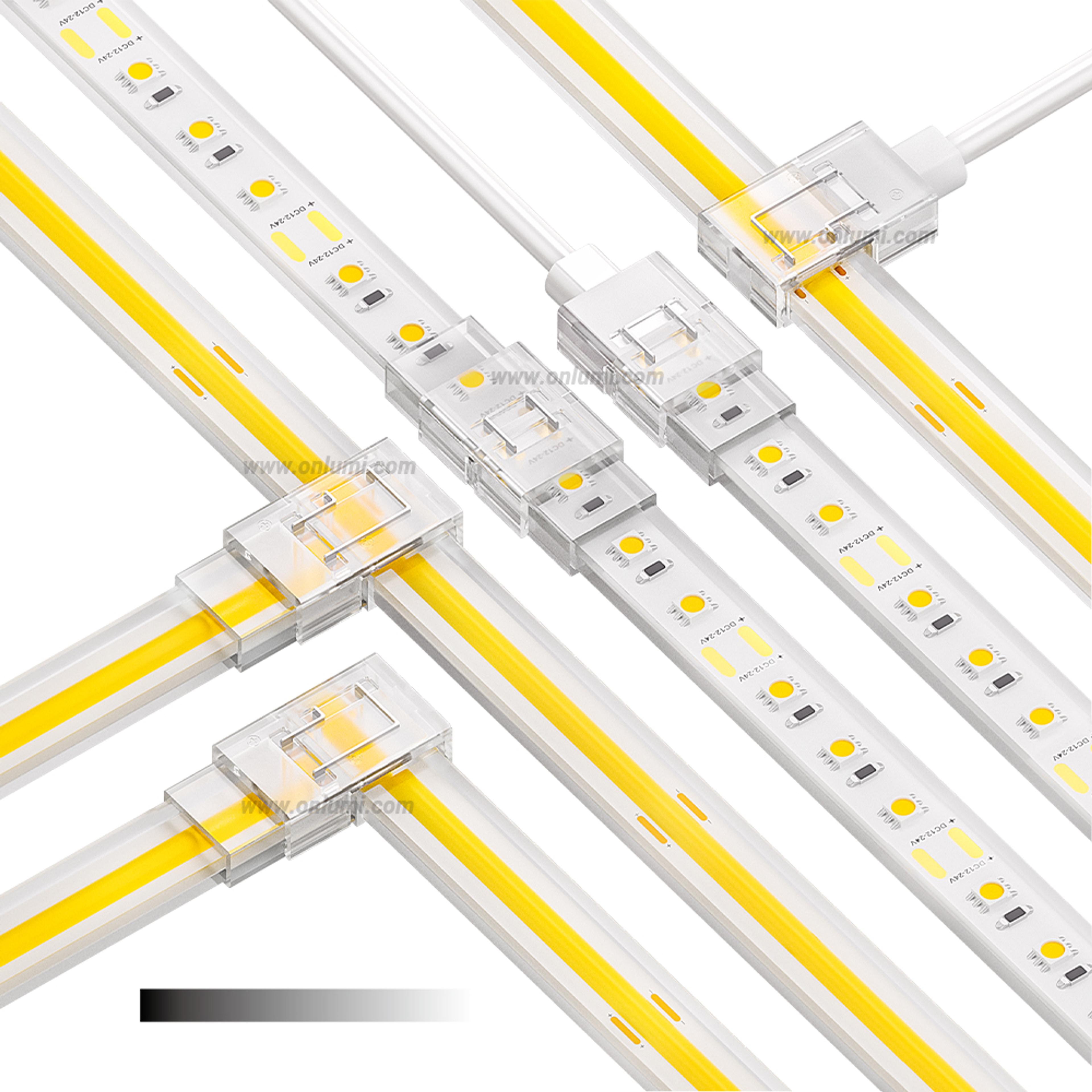

10mm PCB/12mm Tube 2 Pin Hippo-m Solid for IP68

Customization Options:Package, Wire, Adapter and more

Brief Info

  • Types: Strip to Wire, Strip to Strip Joint, Strip to Power, Strip to Strip Bridge
  • Applicable Strip: IP68 Waterproof
  • Workable PCB Type: Flexible
  • Workable Wire: 20 AWG/0.52 mm2
  • Certificate: CE, RoHS, Reach
  • share

Options

Model NO. Types Connective Position
SDN10BB-2 Strip to Strip Joint for IP68 Between strip and wire
SDN10XB-2W200 Strip to Power for IP68 One connector with 200mm 20AWG wire
SDN10BXB-2W200 Strip to Strip Bridge for IP68 Between two connector with 200mm 20AWG wire
SDN10XB-2W500 Strip to Power for IP68 One connector with 500mm 20AWG wire
SDN10BXB-2W500 Strip to Strip Bridge for IP68 Between two connector with 500mm 20AWG wire
SDN10XB-2W1000 Strip to Power for IP68 One connector with 1000mm 20AWG wire
SDN10BXB-2W1000 Strip to Strip Bridge for IP68 Between two connector with 1000mm 20AWG wire

Technical Data

Part NO. Type Voltage/Current Strip Width Pin NO. Size Material Wire Spec Wire Fixed Color
SDN10BB-2 Strip to Strip Joint 3~24V/5A 10mm 2 Pins 40*17.5*8.5mm Policarbonate, ABS / No wire Transparent&White
SDN10XB-2W200 Strip to Power 3~24V/3.5A 10mm 2 Pins 28*17.5*8.5mm Policarbonate, ABS, PVC 200mm 20AWG/0.52mm2 With wire Transparent&White
SDN10BXB-2W200 Strip to Strip Bridge 3~24V/3.5A 10mm 2 Pins 28*17.5*8.5mm Policarbonate, ABS, PVC 200mm 20AWG/0.52mm2 With wire Transparent&White
SDN10XB-2W500 Strip to Power 3~24V/3.5A 10mm 2 Pins 28*17.5*8.5mm Policarbonate, ABS, PVC 500mm 20AWG/0.52mm2 With wire Transparent&White
SDN10BXB-2W500 Strip to Strip Bridge 3~24V/3.5A 10mm 2 Pins 28*17.5*8.5mm Policarbonate, ABS, PVC 500mm 20AWG/0.52mm2 With wire Transparent&White
SDN10XB-2W1000 Strip to Power 3~24V/3.5A 10mm 2 Pins 28*17.5*8.5mm Policarbonate, ABS, PVC 1000mm 20AWG/0.52mm2 With wire Transparent&White
SDN10BXB-2W1000 Strip to Strip Bridge 3~24V/3.5A 10mm 2 Pins 28*17.5*8.5mm Policarbonate, ABS, PVC 1000mm 20AWG/0.52mm2 With wire Transparent&White

How to use

Strip to Strip Bridge   Strip to Power/Strip to Strip Bridge



Certificates

Title Language Size Type
AST1911202013EMC Hippo-M Solid CE-EMC Certification
English 353kb pdf
AST1911203002RoHS Hippo-M Solid CE-ROHS Certification
English 367kb pdf
AST1911201005LVD-Hippo-M Solid CE-LVD Certification
English 347kb pdf

Package Options

Normal BagBoxHanging HeadFace Seal BlisterClamshell Blister
White BoxWhite BoxHanging Head bag package for led strip connectorFace Seal BlisterClamshell Blister
