Gapless L Shape LED Strip Connector
COB L Shape 2 Pin LED Strip Connector
Gapless L Shape LED Strip Connector
player

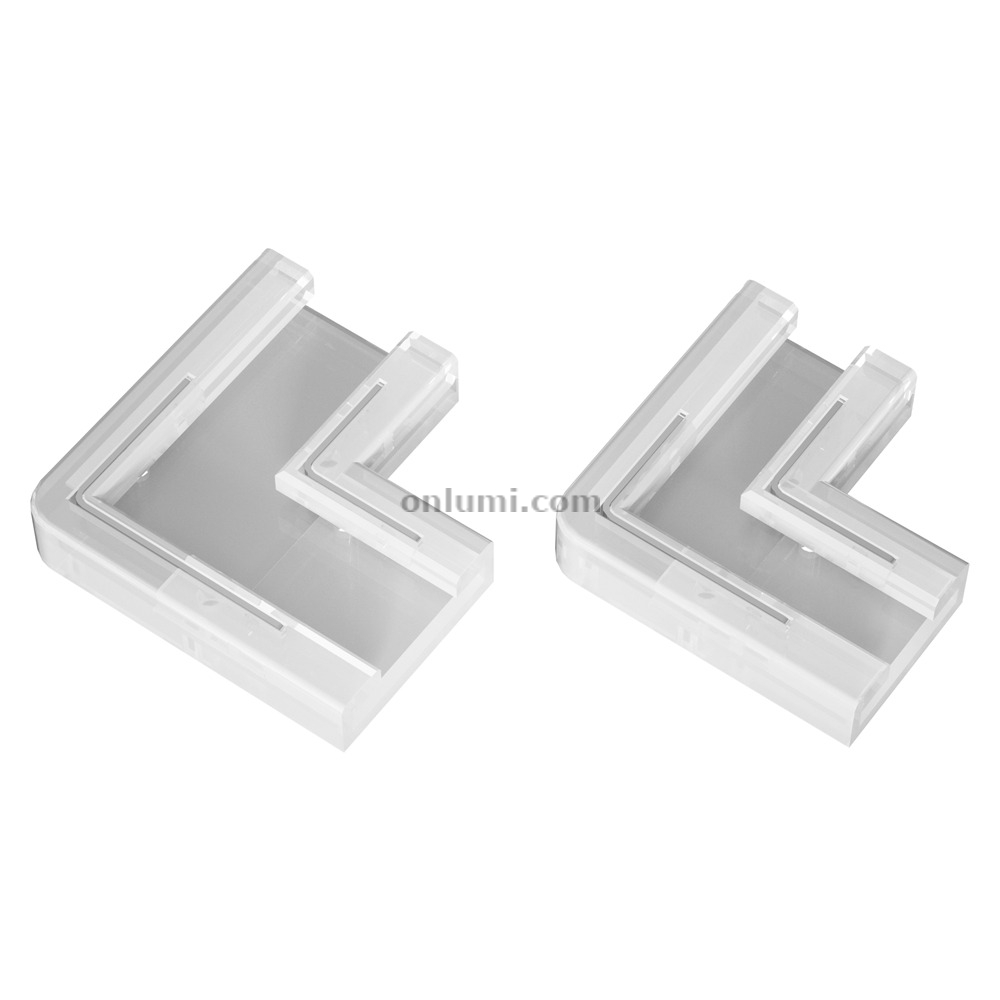

COB L Shape 2 Pin LED Strip Connector

L Shape High Density and COB LED Strip Connector

Customized Option:fully support

Brief Info

  • Gapless Connection
  • Applicable to both SMD and COB
  • Easy to operate
  • Firm connection with pierce-to-contact technology
  • CE, RoHS, EMC, LVD, REACH, UKCA



Send Inquiry
  • share
QuoteSend Inquiry

Options

Item NO.Width for LED StripConnection Type
BCI5-L25mmL Shape
BCI8-L28mmL Shape
BCI10-L210mmL Shape

Technical Data

Item NO.Applicable for all 2-Pins Item
Working VoltageDC5~24V
Max Current4A
Pin NO.2 Pins
Light Strip ColorSingle Color / Mono Color
PCB Thickness0.25 ~0.35 mm
IP RatingIP20
MaterialPolycarbonate, Copper
Housing ColorTransparent
TEMP. Resistance105℃
Environment TEMP.-10 ~ 45℃

Remark: Though the max current of Pin is 4 A, the actual working current is limited by wire gauge and PCB thickness it work with

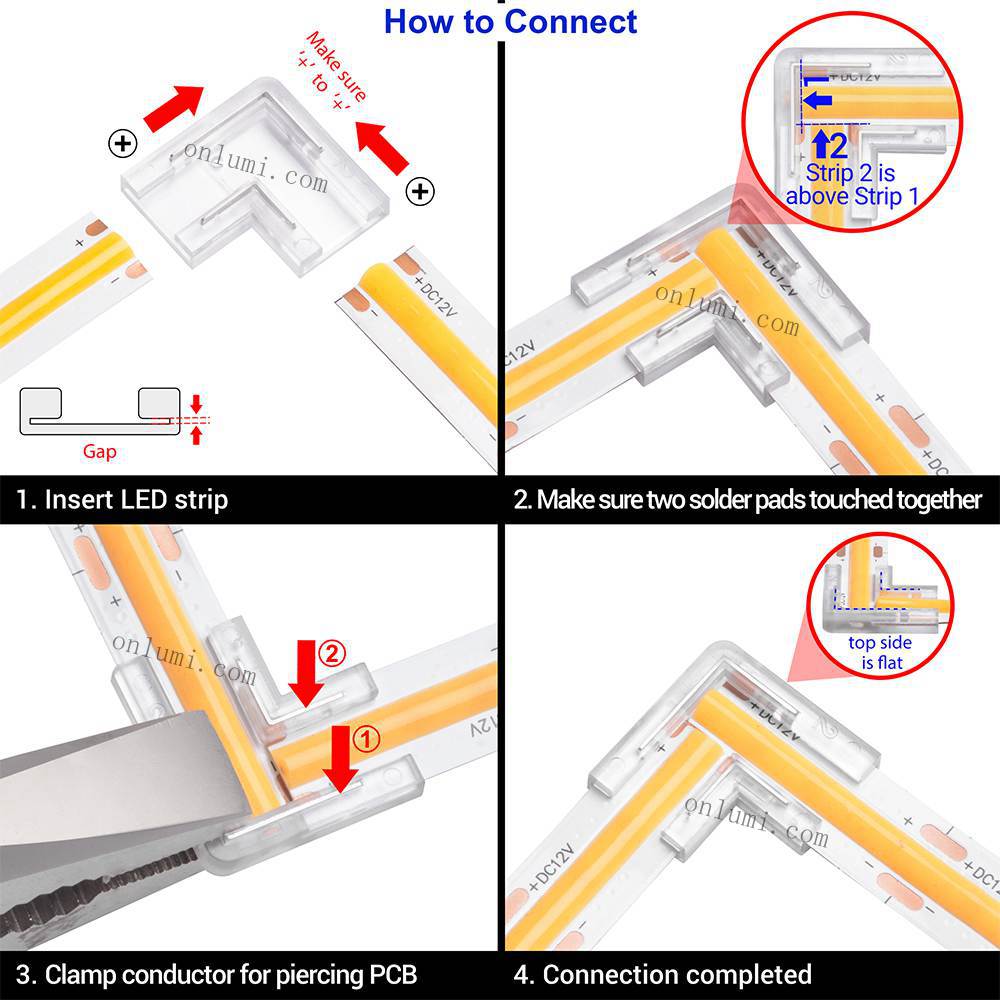

How to Use

how to connect L shape cob strip

Certificates

Coming soon.

Package Option

Normal BagBoxHanging HeadFace Seal BlisterClamshell Blister
White Box​White Box​Hanging Head bag package for led strip connectorFace Seal BlisterClamshell Blister
