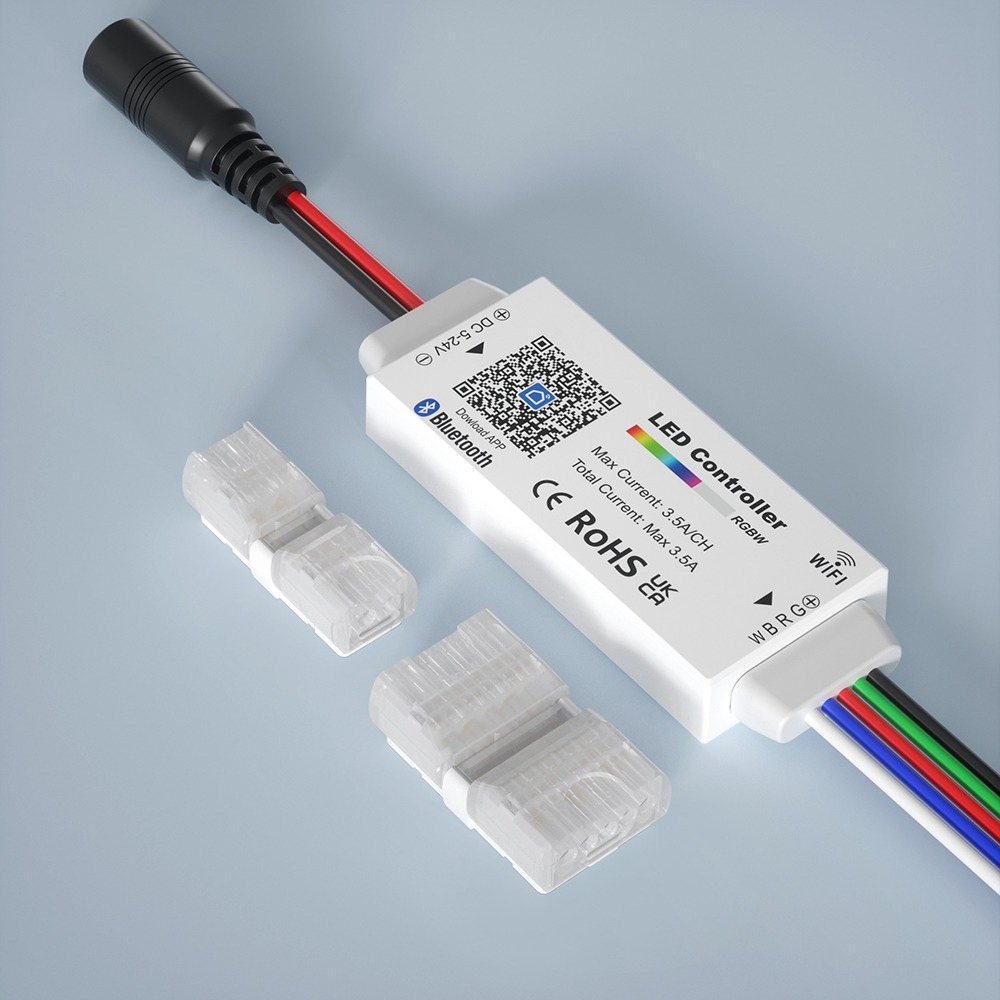

Wifi Bluetooth Mini Controller RGBW CTL-AA
Wifi Bluetooth Mini Controller RGBW CTL-AA

Wifi Bluetooth Mini Controller RGBW CTL-AA

Brief Info

  • Control by Smart Life or Tuya App
  • Voice control via Amazon Alexa or Google Assistant
  • DC5~24V / 3.5A max
  • Small Size
  • Control RGBW Color
  • Static Color, Dimming, Flash and Breath Effect
  • CE, EMC, LVD, RoHS, REACH, UKCA
  • share

Options

Item NOInput WireOutput WireAccessories
CTL-AAW-RGBW-34DC5521 Female InputOpen Wire1 PC WHM-2220-CC2
1 PC WHM-2220-CC5
CTL-AAW-RGBW-34-01Open WireOpen Wire1 PC WHM-2220-CC2
1 PC WHM-2220-CC5
CTL-AAW-RGBW-34-02Open WireOpen WireNo Accessories

Technical Data

Item NO.Applicable for all item NO.
Output VoltageDC5~24V
Max Current3.5A (20AWG Wire)
Max Power5V-17.5Watt; 12V-42Watt; 24V-84Watt
Output Channel NO.4 Channel
Applicable Light ColorRGBW Color
Grey Level255
Brightness Dimmable Range10%~100%
Bluetooth VersionBluetooth 5.2
WIFI Frequency2.4GHz
PWM Frequency20KHz
Input Wire ColorBlack-Red
Output Wire ColorBlack-Green-Red-Blue-White
Wire Length150mm
Wire Gauge20AWG / 0.52 mm²
Electrical ProtectionRevert Protection, Over Load Protection
