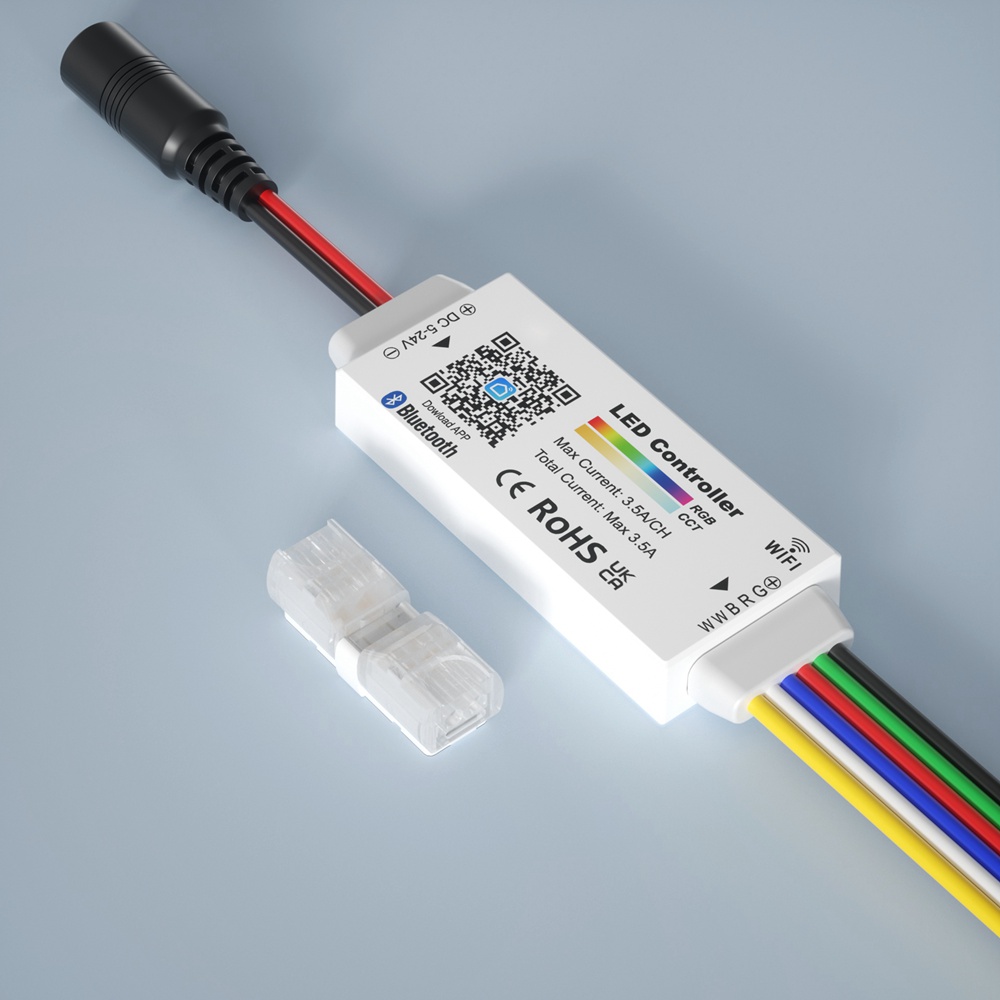

| Item NO | Input Wire | Output Wire | Accessories |
| CTL-AAW-RGBCCT-34 | DC5521 Female Input | Open Wire | 1 PC WHM-2220-CC2 |
| CTL-AAW-RGBCCT-34-01 | Open Wire | Open Wire | 1 PC WHM-2220-CC2 |
| CTL-AAW-RGBCCT-34-02 | Open Wire | Open Wire | No Accessories |
| Item NO. | Applicable for all item NO. |
| Output Voltage | DC5~24V |
| Max Current | 3.5A (20AWG Wire) |
| Max Power | 5V-17.5Watt; 12V-42Watt; 24V-84Watt |
| Output Channel NO. | 5 Channel |
| Applicable Light Color | RGB+CCT (RGBWW) Color |
| Grey Level | 255 |
| Brightness Dimmable Range | 10%~100% |
| Bluetooth Version | Bluetooth 5.2 |
| WIFI Frequency | 2.4GHz |
| PWM Frequency | 20KHz |
| Input Wire Color | Black-Red |
| Output Wire Color | Black-Green-Red-Blue-White-Yellow |
| Wire Length | 150mm |
| Wire Gauge | 20AWG / 0.52 mm² |
| Electrical Protection | Revert Protection, Over Load Protection |
