Home > Electrical Wire & Cable > Sheathed Cable Flat and Round > 4 Pin Black-Green-Red-Blue Sheathed Wire

4 Pins for LED RGB jacket wire Sheathed Cable

4 Pins for LED RGB jacket wire Sheathed Cable Black

4 Pins for LED RGB jacket wire Sheathed Cable

4 Pins for LED RGB jacket wire Sheathed Cable Black

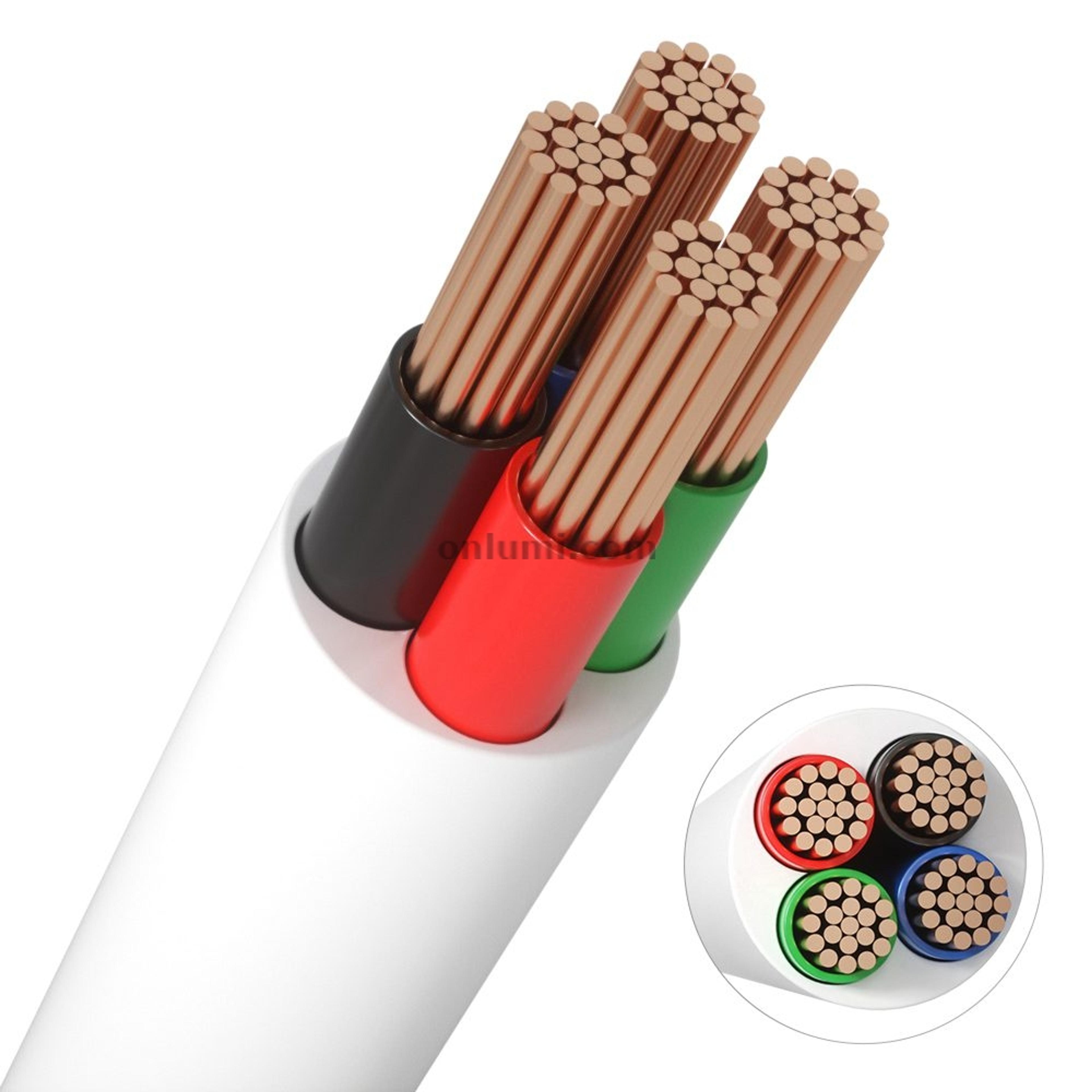

4 Pin Black-Green-Red-Blue Sheathed Wire

Customization Options:Package, Color, Length and More

Brief Info

Package Method: Film/Spool
Package Length: 100m or Customized
Conductor Type: Multi-Strand
Material: PVC, Copper
Printed Content: AWM AWG 80℃ 300V VW-1 FT1

Send Inquiry

share

Options
Technical Data
Package Options
Related Products

Quote

Send Inquiry

Options

Below item NO.s are standard. Customization is acceptable.

Item NO.	Wire Gauge	OD	Outer Insulation Color	Length/Roll	Package Method
J1H-18A4C-BKGRB-100M	18 AWG/0.78 mm²	5.0 mm	Black	100 Meters	Film Wrap
J1H-18A4C-BKGRB-100M-SP	18 AWG/0.78 mm²	5.0 mm	Black	100 Meters	Plastic Spool
J1W-18A4C-BKGRB-100M	18 AWG/0.78 mm²	5.0 mm	White	100 Meters	Film Wrap
J1W-18A4C-BKGRB-100M-SP	18 AWG/0.78 mm²	5.0 mm	White	100 Meters	Plastic Spool
J1H-20A4C-BKGRB-100M	20 AWG/0.52 mm²	4.0 mm	Black	100 Meters	Film Wrap
J1H-20A4C-BKGRB-100M-SP	20 AWG/0.52 mm²	4.0 mm	Black	100 Meters	Plastic Spool
J1W-20A4C-BKGRB-100M	20 AWG/0.52 mm²	4.0 mm	White	100 Meters	Film Wrap
J1W-20A4C-BKGRB-100M-SP	20 AWG/0.52 mm²	4.0 mm	White	100 Meters	Plastic Spool
J1H-22A4C-BKGRB-100M	22 AWG/0.32 mm²	3.5 mm	Black	100 Meters	Film Wrap
J1H-22A4C-BKGRB-100M-SP	22 AWG/0.32 mm²	3.5 mm	Black	100 Meters	Plastic Spool
J1W-22A4C-BKGRB-100M	22 AWG/0.32 mm²	3.5 mm	White	100 Meters	Film Wrap
J1W-22A4C-BKGRB-100M-SP	22 AWG/0.32 mm²	3.5 mm	White	100 Meters	Plastic Spool

Technical Data

Applicable Item NO.	All
Wire Type	AWM 2464
Approval	UL Listed, RoHS
Inner Insulation Color	Black, Green, Red, Blue
Inner Insulation Thickness	0.24~0.32mm
Outer Insulation Thickness	18AWG: 0.5mm; 22/20AWG: 0.38~0.44mm
Material	Polyvinyl Chloride (PVC), Bare Copper
Flame Rating	UL1581: VW-1, FT1
Working Voltage	300V
Temperature Resistance	80 °C
Conductor Construction	Multiple Strand

Package Options

Film Wrap	Plastic Spool
