Customizable Options:Whole Products and Packages Depending on MOQ
| Item NO. | Model | Product Picture | Remark |
| TDQ-5521H-SET01 | open/close Sensor Control Switch Set |  | a set with receiver and sensor |
| TDQ-5521H-SET02 | PIR Sensor Control Switch Set |  | a set with receiver and sensor |
| TDQ-5521H | Wireless Control Switch |  | receiver only |
| SSDX | 2.4G Wireless Magnetic open/close Sensor |  | sensor only |
| PIR-03 | 2.4G Wireless PIR Sensor |  | sensor only |
2.4GHz PIR Sensor
| Sensing Technology | PIR |
| Sensing Angle | 120° |
| Sensitivity Setup Option | 4 / 8 / 12 meters |
| Delay Time Setup Option | 3S/10S/30S/1M/3M/5M/10M/30M/60M |
| Power Method | CR123A Battery |
| Working Temperature | -20~45° C |
| Working Humidity | 0~80% |
| IP Rating | IP44 |
| Communication Protocol | 2.4GHz |
| Communication Distance | 150 meters without barriers, 10-30 meters with barriers |
| Network Scale | Can control unlimited plugs |
| Housing Material | Polycarbonate (PC)+ABS |
2.4GHz Open/Close Sensor
| Sensing Technology | Magnet |
| Power Method | CR2032 3V |
| Working Temperature | -20~45° C |
| Working Humidity | 0~80% |
| IP Rating | IP44 |
| Communication Protocol | 2.4GHz |
| Communication Distance | 150 meters without barriers, 10-30 meters with barriers |
| Network Scale | Can control unlimited plugs |
| Housing Material | Polycarbonate (PC)+ABS |

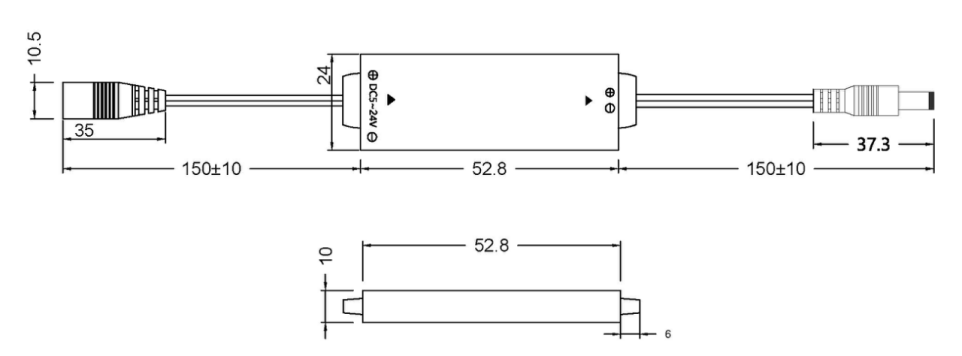

Wireless Control Switch
| Item NO. | Applicable to All Item NO. |
| Working Voltage | DC 5~24V |
| Max Current | 5A |
| Power supply | Constant voltage |
| Input Plug Type | Black DC5521 Female |
| Output Plug Type | Black DC5521 Male |
| Wire Color | Black-Red (Red is Positive.) |
| Material | PC, Copper, PVC |
| TEMP. Resistance | 80℃ |
| Wire Length | 150 mm |
| Standard Wire Gauge | 20AWG / 0.52mm² |
