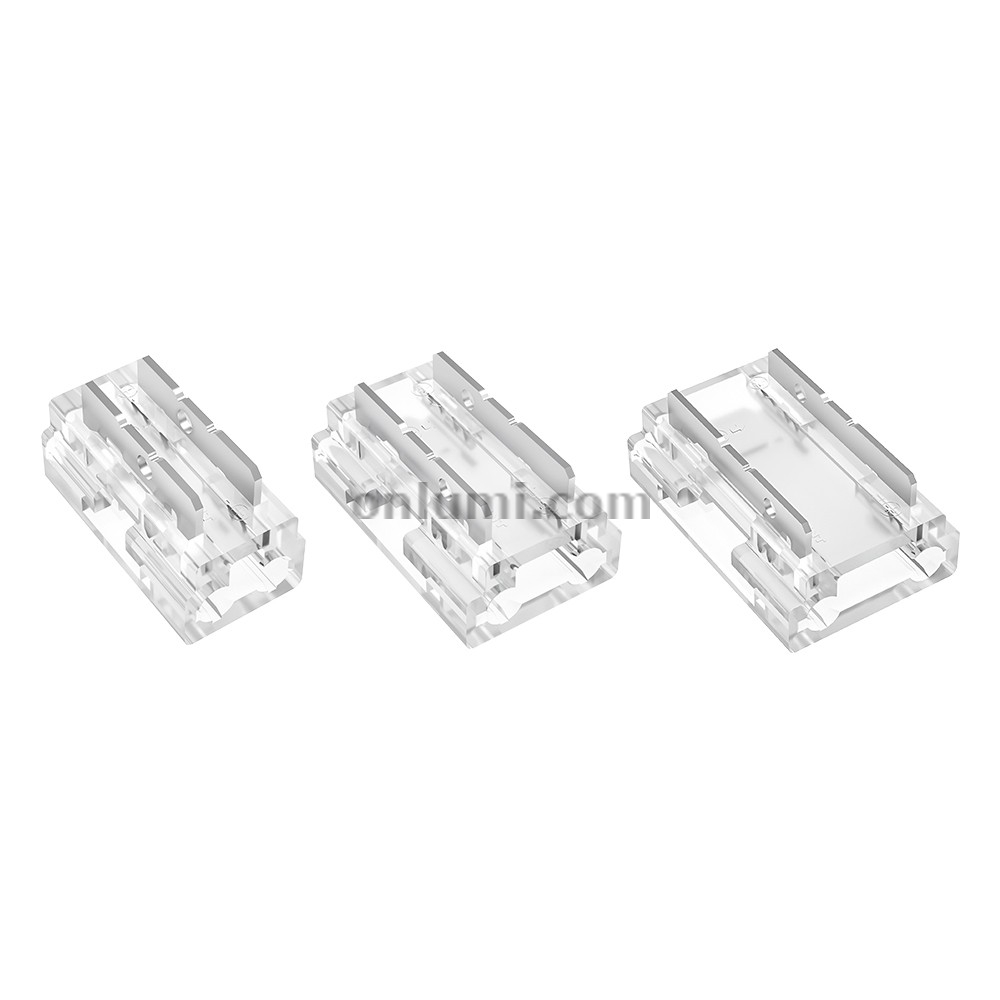

9-in-1 LED Strip Connector 2 Pins for COB / SMD

Customizable Options:Wire Length, Gauge, Color, Connector and more

Brief Info

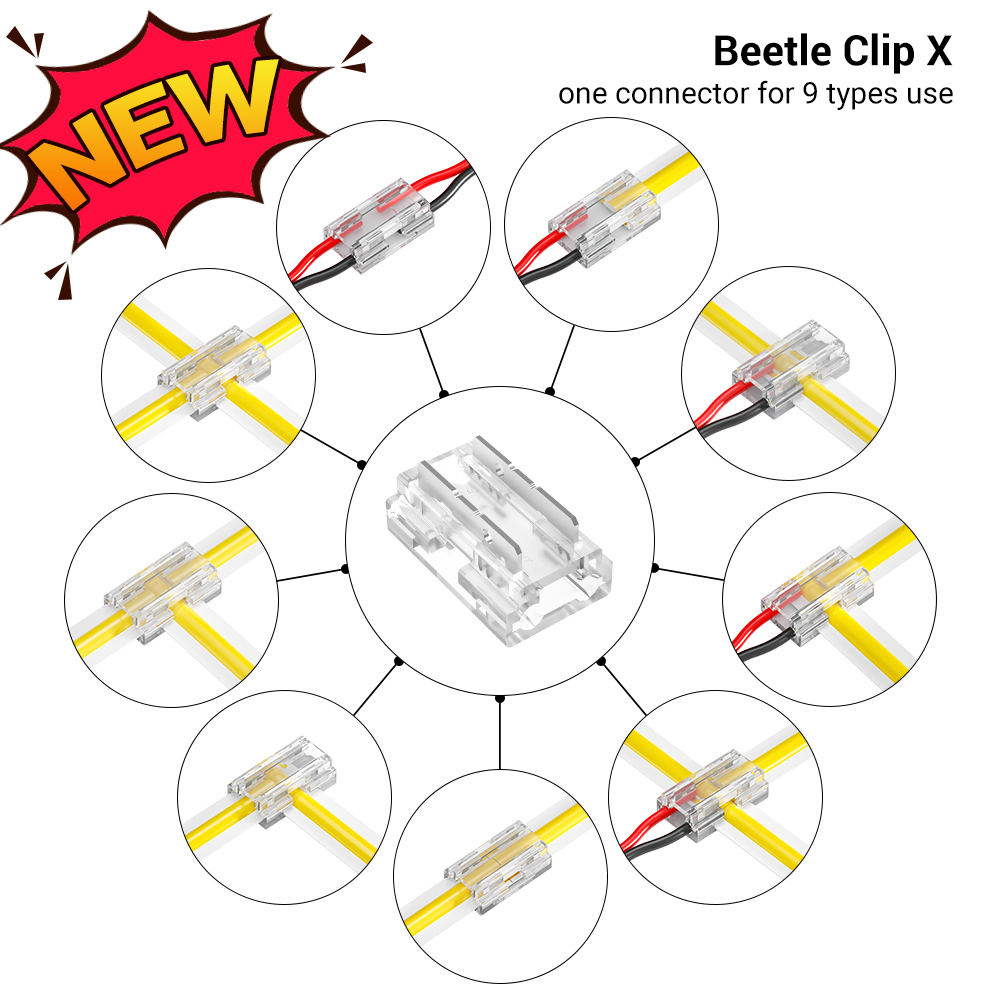

  • The connector has nine types of connections
  • Each pin can pierce and firmly fix the FPC of LED strip
  • Transparent design to achieve ultimate lighting effect
  • Can works in narrow space like Aluminum Channel, Furniture Groove and Gaps, etc.

Visit our Youtube Playlist for more application video

Send Inquiry
  • share
QuoteSend Inquiry

Options

Item NO.PCB WidthTypesLED Strip
BCX-5-25mmUniform ModelCOB/HD SMD
BCX-8-28mmUniform ModelCOB/HD SMD
BCX-10-210mmUniform ModelCOB/HD SMD

Technical Data

LED Strip Width5mm / 8mm / 10mm
Pin Quantity2 Pins
MaterialPolycarbonate(PC), Phosphor bronze
LED Strip IP RatingIP20
Working VoltageDC3~24V
Working CurrentMax 5A (@TA=30℃ PCB=3OZ Wire Gauge=20AWG)
Wire Gauge20~22AWG (OD ≤ 1.80mm)
LED Strip Thickness0.25~0.35mm
LED Light TypeCOB/HD SMD
LED DensityNo limit to COB, SMD Depends on SMD Size
Standard Package MethodPE Bag + Label + Carton

Certificate

Coming soon.

Package Option

Normal BagBoxHanging HeadFace Seal BlisterClamshell Blister
White Box​White Box​Hanging Head bag package for led strip connectorFace Seal BlisterClamshell Blister
