IP20 Flat Pin Pigtail Connector

Customization Options:Package, Wire, Adapter and more

Brief Info

  • Types: Pigtail Connector
  • IP Rating: IP20
  • PIN No: 2Pins-6Pins
  • Workable Wire: 22~20 AWG/0.32~0.52 mm2
  • Wire Type: Customization
  • Certificate: CE, ROHS
  • share

Options

Model NO. Types Connective Position
WFP-DM20 Pigtail Male connector with wire with Lock fix
HFP-DM20 Pigtail Male connector with wire with Lock fix
WFP-M20 Pigtail Male connector with wire without Lock fix
HWFP-M20 Pigtail Male connector with wire without Lock fix
WFP-DF20 Pigtail Female connector with wire with Lock fix
HFP-DF20 Pigtail Female connector with wire with Lock fix
WFP-F20 Pigtail Female connector with wire without Lock fix
HFP-F20 Pigtail Female connector with wire without Lock fix

Technical Data

Item NO. Type Pin Avilable Workable Wire Wire Shape Voltage & Current Housing Color Material Fixing Method IP Rating
WFP-DM20 Male Pigtail connector 2Pins-6Pins 22~20AWG/0.32~0.35mm² Flat Parallel / Round Sheathed 36V/2A White PVC& Copper & Plastic With Lock IP20
HFP-DM20 Male Pigtail connector 2Pins-6Pins 22~20AWG/0.32~0.35mm² Flat Parallel / Round Sheathed 36V/2A Black PVC& Copper & Plastic With Lock IP20
WFP-M20 Male Pigtail connector 2Pins-6Pins 22~20AWG/0.32~0.35mm² Flat Parallel / Round Sheathed 36V/2A White PVC& Copper & Plastic Without Lock IP20
HWFP-M20 Male Pigtail connector 2Pins-6Pins 22~20AWG/0.32~0.35mm² Flat Parallel / Round Sheathed 36V/2A Black PVC& Copper & Plastic Without Lock IP20
WFP-DF20 Female Pigtail connector 2Pins-6Pins 22~20AWG/0.32~0.35mm² Flat Parallel / Round Sheathed 36V/2A White PVC& Copper & Plastic With Lock IP20
HFP-DF20 Female Pigtail connector 2Pins-6Pins 22~20AWG/0.32~0.35mm² Flat Parallel / Round Sheathed 36V/2A Black PVC& Copper & Plastic With Lock IP20
WFP-F20 Female Pigtail connector 2Pins-6Pins 22~20AWG/0.32~0.35mm² Flat Parallel / Round Sheathed 36V/2A White PVC& Copper & Plastic Without Lock IP20
HFP-F20 Female Pigtail connector 2Pins-6Pins 22~20AWG/0.32~0.35mm² Flat Parallel / Round Sheathed 36V/2A Black PVC& Copper & Plastic Without Lock IP20

How to use

Certificates

Title Language Size Type
LED Pin Connector -16AE04024E 003 EMC Cert.
English 1520kb pdf

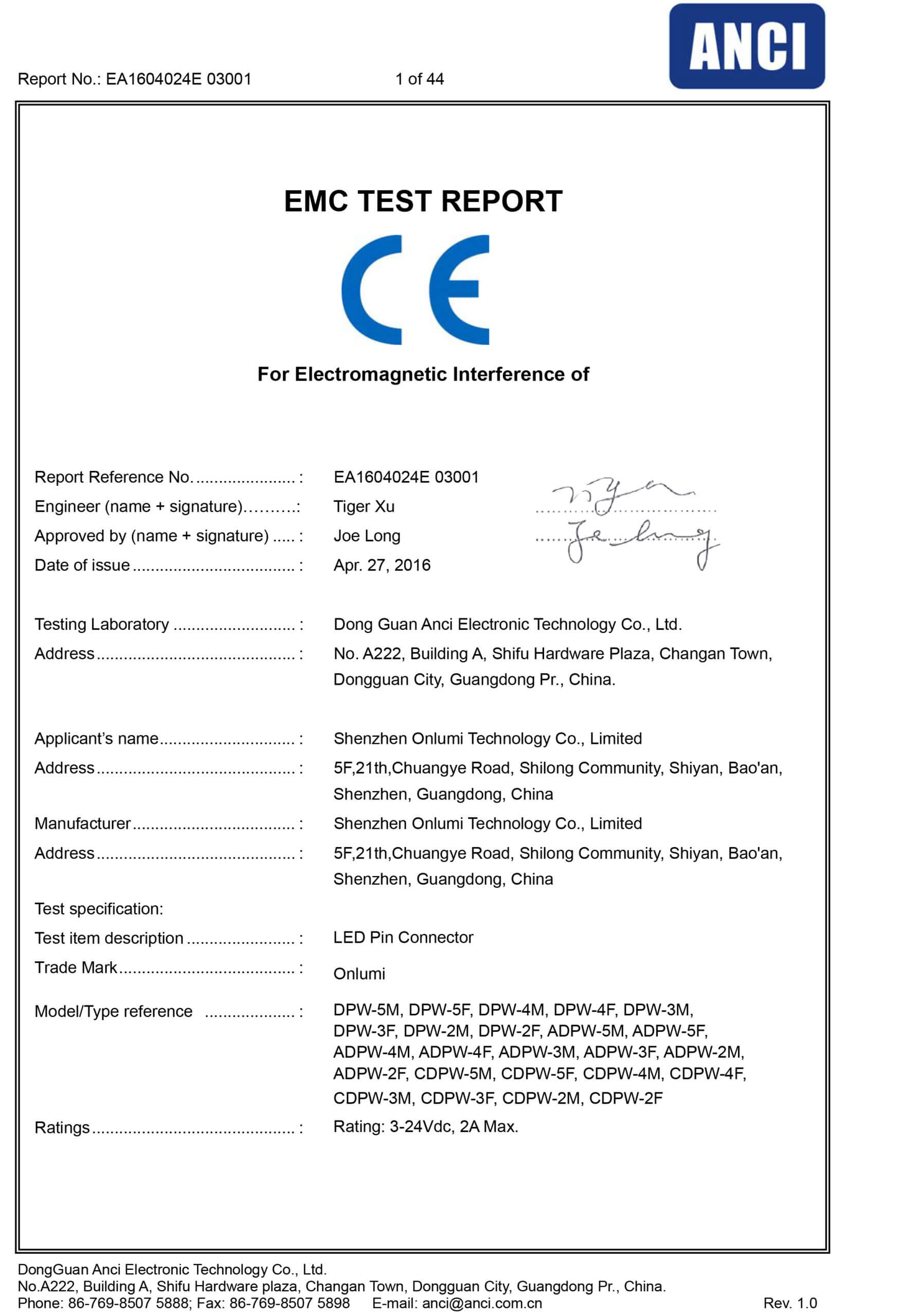

Flat-Pin-Connector-EA1604024E-03001-EMC-Report-1-scaled
English 357kb pdf
LED-Pin-Connector-CA1604024R-03001-RoHS-report
English 1024kb pdf

IP20 Flat Pin Pigtail Connector

Here comes another pigtail connector with a flat pin and IP20 rating. Provide an uninterrupted power supply to low-voltage devices with these quality flat pin pigtail connectors. The IP20 connectors are touch-proof and can be used inside the residence without any fear. If you are looking for waterproof power connectors, check out the collection of IP66 and IP67 power connectors of Onlumi. The IP20 pigtail connector comes in form of a male connector with and without a lock, and a female connector with and without a lock fix. The male pigtail connector and female pigtail connector come in 2pin, 3pin, 4pin, 5pin, and 6pin connectors. The workable wire is 22 – 20AWG in a flat parallel or round sheathed shape. The connector wire is customizable. The customer can choose the length and color of the wire from the various options. These connectors consist of PVC, copper, and plastic, and are available in black and white colors. These pigtail connectors have the marking of CE and RoHS. The price of these connectors is very reasonable. Get a quote from the supplier to find out the price details. You can also chat with customer support professionals to get further information about the product.
