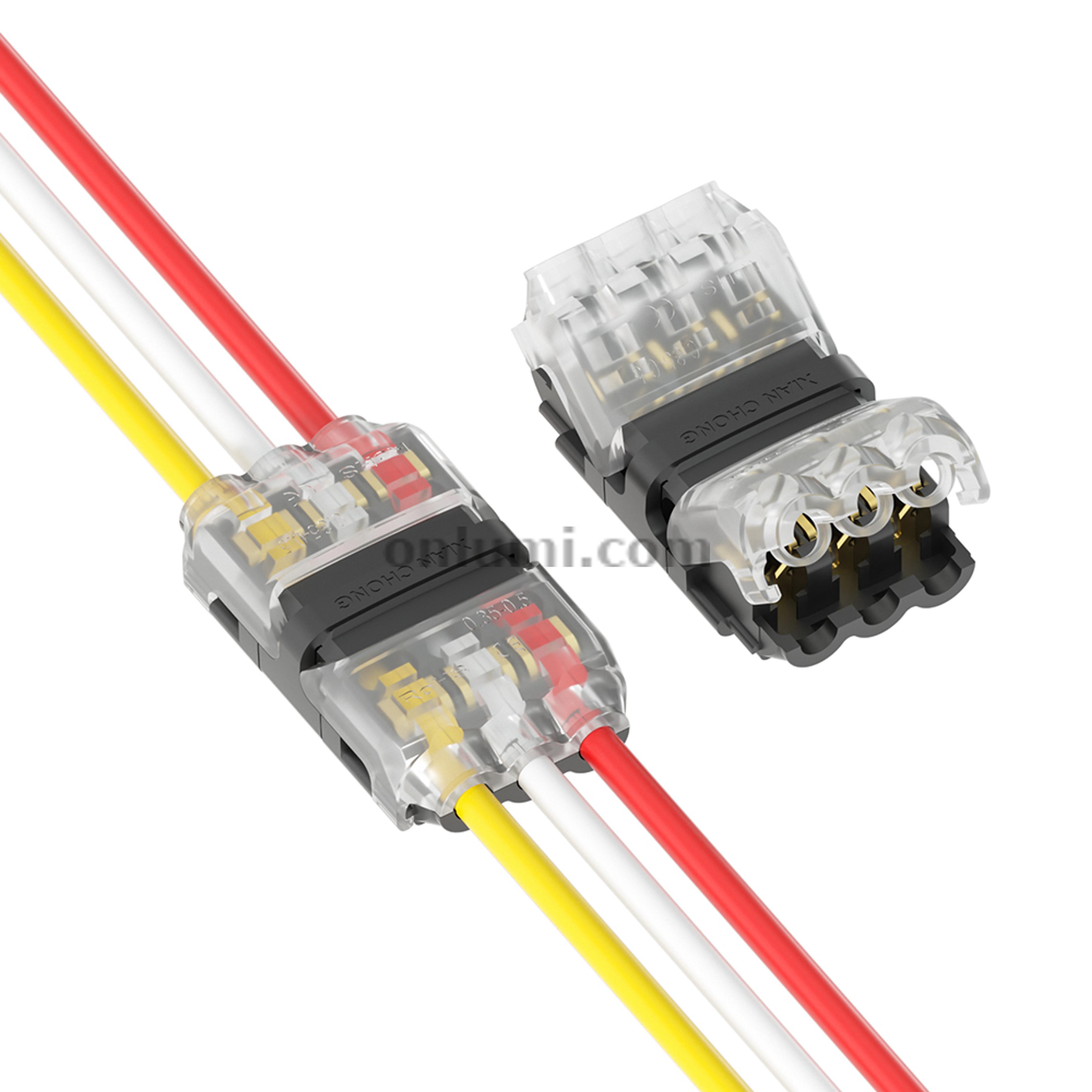

WJ 3 Pins I Shape
Brief Info
- Three-core inline connector - the highest core count offered as a straight joint in this range.
- Three wires land in one press, so a cable with an earth or extra control core needs only one joint.
- No stripping, no twisting, no taping and no soldering - a standard clamp is all it takes to fit.
- Insulation-displacement contacts bite straight through the jacket, gripping each conductor at multiple points.
- Each conductor sits in an open groove rather than a closed channel, so it is guided from below but not constrained on every side.
- Supplied with a clear cap so you can check every wire is seated.
- Contact us for more details or to check which size suits your wiring.
Specification
Item NO.
WJ-I-3C
Connection Type
I Shape
Pin Quantity
3 Pins
Workable Wire Gauge
PVC 22~20 AWG / Teflon (PTFE) 20~18 AWG
Workable Cross Section
PVC 0.32~0.52 mm² / Teflon (PTFE) 0.52~0.78 mm²
Workable Wire OD
Below 2.1mm
Wire Type
Multi Stranded Flat Wire, Solid Wire
Contact Method
Pierce Contact
Contact Points per Conductor
4 points
Rated Voltage
300V
Max Current of Pin
9A
Working Current
22AWG(0.32mm²):2.5A, 20AWG(0.52mm²):3.5A, 18AWG(0.78mm²):6A
Dimension
25*14.3*6.7mm
Housing Color
Transparent, Black
Material
Polycarbonate(PC), High-precision Phosphor Copper
Housing Deform Temperature
80℃
Flame Retardant Rating
UL94v-2
Working Environment
-10~45℃
IP Rating
IP40
Certificates
CE, RoHs
