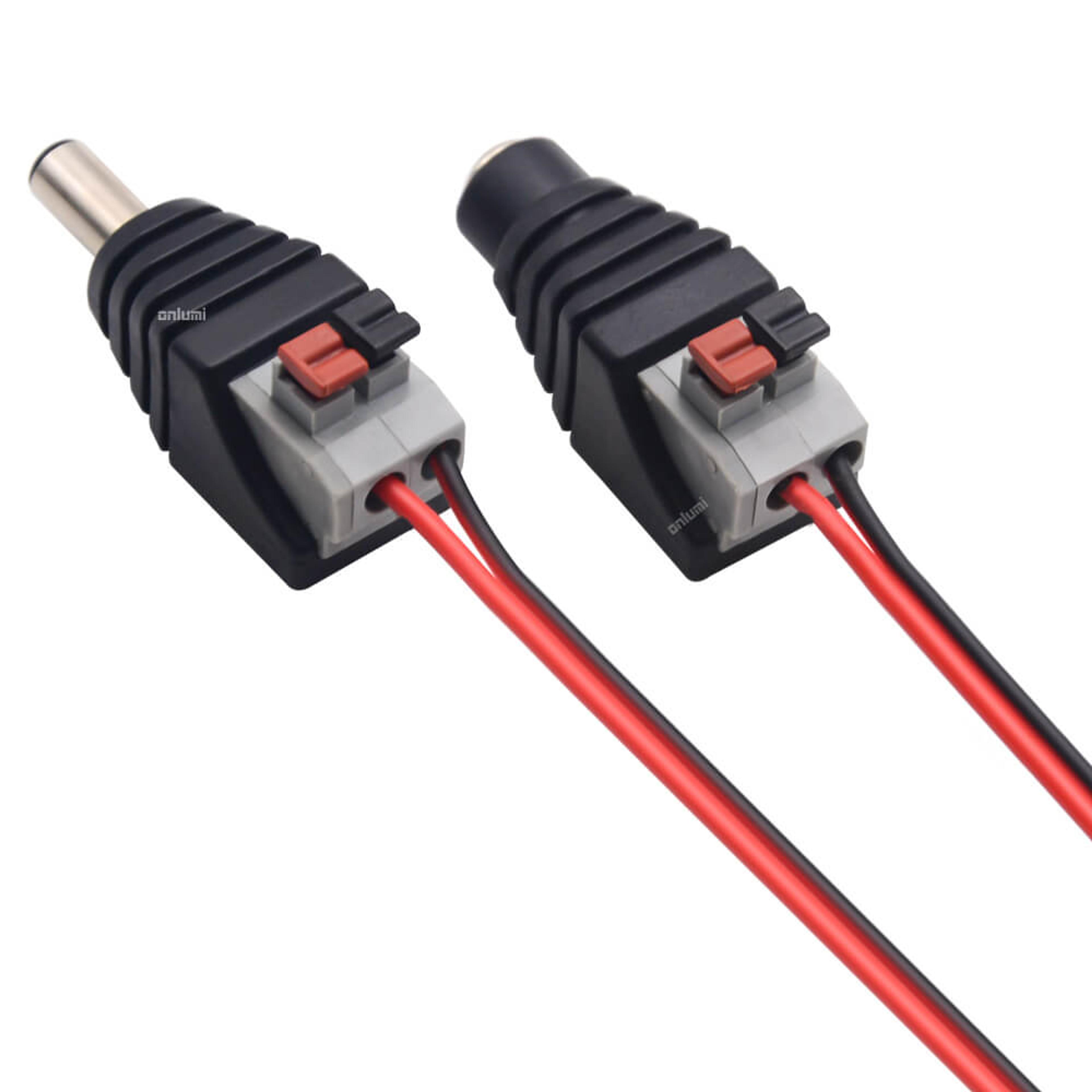

IP20 Button Fixing DC5521
Brief Info
- A wiring terminal that connects loose wire to a standard DC 5.5×2.1 barrel connector without soldering - available in both male (plug) and female (jack) versions.
- Commonly used to wire loose leads from LED power supplies or security/CCTV equipment onto a DC 5.5×2.1 barrel connector on site, or to re-terminate or extend an existing DC run.
- Push-button, tool-free wiring - no screwdriver: press to insert the wire, press to release it.
- Fast to wire and rewire on site; direction and length are decided on the spot.
- Solder-free, and can be inserted and released repeatedly for reuse.
- Contact us for more details or to check which size suits your wiring.
Specification
Item NO.
DCBM-2BT
DCBF-2BT
Type
DC Male
DC Female
DC Plug Model
5521
Wiring Method
Button Fixing
With Wire or NOT
Not with wire
Pin Quantity
2 Pins
Workable Wire Gauge
24~18 AWG
Workable Cross Section
0.2~0.78 mm²
0.2~0.78 mm²
Wire Type
Multi Stranded Flat Wire
Max Working Voltage
DC48V
Max Current of Pin
3.5A
3.5A
Dimension
42*15*15mm
42*15*15mm
Housing Color
Grey, Black, Red
Material
PVC, Copper
TEMP. Resistance
45℃
Working Environment
-10~45℃
IP Rating
IP20
