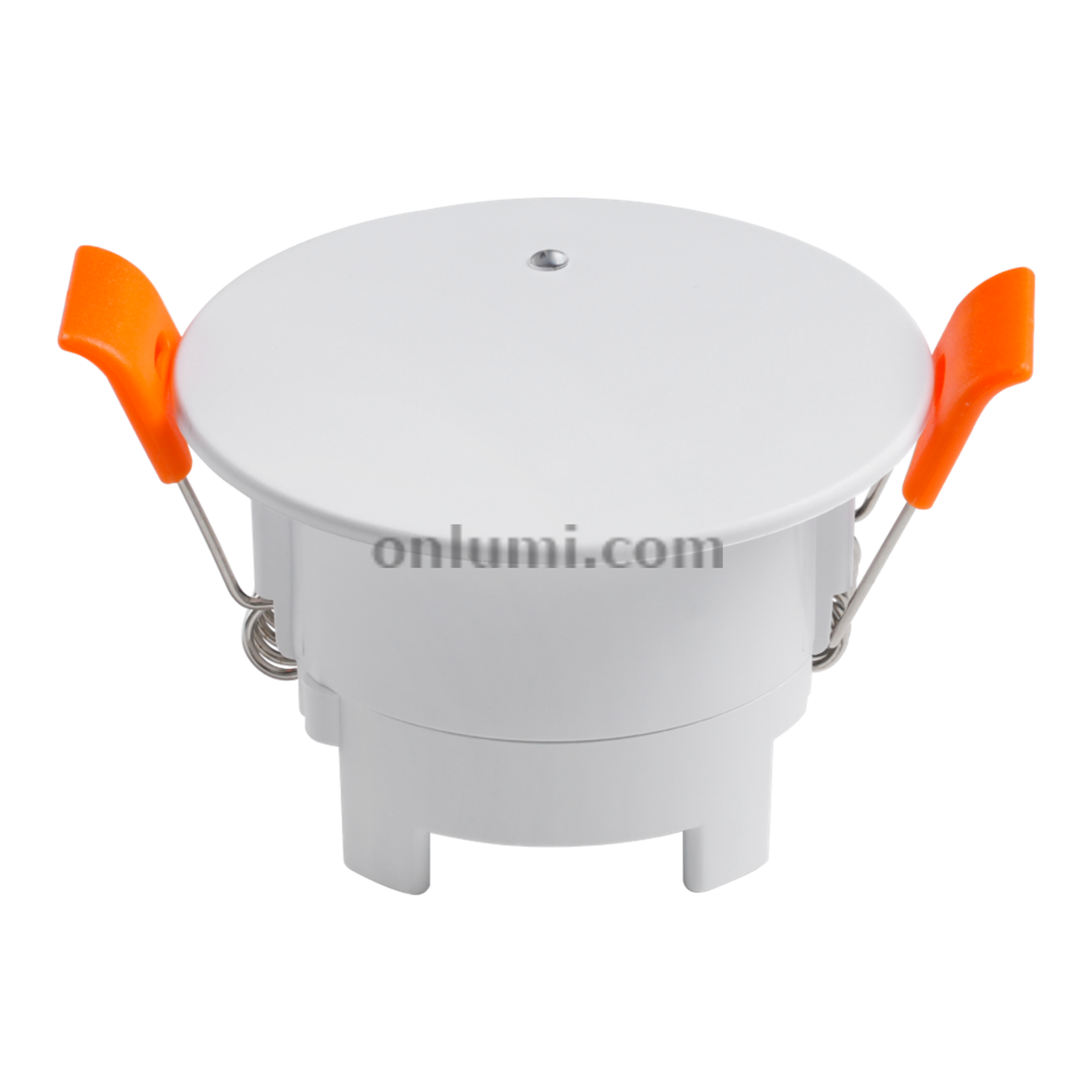

Ceiling mmWave Human Presence Sensor
Brief Info
- Recessed ceiling mmWave presence sensor wired to mains power - lights stay on while someone is there and switch off when the room empties.
- Typical uses: hotel guest rooms, bedrooms and living rooms, offices and commercial spaces.
- Unlike PIR, it keeps detecting people who sit still, so the lights will not drop out while you read, work or nap.
- Two frequency bands: 24GHz picks up breathing-level micro-motion, 5.8GHz reports presence only.
- Two ways to connect: WiFi direct, or Zigbee via a Tuya gateway.
- Contact us for more details or to check how it fits your existing smart system.
Specification
Item NO.
CL-RD5.8G-WIFI
CL-RD5.8G-ZIGBEE
CL-RD24G-WIFI
CL-RD24G-ZIGBEE
Series
ZY-M100 CL
Sensing Technology
5.8GHz / 24GHz mmWave Radar
Sensing Angle
120°
Sensing Distance
max 10 meters
Sensitivity Option
10 Levels
Illuminance Sensing Range
0~10000 lux
Power Input
AC80-250V
Working Temperature
-10~40° C
Working Humidity
5~95% RH
IP Rating
IP44
Material
ABS+PC
Body Size
62*62*39mm
Frequency
5.8GHz
5.8GHz
24GHz
24GHz
Communication Protocol
WIFI 2.4GHz
Zigbee 3.0
WIFI 2.4GHz
Zigbee 3.0
Function
Only Presence Detection
Only Presence Detection
Presence / Micro Move Detection
Presence / Micro Move Detection
Distance Accuracy
±50cm
±50cm
±10cm
±10cm
Detection Accuracy
High
High
Higher
Higher
Linkage Option
Illumination Value, Motion
Illumination Value, Motion
Distance, Illumination Value, Motion, Still
Distance, Illumination Value, Motion, Still
Remark
/
Need to work with Tuya gateway
/
Need to work with Tuya gateway
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
