End Caps for IP67 IP68 LED Strip

End cap that seals the cut end of IP67/IP68 sleeved LED strip, closing off the opening left where the tube was cut.
Typical uses: finishing a cut-to-length outdoor run, facade and landscape lighting, pool and deck surrounds.
Two versions per width: a solid cap to close off a run, and a bottom-holed cap that lets the power lead pass through while still sealing.
Bonded with silicone glue rather than pushed on, so the joint holds its seal through temperature swings and outdoor exposure.
Sizes follow the outer diameter of the sleeve, not the PCB width - please measure the sleeved strip before ordering.
Contact us for more details or to check which size suits your strips.

Specification

Item NO.

8EC

8EC-1

10EC

10EC-1

12EC

12EC-1

Strip Type

IP67/IP68

Inner Width

10.1mm

12.1mm

14.1mm

Color

White

Material

Silicon, PC

Fixing Method

Silicone glue

Type

No Holes

Holes in the bottom

No Holes

Holes in the bottom

No Holes

Holes in the bottom

Outer Dimension

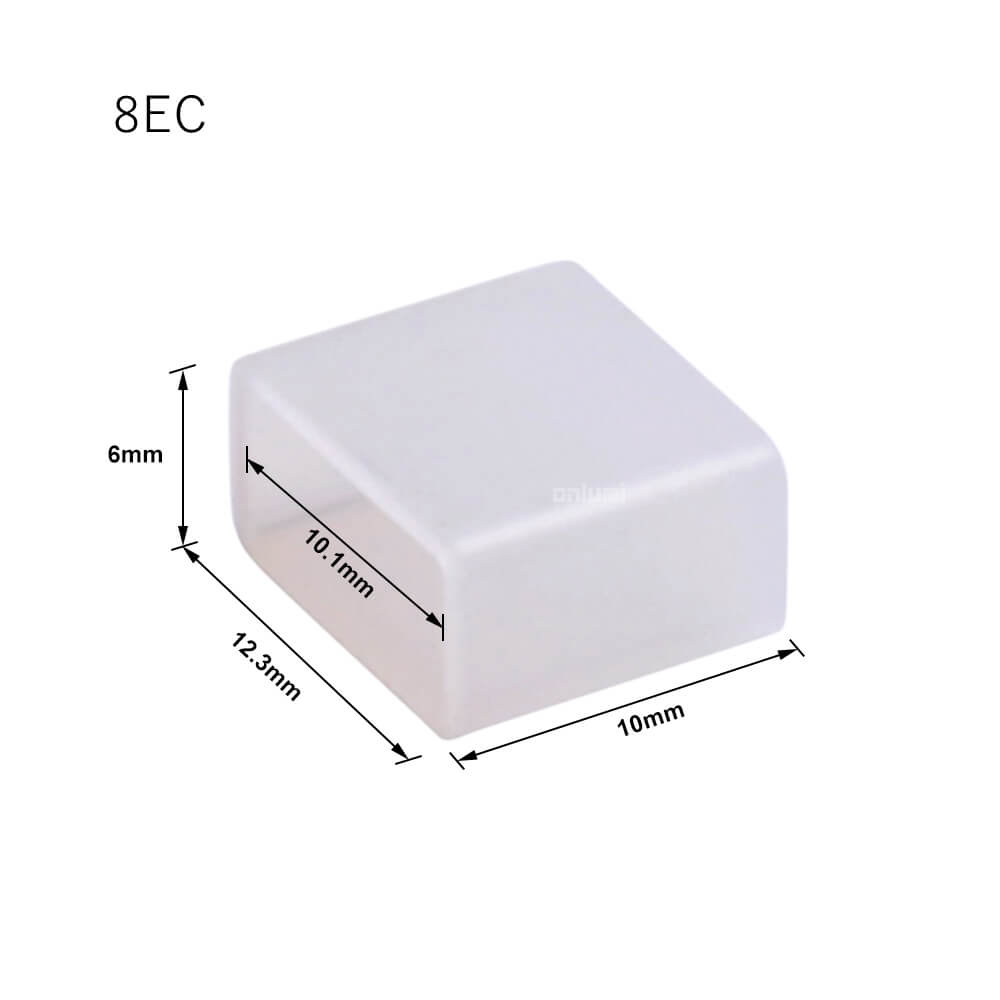

6*12.3*10mm

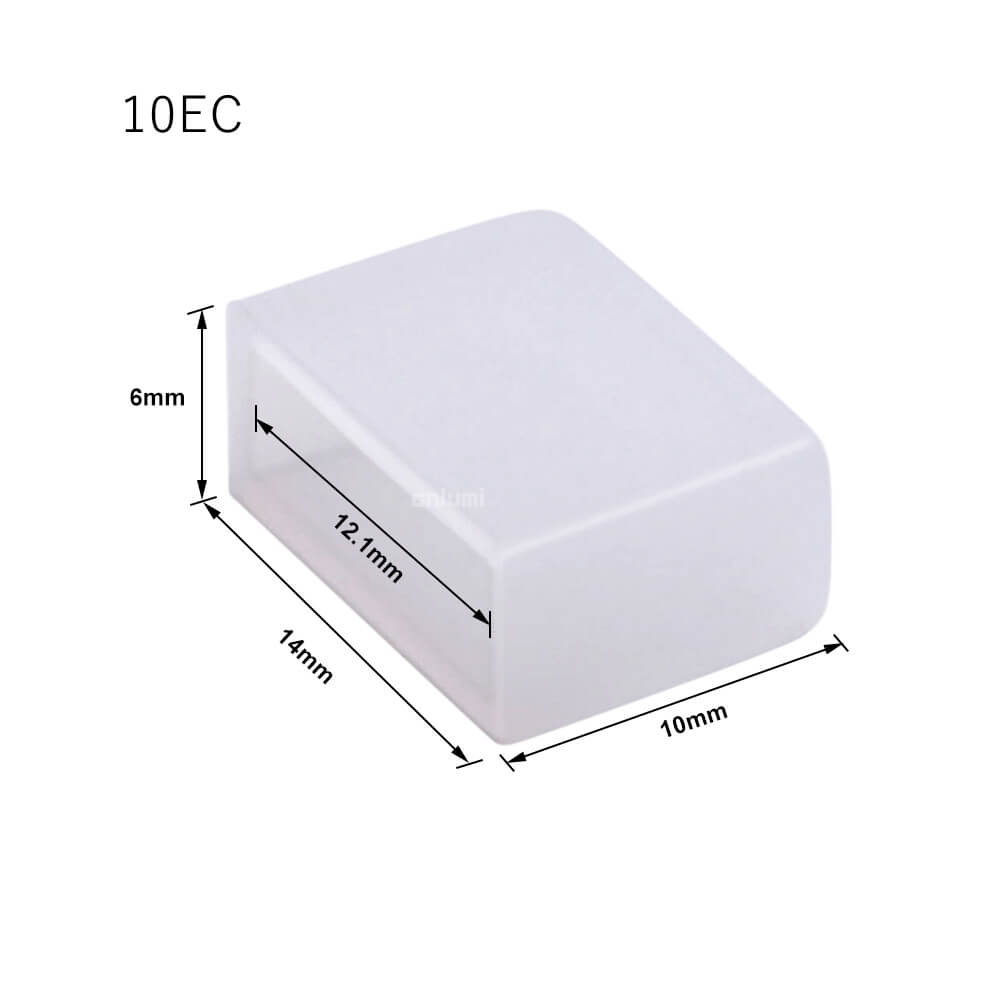

6*14*10mm

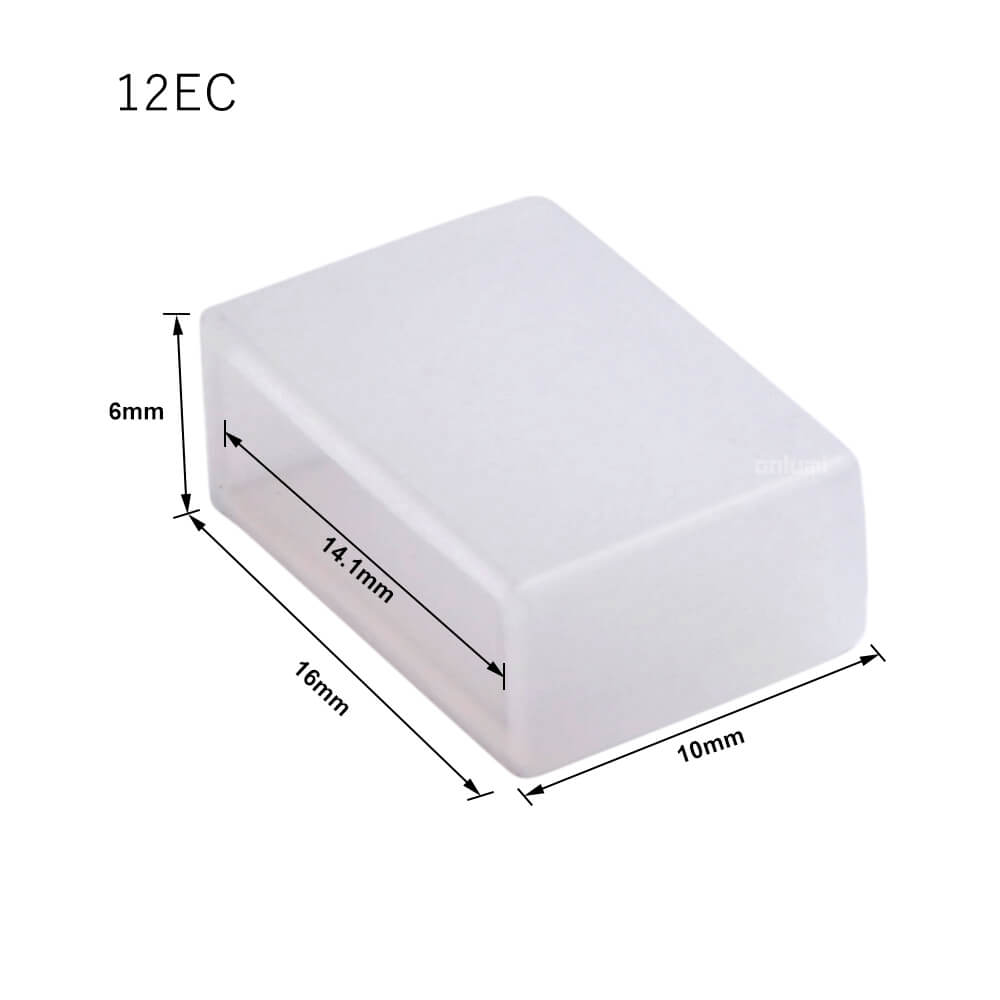

6*16*10mm

Flame Retardant

UL-94-V0
