2 Pins PVC Transparent 2468 Multiple Package
Brief Info
- Two-core transparent ribbon wire with clear insulation.
- For single-color (mono) LED strips and fixtures and other single-circuit lighting, and for general two-wire wiring in other fields.
- Two cores laid flat and parallel as a ribbon wire — neatly arranged and easy to route.
- Stranded tin-plated copper conductors with flame-retardant PVC insulation resist oxidation, take solder easily, and stay soft and easy to bend.
- A UL Recognized AWM wiring material.
- Clear insulation shows the conductors inside for a clean look.
- Multiple wire gauges, lengths, and packaging options — from samples to full bulk rolls, all made to order.
- Contact us for more details or to check which spec fits your project.
Specification
Part NO.
18A2P-CC-6M
18A2P-CC-10M
18A2P-CC-25M
18A2P-CC-50M
18A2P-CC-100M
18A2P-CC-305M
Wire Gauge
18AWG
18AWG
18AWG
18AWG
18AWG
18AWG
Wire Cross Section
0.78mm²
0.78mm²
0.78mm²
0.78mm²
0.78mm²
0.78mm²
Length
6M
10M
25M
50M
100M
305M
Package Method
Tie, Bag, Plastic Reel
Tie, Bag, Plastic Reel
Tie, Bag, Box
Tie, Bag, Box, Plastic Spool
Plastic Spool, Film Wrap
Plastic Spool, Film Wrap
Core Quantity
2 Pins
Insulation Color
Transparent
UL Style
2468
Construction Type
Flat Multi Strand

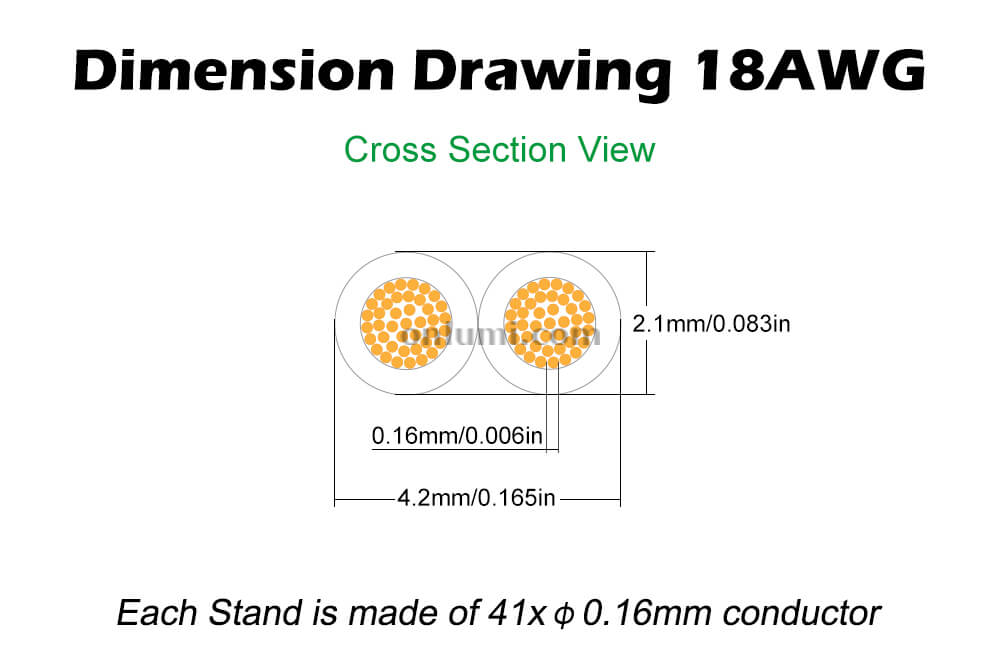

Conductor Construction
41*0.16mm
41*0.16mm
41*0.16mm
41*0.16mm
41*0.16mm
41*0.16mm
Conductor Diameter
1.0mm
1.0mm
1.0mm
1.0mm
1.0mm
1.0mm
Insulation Thickness
0.43mm
0.43mm
0.43mm
0.43mm
0.43mm
0.43mm
Outer Diameter (OD)
2.0mm
2.0mm
2.0mm
2.0mm
2.0mm
2.0mm
Conductor Material
Tinned Copper
Insulating Material
PVC (Polyvinyl Chloride)
Flame Rating
VW-1, FT1
Rated Voltage
300V
Temperature Resistance
80℃
Operating Temperature
-20℃ ~ +80℃
Conductor Resistance
≤ 21.4 Ω/km (20℃)
Withstand Voltage Test
2000V AC / 1 Minute, No Breakdown
Insulation Resistance
≥ 20 MΩ·km (20℃)
Flexibility (Bending Test)
≥ 10,000 cycles (UL 1581)
Aging Resistance
No cracking after 80℃ × 168h
Printed Marking
2468 AWM 80°C 300V VW-1 FT1
Part NO.
20A2P-CC-6M
20A2P-CC-10M
20A2P-CC-25M
20A2P-CC-50M
20A2P-CC-100M
20A2P-CC-305M
Wire Gauge
20AWG
20AWG
20AWG
20AWG
20AWG
20AWG
Wire Cross Section
0.52mm²
0.52mm²
0.52mm²
0.52mm²
0.52mm²
0.52mm²
Length
6M
10M
25M
50M
100M
305M
Package Method
Tie, Bag, Plastic Reel
Tie, Bag, Plastic Reel
Tie, Bag, Box
Tie, Bag, Box, Plastic Spool
Plastic Spool, Film Wrap
Plastic Spool, Film Wrap
Core Quantity
2 Pins
Insulation Color
Transparent
UL Style
2468
Construction Type
Flat Multi Strand

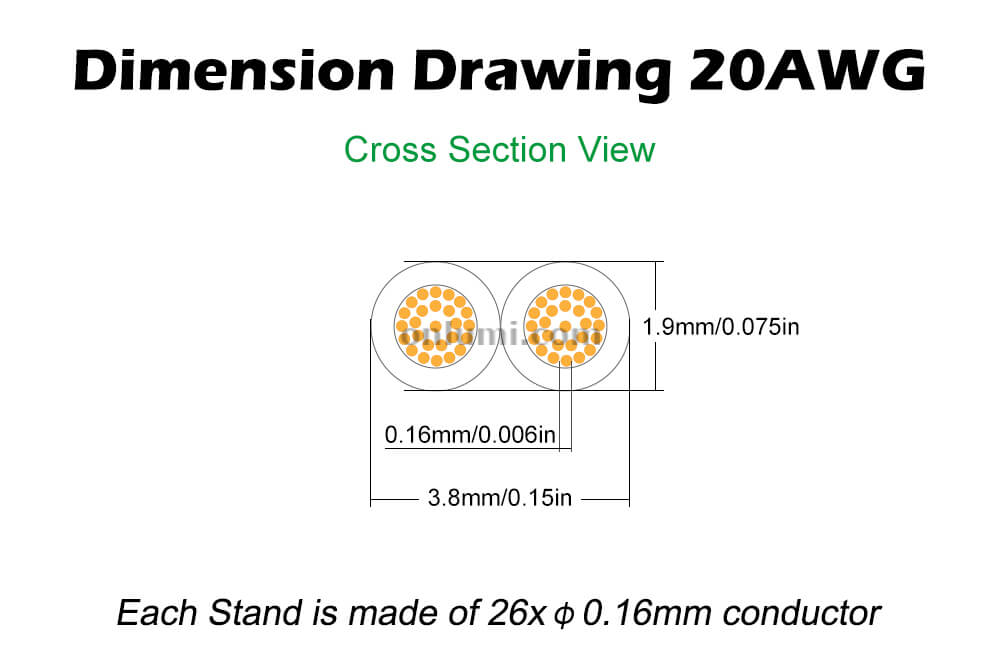

Conductor Construction
26*0.16mm
26*0.16mm
26*0.16mm
26*0.16mm
26*0.16mm
26*0.16mm
Conductor Diameter
0.81mm
0.81mm
0.81mm
0.81mm
0.81mm
0.81mm
Insulation Thickness
0.43mm
0.43mm
0.43mm
0.43mm
0.43mm
0.43mm
Outer Diameter (OD)
1.8mm
1.8mm
1.8mm
1.8mm
1.8mm
1.8mm
Conductor Material
Tinned Copper
Insulating Material
PVC (Polyvinyl Chloride)
Flame Rating
VW-1, FT1
Rated Voltage
300V
Temperature Resistance
80℃
Operating Temperature
-20℃ ~ +80℃
Conductor Resistance
≤ 21.4 Ω/km (20℃)
Withstand Voltage Test
2000V AC / 1 Minute, No Breakdown
Insulation Resistance
≥ 20 MΩ·km (20℃)
Flexibility (Bending Test)
≥ 10,000 cycles (UL 1581)
Aging Resistance
No cracking after 80℃ × 168h
Printed Marking
2468 AWM 80°C 300V VW-1 FT1
Part NO.
22A2P-CC-6M
22A2P-CC-10M
22A2P-CC-25M
22A2P-CC-50M
22A2P-CC-100M
22A2P-CC-305M
Wire Gauge
22AWG
22AWG
22AWG
22AWG
22AWG
22AWG
Wire Cross Section
0.32mm²
0.32mm²
0.32mm²
0.32mm²
0.32mm²
0.32mm²
Length
6M
10M
25M
50M
100M
305M
Package Method
Tie, Bag, Plastic Reel
Tie, Bag, Plastic Reel
Tie, Bag, Box
Tie, Bag, Box, Plastic Spool
Plastic Spool, Film Wrap
Plastic Spool, Film Wrap
Core Quantity
2 Pins
Insulation Color
Transparent
UL Style
2468
Construction Type
Flat Multi Strand

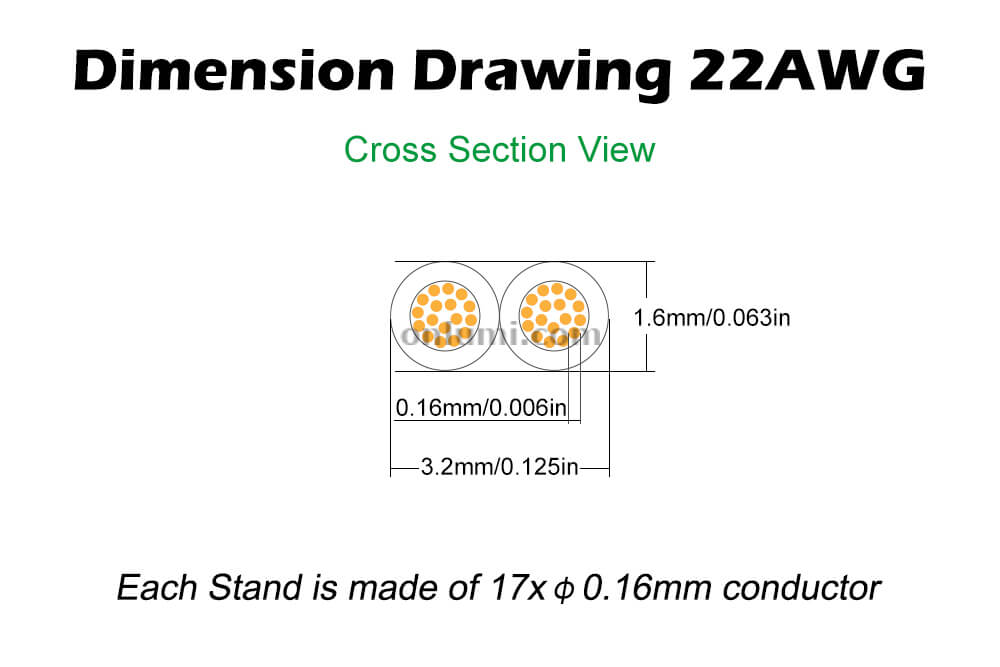

Conductor Construction
17*0.16mm
17*0.16mm
17*0.16mm
17*0.16mm
17*0.16mm
17*0.16mm
Conductor Diameter
0.64mm
0.64mm
0.64mm
0.64mm
0.64mm
0.64mm
Insulation Thickness
0.42mm
0.42mm
0.42mm
0.42mm
0.42mm
0.42mm
Outer Diameter (OD)
1.6mm
1.6mm
1.6mm
1.6mm
1.6mm
1.6mm
Conductor Material
Tinned Copper
Insulating Material
PVC (Polyvinyl Chloride)
Flame Rating
VW-1, FT1
Rated Voltage
300V
Temperature Resistance
80℃
Operating Temperature
-20℃ ~ +80℃
Conductor Resistance
≤ 21.4 Ω/km (20℃)
Withstand Voltage Test
2000V AC / 1 Minute, No Breakdown
Insulation Resistance
≥ 20 MΩ·km (20℃)
Flexibility (Bending Test)
≥ 10,000 cycles (UL 1581)
Aging Resistance
No cracking after 80℃ × 168h
Printed Marking
2468 AWM 80°C 300V VW-1 FT1
Interested in this product?
Contact us for pricing and technical support
