WJX 3 Pins T Connection
Pierce to Contactwith wire guiding tunnelno stripping insulation needed
Brand:XIAN CHONG
MOQ:contact us for more details about MOQ
Customizable Options:PackageLabelConnector
Brief Info

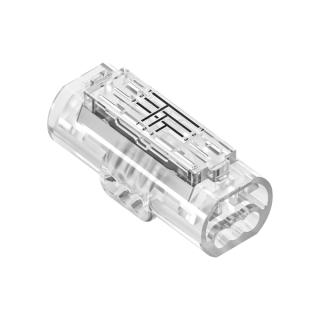

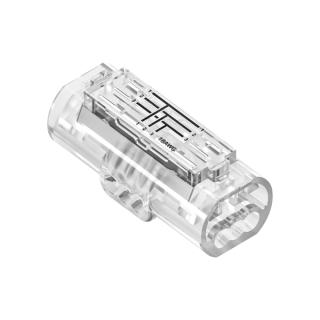

- Three-core T-tap connector - branch all three conductors off a main run without cutting it.
- The highest core count offered as a T-tap; four cores and above are inline only.
- Solderless and no stripping - a standard crimping plier is all it takes to fit.
- A fully enclosed wire channel wraps each conductor on all sides, holding it on centre so it cannot drift out of position while the connector is pressed shut.
- Safe by design - the conductor stays covered, so nothing live is exposed while connecting.
- Made from flame-retardant material, so it will not feed a fire.
- A transparent housing lets you confirm at a glance that every wire is seated.
- Contact us for more details or to check which size suits your wiring.
Specification
Item NO.
WJX-CC3-2022-T
WJX-CC3-1820-T
Connection Type
T Connection
Pin Quantity
3 Pins
Workable Wire Gauge
PVC 22~20 AWG / Teflon (PTFE) 20~18 AWG
PVC 20~18 AWG / Teflon (PTFE) 18~16 AWG
Workable Cross Section
PVC 0.32~0.52 mm² / Teflon (PTFE) 0.52~0.78 mm²
PVC 0.52~0.78 mm² / Teflon (PTFE) 0.78~1.32 mm²
Workable Wire OD
Max 1.8mm
Max 2.1mm
Wire Type
Multi Stranded Flat Wire
Contact Method
Pierce Contact
Rated Voltage
300V
Max Current of Pin
9A
9A
Working Current
22AWG(0.32mm²):2.5A, 20AWG(0.52mm²):3.5A, 18AWG(0.78mm²):6A
20AWG(0.52mm²):3.5A, 18AWG(0.78mm²):6A, 16AWG(1.32mm²):8A
Dimension
26*10.8*8.6mm
26*10.8*8.6mm
Housing Color
Transparent
Material
Polycarbonate(PC), Phosphor bronze
Conductor Surface Treatment
Nickel plating
Housing Deform Temperature
80℃
Working Environment
-10~45℃
IP Rating
IP40
Certificates
CE, RoHs, REACH
