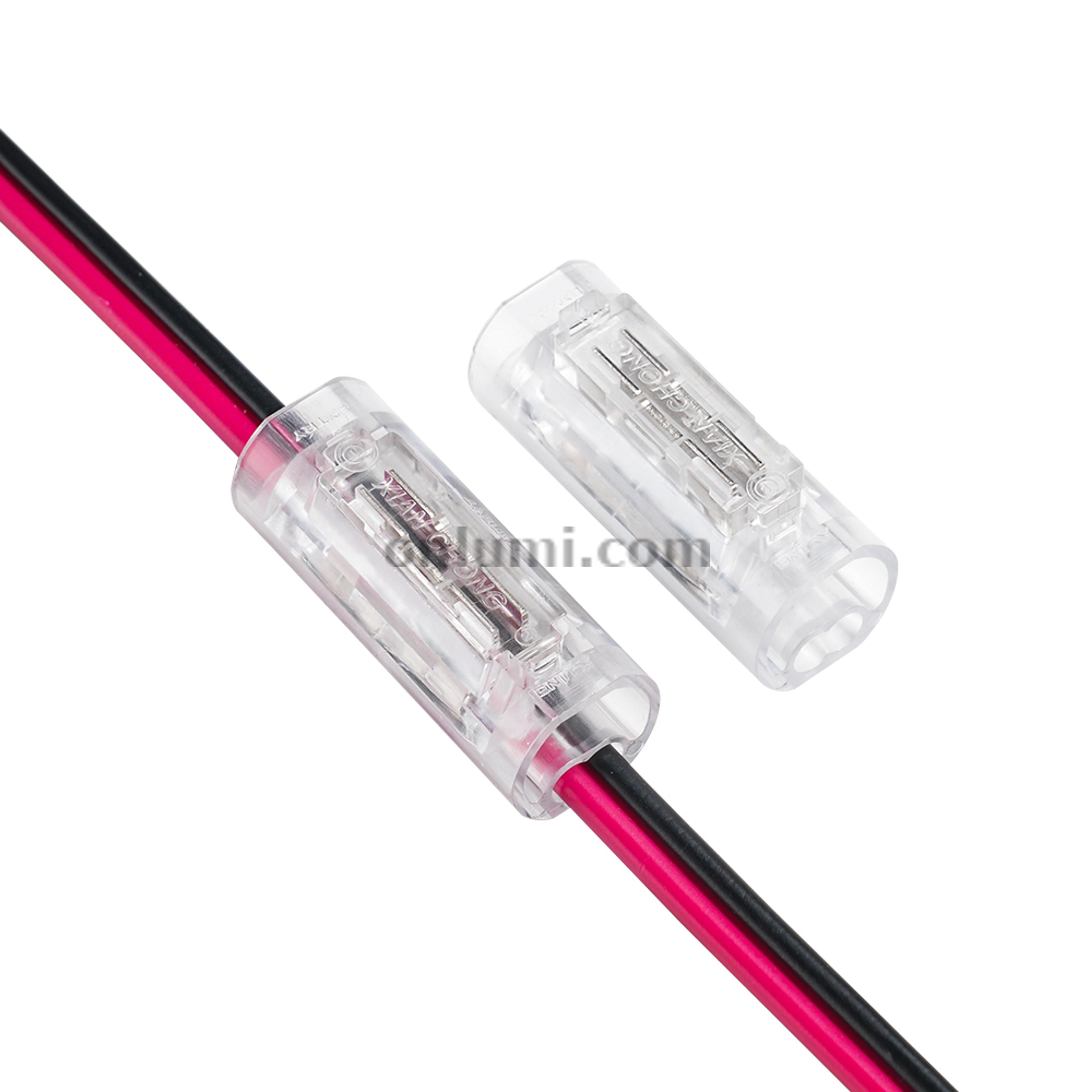

WJX 2 Pins I Shape Straight
Brief Info
- Two-core inline connector - joins both conductors of a two-wire cable in a single press.
- Both cores land at once, so there is no pairing up wires one at a time.
- Solderless and no stripping - a standard crimping plier is all it takes to fit.
A fully enclosed wire channel wraps each conductor on all sides, holding it on centre so it cannot drift out of position while the connector is pressed shut.
- Safe by design - the conductor stays covered, so nothing live is exposed while connecting.
- Made from flame-retardant material, so it will not feed a fire.
- A transparent housing lets you confirm at a glance that every wire is seated.
- Contact us for more details or to check which size suits your wiring.
Specification
Item NO.
WJX-CC2-22
WJX-CC2-1820


Connection Type
Straight Connection
Pin Quantity
2 Pins
Workable Wire Gauge
22 AWG
20~18 AWG
Workable Cross Section
0.32 mm²
0.52~0.78 mm²
Workable Wire OD
OD1.8~1.9mm
OD2.0~2.2mm
Wire Type
Multi Stranded Flat Wire
Contact Method
Pierce Contact
Rated Voltage
300V
Max Current of Pin
3.5A
8A
Current Note
The actual working current is limited by the wire's capability it works with
Dimension
23*9*8.3mm
23*9*8.3mm
Housing Color
Transparent
Material
Polycarbonate(PC)、Phosphor bronze
Conductor Surface Treatment
Nickel plating
Housing Deform Temperature
80℃
Working Environment
-10~45℃
IP Rating
IP40
Certificates
CE、RoHs、REACH
