WJ 2 Pins T Shape
Brief Info

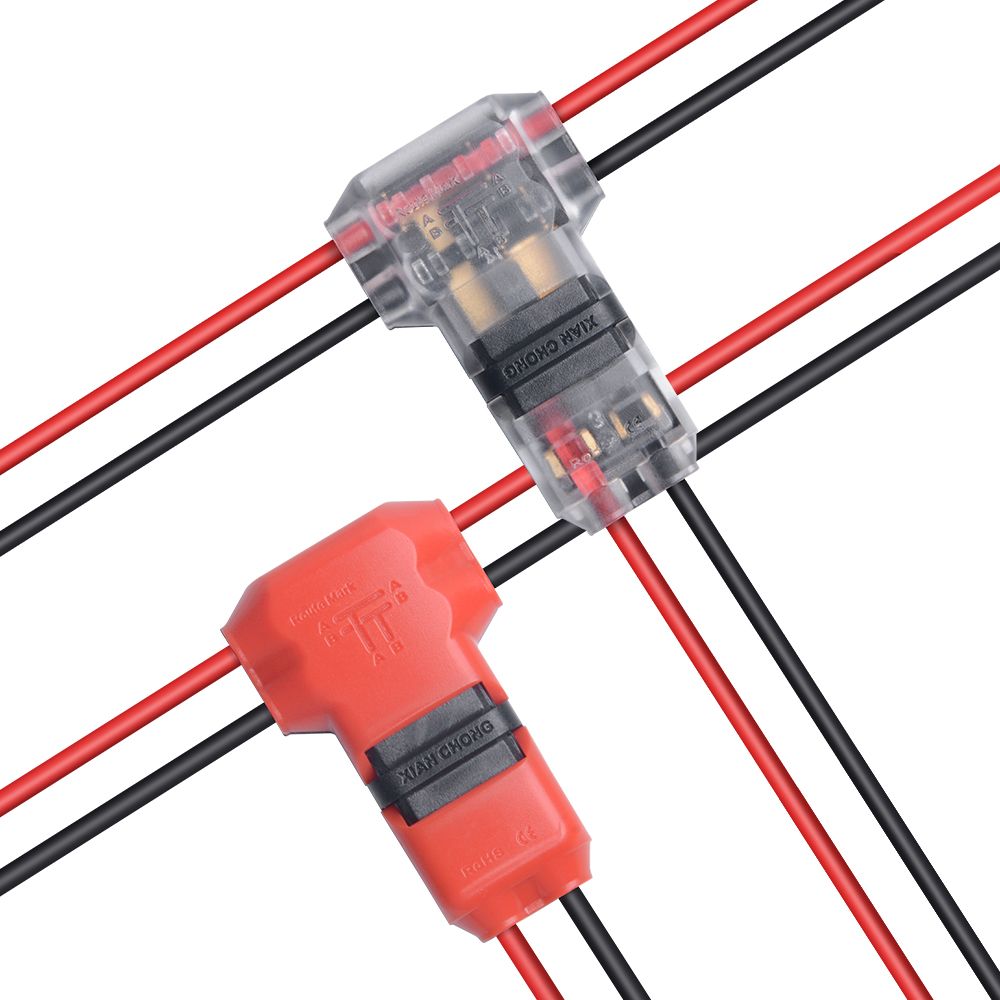

- Two-core T-tap connector - branch both conductors off a main run without cutting it.
- Feed several sections from one trunk line, with a heavier-duty version available where the trunk carries more current.
- No stripping, no twisting, no taping and no soldering - a standard clamp is all it takes to fit.
- Insulation-displacement contacts bite straight through the jacket, gripping each conductor at multiple points.
- Each conductor sits in an open groove rather than a closed channel, so it is guided from below but not constrained on every side.

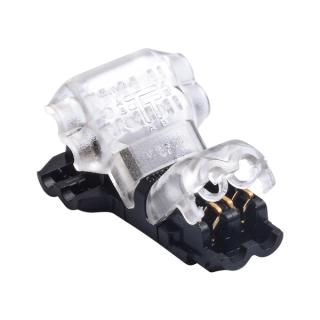

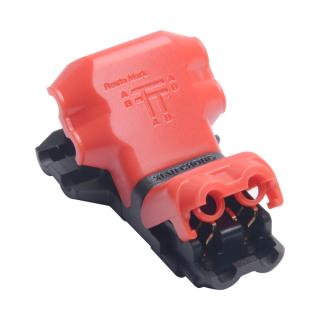

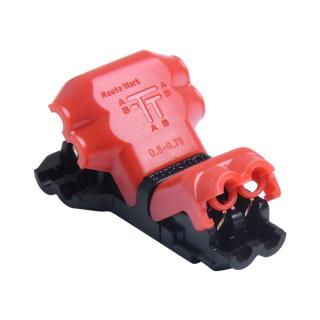

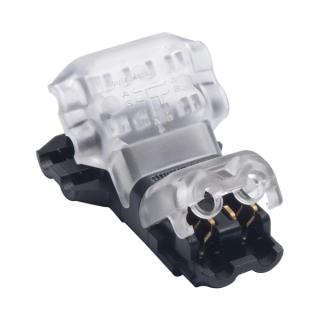

- Available with a clear cap to check the wire is seated, or a red cap to tell circuits apart on site.
- Contact us for more details or to check which size suits your wiring.
Specification
Item NO.
WJ-T-2C
WJ-T-2R
WJ-T-2AC
WJ-T-2AR
Connection Type
T Shape
Pin Quantity
2 Pins
Workable Wire Gauge
Main (D): PVC 20~18AWG / Teflon (PTFE) 18~16AWG; Branch (G): PVC 22~20AWG / Teflon (PTFE) 20~18AWG
Main (D): PVC 20~18AWG / Teflon (PTFE) 18~16AWG; Branch (G): PVC 22~20AWG / Teflon (PTFE) 20~18AWG
Main (D): PVC 18~16AWG / Teflon (PTFE) 16~14AWG; Branch (G): PVC 20~18AWG / Teflon (PTFE) 18~16AWG
Main (D): PVC 18~16AWG / Teflon (PTFE) 16~14AWG; Branch (G): PVC 20~18AWG / Teflon (PTFE) 18~16AWG
Workable Cross Section
Main (D): PVC 0.52~0.78 mm² / Teflon (PTFE) 0.78~1.32 mm²; Branch (G): PVC 0.32~0.52 mm² / Teflon (PTFE) 0.52~0.78 mm²
Main (D): PVC 0.52~0.78 mm² / Teflon (PTFE) 0.78~1.32 mm²; Branch (G): PVC 0.32~0.52 mm² / Teflon (PTFE) 0.52~0.78 mm²
Main (D): PVC 0.78~1.32 mm² / Teflon (PTFE) 1.32~2.0 mm²; Branch (G): PVC 0.52~0.78 mm² / Teflon (PTFE) 0.78~1.32 mm²
Main (D): PVC 0.78~1.32 mm² / Teflon (PTFE) 1.32~2.0 mm²; Branch (G): PVC 0.52~0.78 mm² / Teflon (PTFE) 0.78~1.32 mm²
Workable Wire OD
Below 2.1mm
Below 2.1mm
Below 3.0mm
Below 3.0mm
Wire Type
Multi Stranded Flat Wire, Solid Wire
Contact Method
Pierce Contact
Contact Points per Conductor
4 points
Rated Voltage
300V
Max Current of Pin
9A
9A
15A
15A
Working Current
22AWG(0.32mm²):2.5A, 20AWG(0.52mm²):3.5A, 18AWG(0.78mm²):6A, 16AWG(1.32mm²):8A
22AWG(0.32mm²):2.5A, 20AWG(0.52mm²):3.5A, 18AWG(0.78mm²):6A, 16AWG(1.32mm²):8A
20AWG(0.52mm²):3.5A, 18AWG(0.78mm²):6A, 16AWG(1.32mm²):8A
20AWG(0.52mm²):3.5A, 18AWG(0.78mm²):6A, 16AWG(1.32mm²):8A
Dimension
28.6*16.6*6.7mm
28.6*16.6*6.7mm
39.8*23.6*9.2mm
39.8*23.6*9.2mm
Housing Color
Transparent, Black
Red, Black
Transparent, Black
Red, Black
Material
Polycarbonate(PC), High-precision Phosphor Copper
Flame Retardant Rating
UL94v-2
Working Environment
-10~45℃
IP Rating
IP40
Certificates
CE, RoHs
