IP20 Screw Fixing DC5521
Brief Info

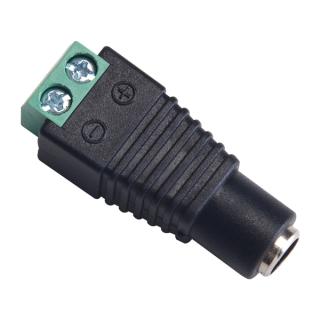

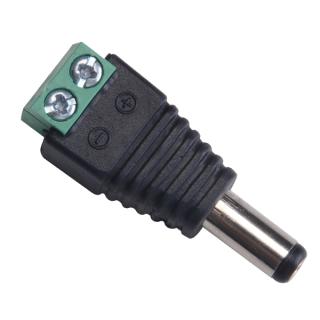

- A wiring terminal that connects loose wire to a standard DC 5.5×2.1 barrel connector without soldering - available in both male (plug) and female (jack) versions.
- Commonly used to wire loose leads from LED power supplies or security/CCTV equipment onto a DC 5.5×2.1 barrel connector on site, or to re-terminate or extend an existing DC run.
- A screw clamps the conductor for a firm, pull-resistant hold - suited to vibration or long-term fixed installs.
- Back off the screw to swap the wire or reuse the terminal; wiring direction and length are decided on site.
- Contact us for more details or to check which size suits your wiring.
Specification
Item NO.
DCBM-2SC
DCBF-2SC
DCBM-A2SC
DCBF-A2SC
Type
DC Male
DC Female
DC Male
DC Female
DC Plug Model
5521
Wiring Method
Screw Fixing
With Wire or NOT
Not with wire
Pin Quantity
2 Pins
Workable Wire Gauge
24~18 AWG
Workable Cross Section
0.2~0.78 mm²
0.2~0.78 mm²
0.22~0.78 mm²
0.22~0.78 mm²
Wire Type
Multi Stranded Flat Wire
Max Working Voltage
DC48V
Max Current of Pin
3.5A
3.5A
5A
5A
Dimension
36.7*13.8*12mm
35.9*14.6*12mm
37*13.8*11.3mm
35.3*14.6*11.3mm
Housing Color
Black, Green
Material
PVC, Copper
TEMP. Resistance
45℃
Working Environment
-10~45℃
IP Rating
IP20
