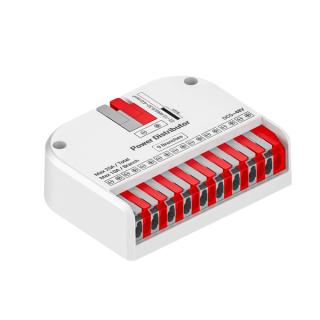

HPD High Power Distributor
Brief Info

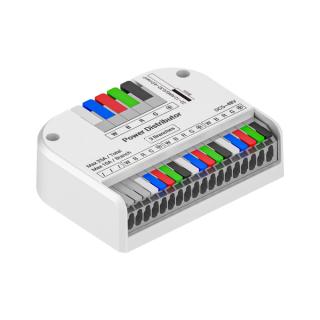

- High-power distributor that gathers one heavy-current supply into a single hub and splits it into multiple outputs; offered by strip color in Mono, CCT, RGB, RGBW and RGBCW versions, with up to 9 branches.
- Suited to exhibition and advertising displays, furniture lighting and security installations.

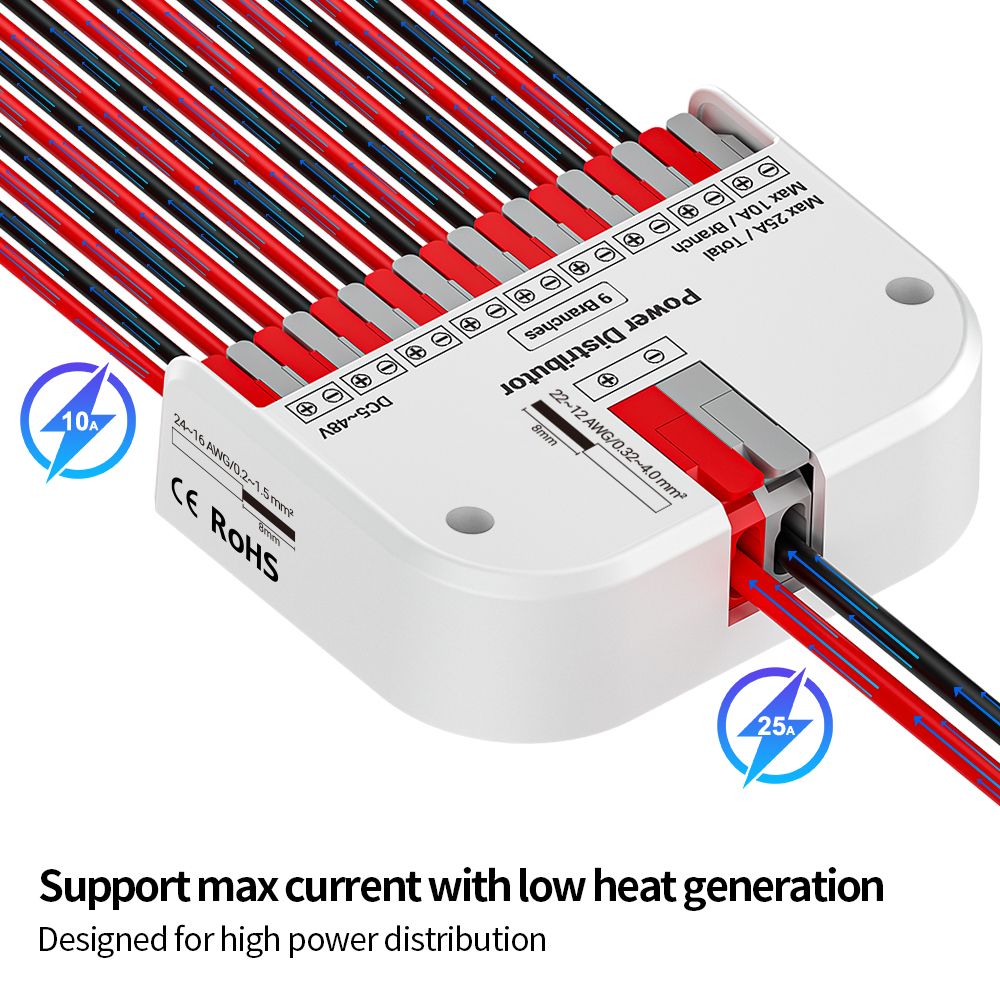

- Built for high-current supply — the total current is shared across branches, keeping heat low.

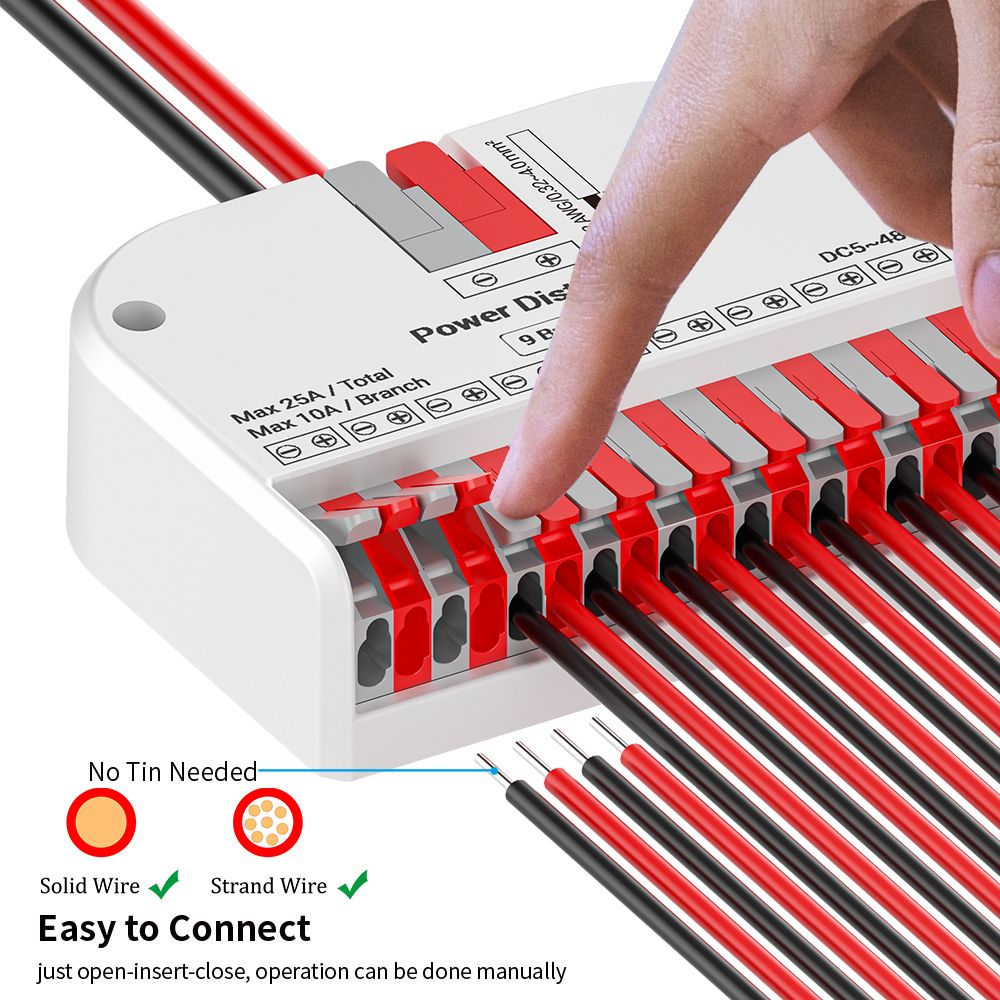

- Terminal connection: open, insert, close — done by hand with no soldering.
- The terminal grips the wire firmly, so the conductor is not easily pulled loose.

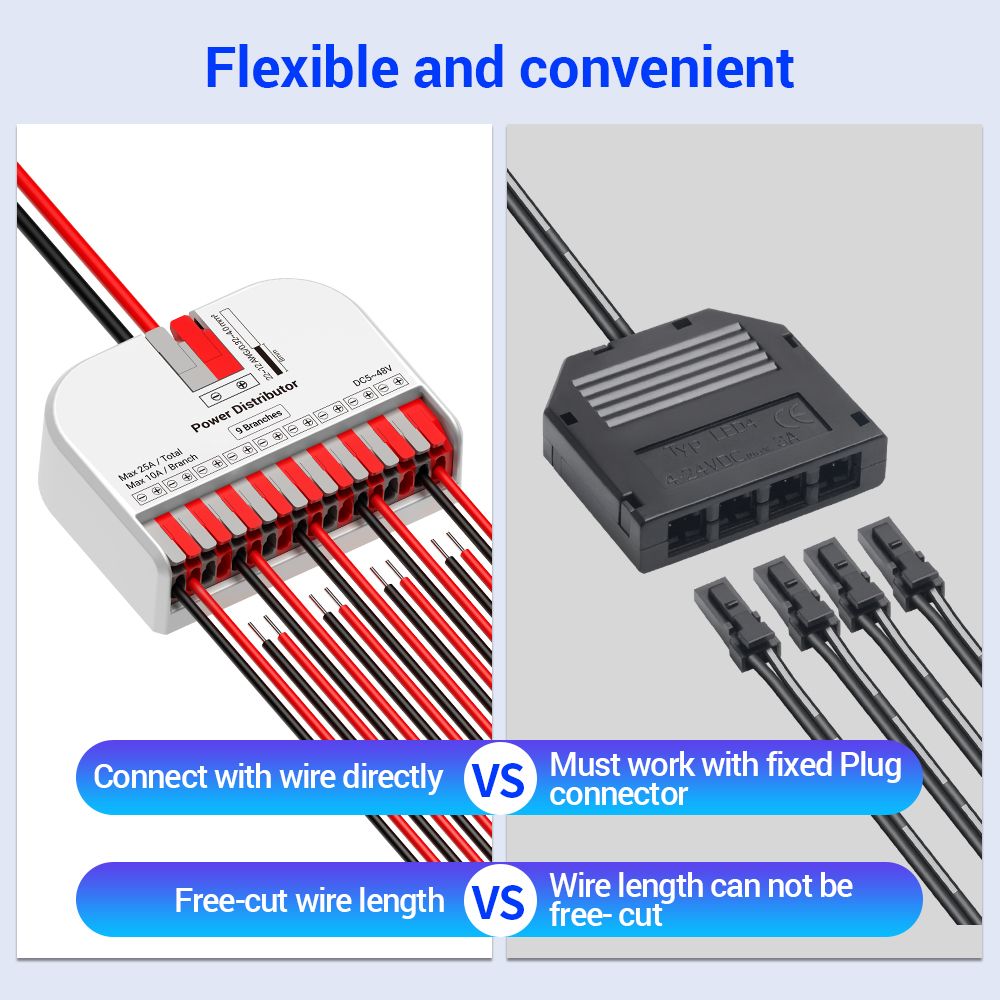

- No fixing plug required; wires connect directly and can be cut to length on site.

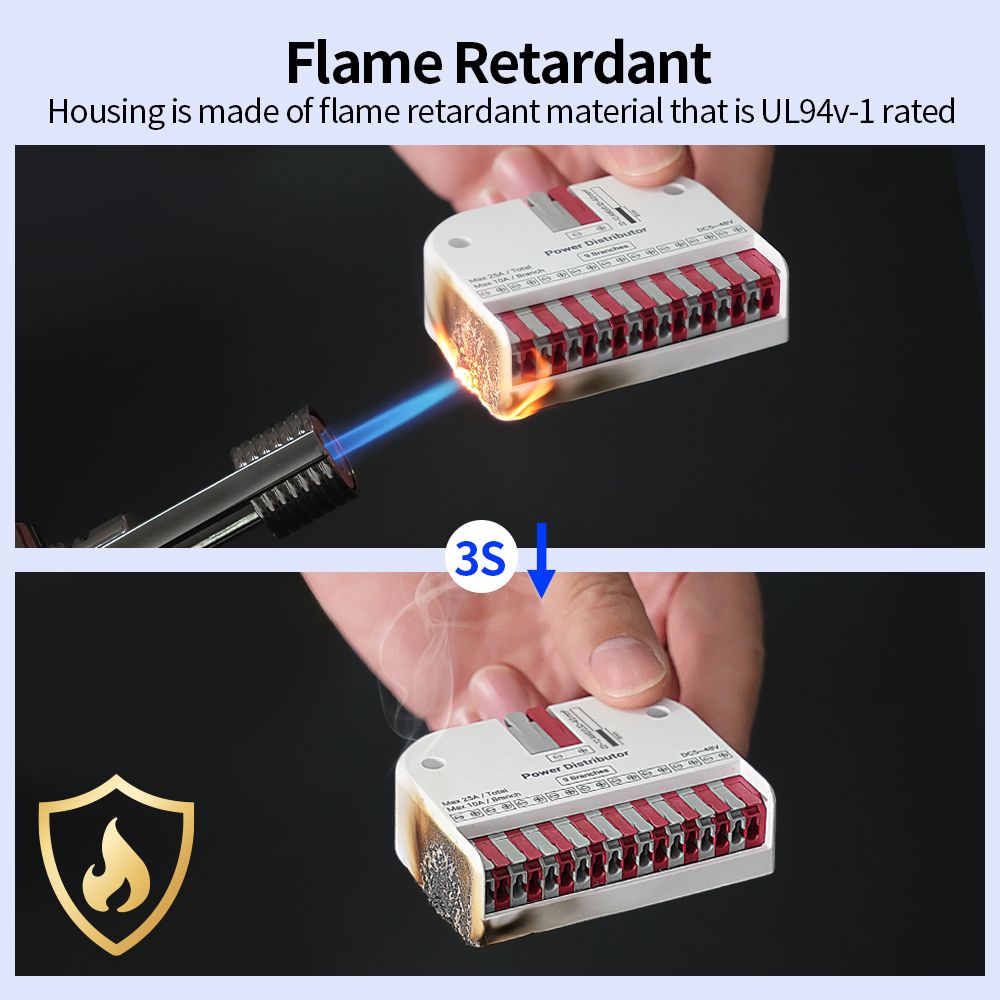

- Housing is made of flame-retardant material.
- Contact us for more details or to find the distributor that fits your project.
Specification
Item NO.
HPD-MONO-19
HPD-CCT-16
HPD-RGB-14
HPD-RGBW-13
HPD-RGBCW-13
Fit Light Color
MONO (2 Pins)
CCT (3 Pins)
RGB (4 Pins)
RGBW (5 Pins)
RGBCW (6 Pins)
Output Branches
1 input to 9 outputs
1 input to 6 outputs
1 input to 4 outputs
1 input to 3 outputs
1 input to 3 outputs
Connection Type
Terminal Connection
Working Voltage
DC5~48V
Max Working Current
25A
Max Current per Output Port
10A
Circuit Connection
Parallel
Input Wire Gauge
22~12AWG
Input Cross Section
0.32~4.0 mm²
Output Wire Gauge
24~16AWG
Output Cross Section
0.2~1.5 mm²
Applicable Wire Type
Solid Wire, Strand Wire
Soldering Required
No Tin Needed

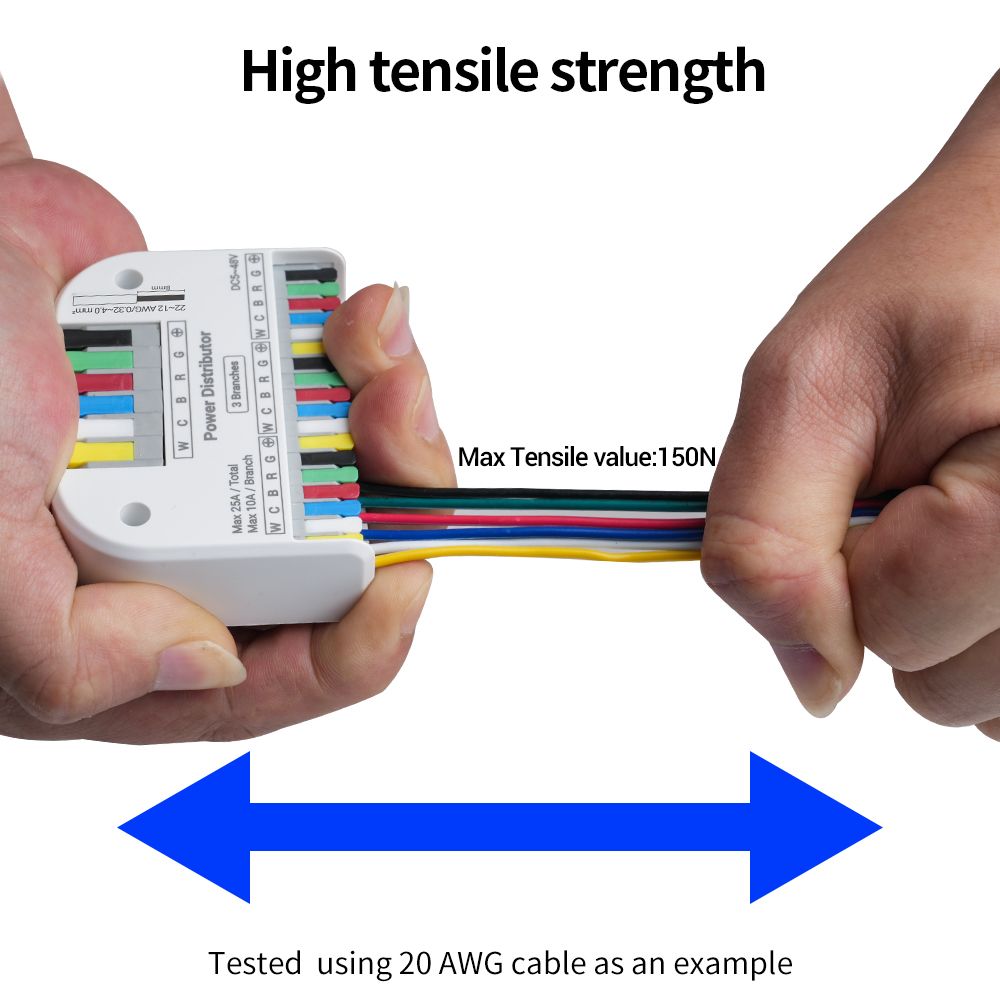

Max Tensile Value
150N (tested with 20AWG cable)
Input Holes
2~6 holes optional
Output Holes
18 holes
Outer Dimension
69*53*20mm
Shape
Rounded Corner Square
Housing Color
White
Material
Polycarbonate(PC), PVC, Copper
Housing Temperature Resistance
80℃
Flame Retardant Rating
UL94V-1
Fixing Method
Screw Fixing
Working Temperature
-10 ~ 45℃
Working Environment
Indoor
With Wire or Not
No Wire
Certification
CE, RoHS
How to Use

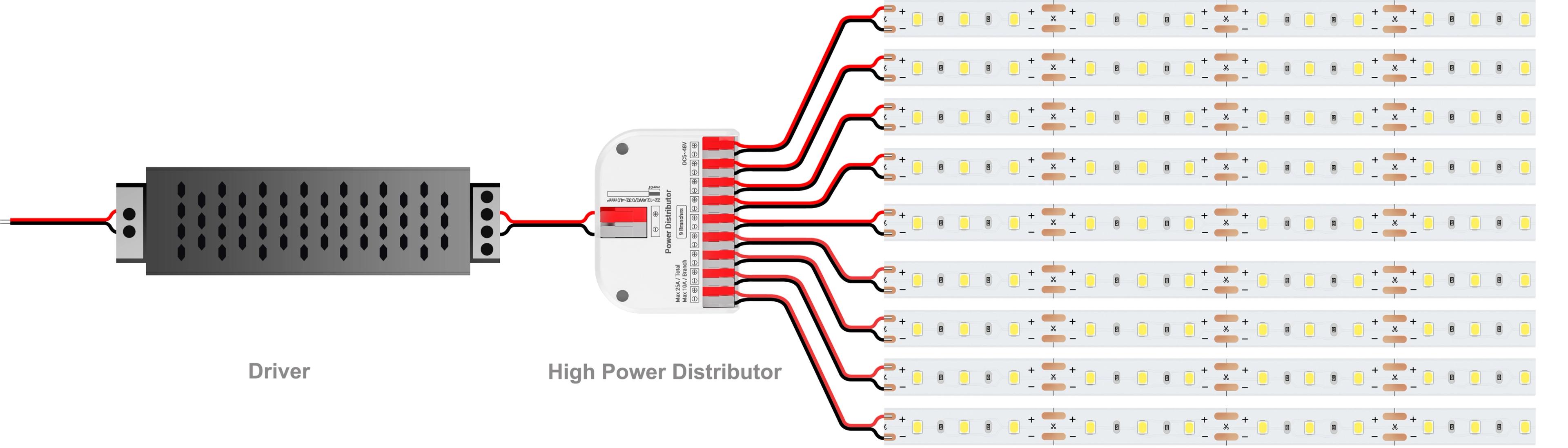

Wiring Diagram — MONO (2 Pins)

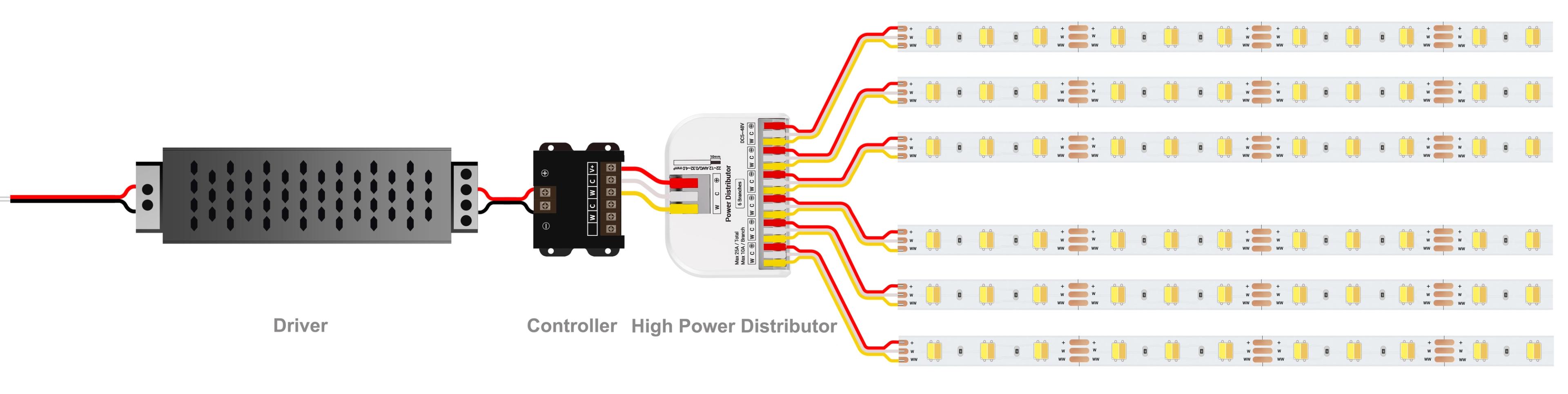

Wiring Diagram — CCT (3 Pins)

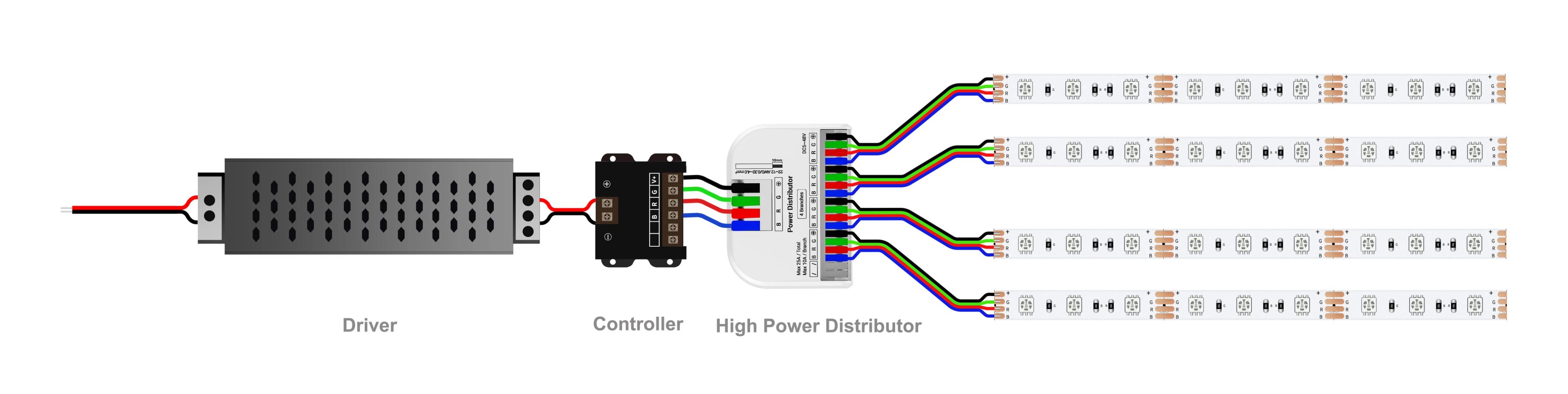

Wiring Diagram — RGB (4 Pins)

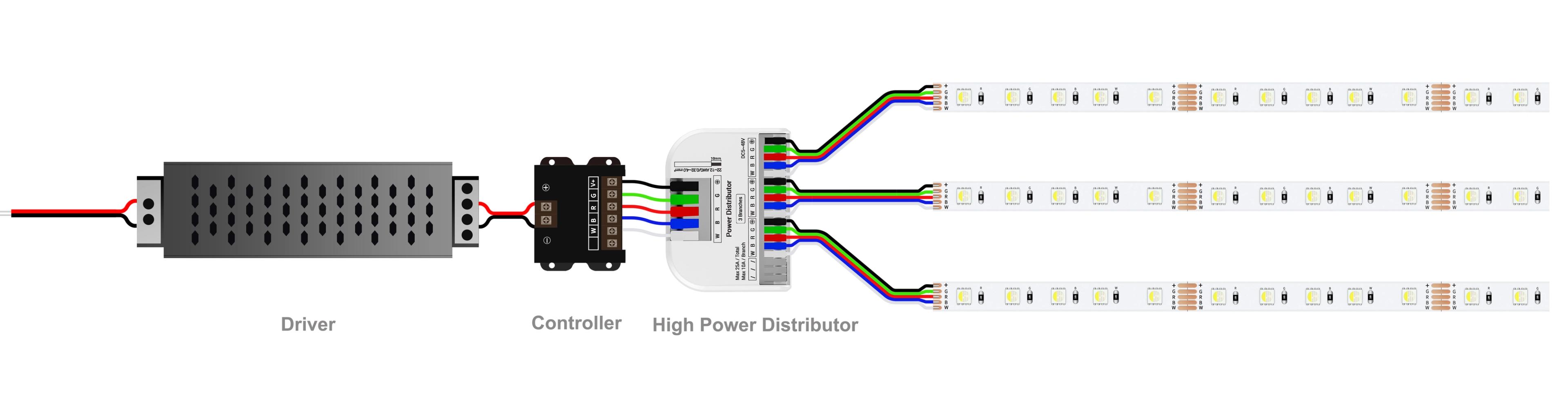

Wiring Diagram — RGBW (5 Pins)

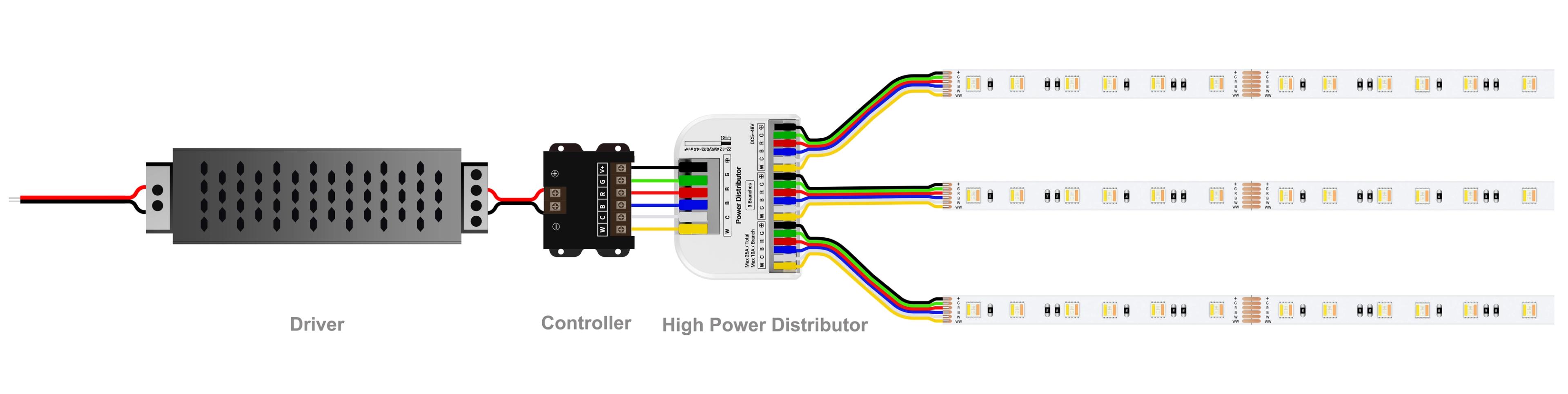

Wiring Diagram — RGBCW (6 Pins)
