8mm 2 Pins for IP20 SMD Mono
For IP20 Support CustomizationSurface ContactReusable
Brand:No Brand
MOQ:contact us for more details about MOQ
Customizable Options:WirePackageLabelConnector
Brief Info

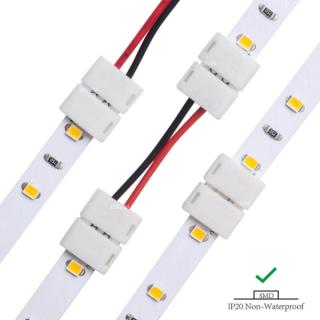

- Snap SR solderless clip-on connector for 8mm mono LED strips.
- Typical uses: cabinet and display lighting, shelf and wardrobe strips, indoor cove lighting.
- Surface contact does not pierce the strip’s copper, so the strip can be reused after removal.
- The connector is reusable — if you get it the wrong way round or need to move it, just unclip and refit.
- Snap the cover shut to make the connection — no soldering.
- Four connection types in total: strip-to-power, strip-to-strip joint, strip-to-strip bridge and strip-to-USB.
- Contact us for more details or to check compatibility with your LED strips.
Specification
Item NO.
SR8XB-2W
SR8BB-2
SR8BXB-2W
HUSB2SR8-J1H2P22ABR150
WUSB2SR8-J1W2P22ABR150
Series Name
Snap SR
LED Strip Width
8mm
Pin Quantity
2 Pins
Connection Type
Strip to Power
Strip to Strip Joint
Strip to Strip Bridge

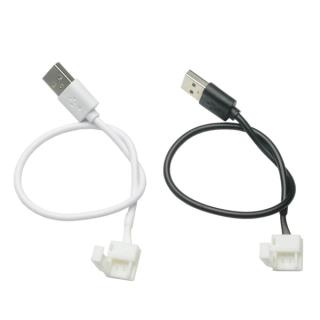

Strip to USB
Strip to USB
Contact Method
Surface Contact
Shape of Connection
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
LED Strip IP Rating
IP20 (Non-waterproof)
LED Light Type
SMD
SMD
SMD
SMD
SMD
LED Strip Color
Mono
Max Working Voltage
DC24V
Max Working Current
2 OZ: 3A, 3 OZ: 3.5A
2 OZ: 2A, 3 OZ: 2.5A
2 OZ: 3A, 3 OZ: 3.5A
2 OZ: 2A, 3 OZ: 2A
2 OZ: 2A, 3 OZ: 2A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
Wire Gauge
22AWG
/
22AWG
22AWG
22AWG
Wire Cross Section
0.32mm²
/
0.32mm²
0.32mm²
0.32mm²
Standard Wire Length
150mm
/
150mm
150mm
150mm
Wire Attached
With wire
No wire
With wire
With wire
With wire
Wire Color Order
Black-Red
/
Black-Red
Black-Red
Black-Red
LED Strip PCB Thickness
0.2~0.35mm
LED Strip PCB Type
Flexible
Material
Nylon(PA66), Copper, PVC
Nylon(PA66), Copper
Nylon(PA66), Copper, PVC
Nylon(PA66), Copper, PVC
Nylon(PA66), Copper, PVC
Housing Size
15.3*12.5*4.5mm
15.3*12.5*4.5mm
15.3*12.5*4.5mm
15.3*12.5*4.5mm
15.3*12.5*4.5mm
Housing Color
White
White
White
Black, White
White
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
Interested in this product?
Contact us for pricing and technical support
