10mm 4 Pins for IP54/IP65 SMD RGB
For IP65/IP54Support CustomizationPierce to ContactReusable
Brand:No Brand
MOQ:contact us for more details about MOQ
Customizable Options:WirePackageLabelConnector
Brief Info
- Snap DJ solderless clip-on connector for 10mm RGB water-resistant LED strips.
- Typical uses: garden and balcony accent lighting, shopfronts and signage, display and entertainment spaces.
- Made for water-resistant strips with a glue coating on top — no need to strip the coating back before fitting the strip.
- The contacts pierce through the coating on the strip and bite directly onto the copper underneath — no scraping the coating off, no soldering.
- Snap the cover shut and the connection is made — fitting is a single press.
- Three connection types in total: strip-to-power, strip-to-strip joint and strip-to-strip bridge.
- Contact us for more details or to check compatibility with your LED strips.
Specification
Item NO.
DJ10BB-4
DJ10XB-4W
DJ10BXB-4W
Series Name
Snap DJ
LED Strip Width
10mm
Pin Quantity
4 Pins
Connection Type

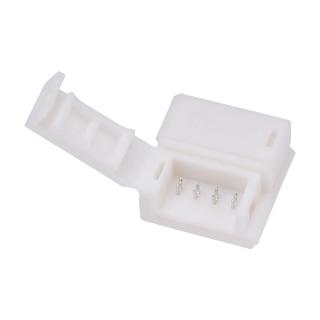

Strip to Strip Joint

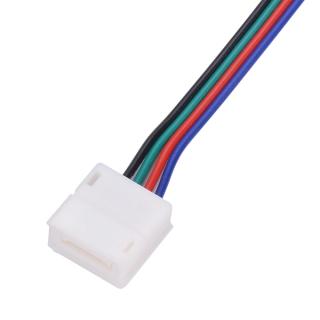

Strip to Power

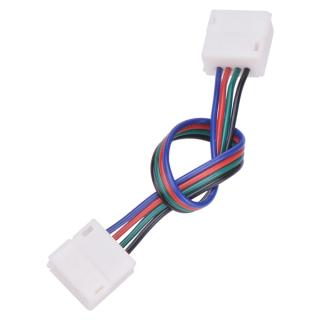

Strip to Strip Bridge
Contact Method
Pierce Contact
LED Strip IP Rating
IP65/IP54 (Single Side Glue Coating)
LED Strip Color
RGB
Max Working Voltage
DC24V
Max Working Current
2 OZ: 2A, 3 OZ: 2.5A
2 OZ: 3A, 3 OZ: 3.5A
2 OZ: 3A, 3 OZ: 3.5A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
Wire Gauge
/
22AWG
22AWG
Wire Cross Section
/
0.32mm²
0.32mm²
Standard Wire Length
/
150mm
150mm
Wire Attached
No wire
With wire
With wire
Wire Color Order
/
Black-Green-Red-Blue
Black-Green-Red-Blue
LED Strip PCB Thickness
0.2~0.35mm
LED Strip PCB Type
Flexible
Material
Nylon(PA66), Copper
Nylon(PA66), Copper, PVC
Nylon(PA66), Copper, PVC
Housing Size
15.3*15.4*8.1mm
15.3*15.4*8.1mm
15.3*15.4*8.1mm
Housing Color
White
White
White
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
