10mm 2 Pins for IP20 SMD/COB Mono
For IP20 Support CustomizationSurface ContactReusable
Brand:No Brand
MOQ:contact us for more details about MOQ
Customizable Options:WirePackageLabelConnector
Brief Info

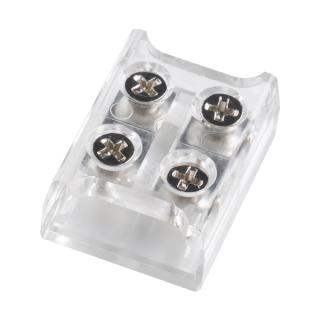

- Screw-fixing connector for 10mm mono LED strips — a secure, non-slip connection.
- Typical uses: cabinet and display lighting, aluminium-profile linear lighting, indoor cove lighting.
- Works with compatible wire of your own, so length and routing can be set on site to suit the job.
- Screw-clamp fixing needs no special tool — anyone can wire it up.
- The screw clamp delivers ample contact area — higher current capacity and a stable current path.
- The body is 15% smaller than comparable products on the market, so it fits more places.
- Works with both flexible and rigid strips, COB and SMD alike.
- Two connection types in total: strip-to-wire and strip-to-strip joint.
- Ships without wire by default; a pre-wired version is also available to order.
- Contact us for more details or to check compatibility with your LED strips.
Specification
Item NO.
SF10XB-2G
SF10BB-2G
SF10-TL2
Series Name
Screw Fixing
LED Strip Width
10mm
Pin Quantity
2 Pins
Connection Type
Strip to Wire
Strip to Strip Joint
Strip to Strip Joint
Contact Method
Surface Contact
Shape of Connection

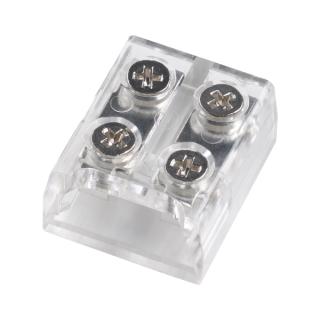

I Shape (Straight)
I Shape (Straight)

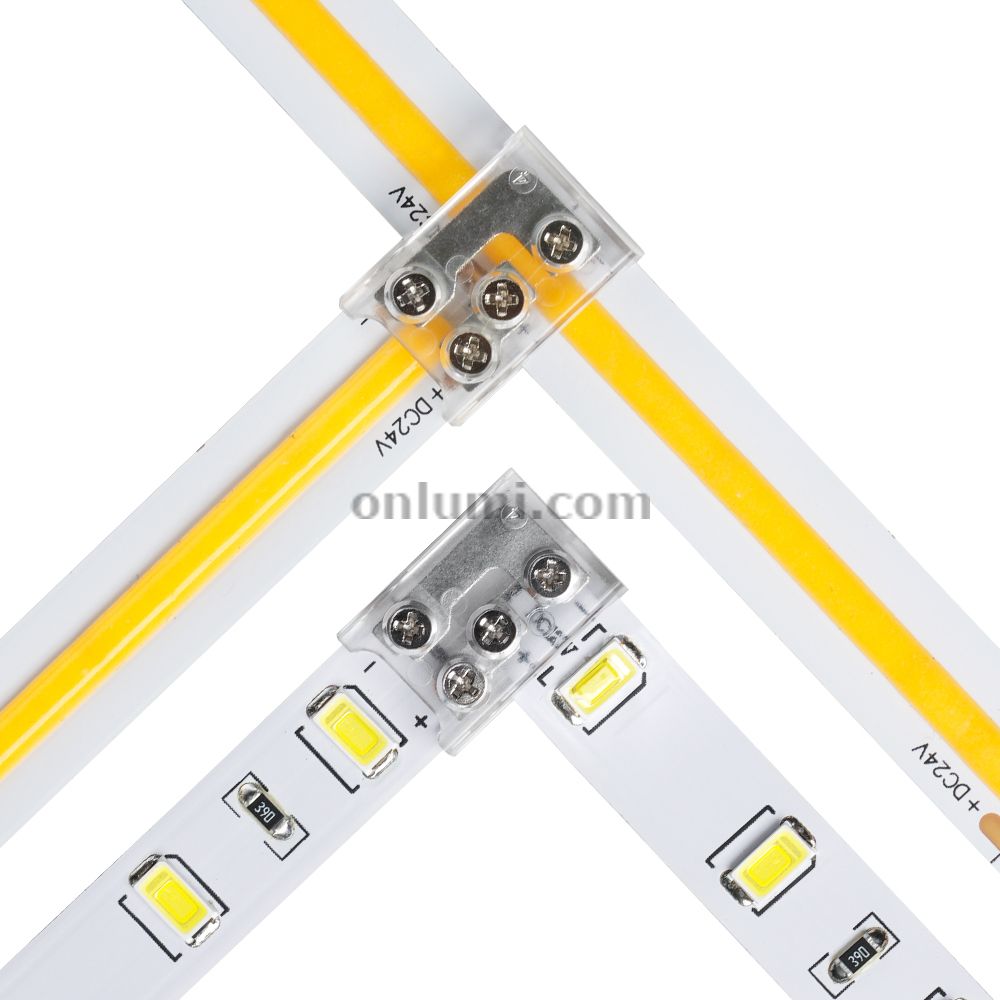

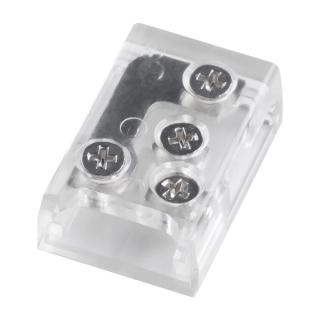

L Shape (90 Degree), T Shape
LED Strip IP Rating
IP20 (Non-waterproof)
LED Light Type
COB, SMD
COB, SMD
COB, SMD
LED Strip Color
Mono
LED Density
No limit to COB, SMD Depends on SMD Size
Max Working Voltage
DC24V
Max Working Current
2 OZ: 4A, 3 OZ: 6A
2 OZ: 4A, 3 OZ: 6A
2 OZ: 4A, 3 OZ: 6A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
Wire Gauge
16~22AWG
/
/
Wire Cross Section
0.32~1.32mm²
/
/
Standard Wire Length
/
/
/
Wire Attached
No wire
No wire
No wire
Wire Color Order
/
/
/
LED Strip PCB Thickness
0.25~0.35mm
LED Strip PCB Type
Flexible, Rigid
Solder Pad Center Distance
5.3mm
Material
Polycarbonate, Copper
Polycarbonate, Copper
Polycarbonate, Copper
Housing Size
13.3*11.5*6.4mm
14.6*11.5*6.4mm
16.3*11.4*6.4mm
Housing Color
Transparent
Transparent
Transparent
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
