8mm PCB / 10mm Tube 2 Pins for IP67/IP68 SMD/COB Mono
For IP67/IP68 ExtrudedSupport CustomizationPierce to ContactReusable
Brand:No BrandQIJIE
MOQ:contact us for more details about MOQ
Customizable Options:WirePackageLabelConnector
Brief Info
- Hippo-M Solid outdoor waterproof connector for 8mm mono LED strips.
- Typical uses: architectural outline lighting, garden and landscape strips, outdoor linear lighting.
- For waterproof strips in injected or extruded solid and hollow tubes.
- Works with both COB and SMD strips.
- Three connection types in total: strip-to-strip joint, strip-to-power and strip-to-strip bridge.
- Pre-wired versions come in three lead lengths: 200mm, 500mm and 1000mm.
- Contact us for more details or to check compatibility with your LED strips.
Specification
Item NO.
SDN8BB-2G
SDN8XB-2GW200
SDN8BXB-2GW200
SDN8XB-2GW500
SDN8BXB-2GW500
SDN8XB-2GW1000
Series Name
Outdoor Solid
LED Strip Width
8mm PCB / 10mm Tube
Pin Quantity
2 Pins
Connection Type

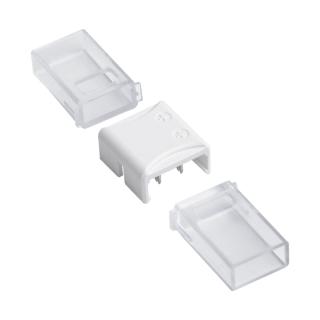

Strip to Strip Joint

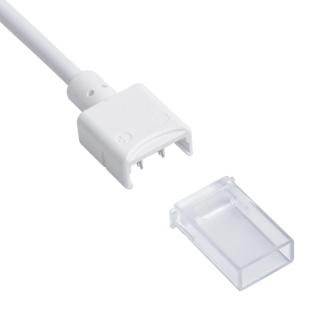

Strip to Power
Strip to Strip Bridge
Strip to Power
Strip to Strip Bridge
Strip to Power
Contact Method
Pierce Contact
LED Strip IP Rating
IP67 (Extruded Hollow Tube), IP68 (Injected / Extruded Solid Tube)
LED Strip Color
Mono
LED Density
No limit to COB, SMD Depends on SMD Size
Max Working Voltage
DC24V
Max Working Current
2 OZ: 3.5A, 3 OZ: 5A
2 OZ: 3.5A, 3 OZ: 4A
2 OZ: 3.5A, 3 OZ: 4A
2 OZ: 3.5A, 3 OZ: 4A
2 OZ: 3.5A, 3 OZ: 4A
2 OZ: 3.5A, 3 OZ: 4A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
Wire Gauge
/
20AWG
20AWG
20AWG
20AWG
20AWG
Wire Cross Section
/
0.52mm²
0.52mm²
0.52mm²
0.52mm²
0.52mm²
Standard Wire Length
/
200mm
200mm
500mm
500mm
1000mm
Wire Attached
No wire
With wire
With wire
With wire
With wire
With wire
Wire Color Order
/
Black-Red
Black-Red
Black-Red
Black-Red
Black-Red
LED Strip PCB Thickness
0.2~0.35mm
LED Strip PCB Type
Flexible
Material
Polycarbonate, ABS, Phosphor bronze
Polycarbonate, ABS, PVC, Phosphor bronze
Polycarbonate, ABS, PVC, Phosphor bronze
Polycarbonate, ABS, PVC, Phosphor bronze
Polycarbonate, ABS, PVC, Phosphor bronze
Polycarbonate, ABS, PVC, Phosphor bronze
Pin Surface Treatment
Nickel plating
Housing Size
40*15.5*8.5mm
28*15.5*8.5mm
28*15.5*8.5mm
28*15.5*8.5mm
28*15.5*8.5mm
28*15.5*8.5mm
Housing Color
Transparent, White
Transparent, White
Transparent, White
Transparent, White
Transparent, White
Transparent, White
Item NO.
SDN8BXB-2GW1000
Series Name
Outdoor Solid
LED Strip Width
8mm PCB / 10mm Tube
Pin Quantity
2 Pins
Connection Type
Strip to Strip Bridge
Contact Method
Pierce Contact
LED Strip IP Rating
IP67 (Extruded Hollow Tube), IP68 (Injected / Extruded Solid Tube)
LED Strip Color
Mono
LED Density
No limit to COB, SMD Depends on SMD Size
Max Working Voltage
DC24V
Max Working Current
2 OZ: 3.5A, 3 OZ: 4A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
Wire Gauge
20AWG
Wire Cross Section
0.52mm²
Standard Wire Length
1000mm
Wire Attached
With wire
Wire Color Order
Black-Red
LED Strip PCB Thickness
0.2~0.35mm
LED Strip PCB Type
Flexible
Material
Polycarbonate, ABS, PVC, Phosphor bronze
Pin Surface Treatment
Nickel plating
Housing Size
28*15.5*8.5mm
Housing Color
Transparent, White
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
Interested in this product?
Contact us for pricing and technical support
