12mm 3 Pins for IP20 COB CCT
For IP20 2~6 PinsSupport CustomizationPierce to Contact
Brand:No BrandQIJIE
MOQ:contact us for more details about MOQ
Customizable Options:WirePackageLabelConnector
Brief Info
- Slim solderless connector for 12mm COB tunable-white (CCT) LED strips.
- Typical uses: tunable-white linear lighting, ambient and accent lighting, indoor commercial spaces.
- Solderless — a standard crimping plier is all it takes to fit.
- A slim housing fits narrow spaces such as aluminium profiles and furniture grooves.

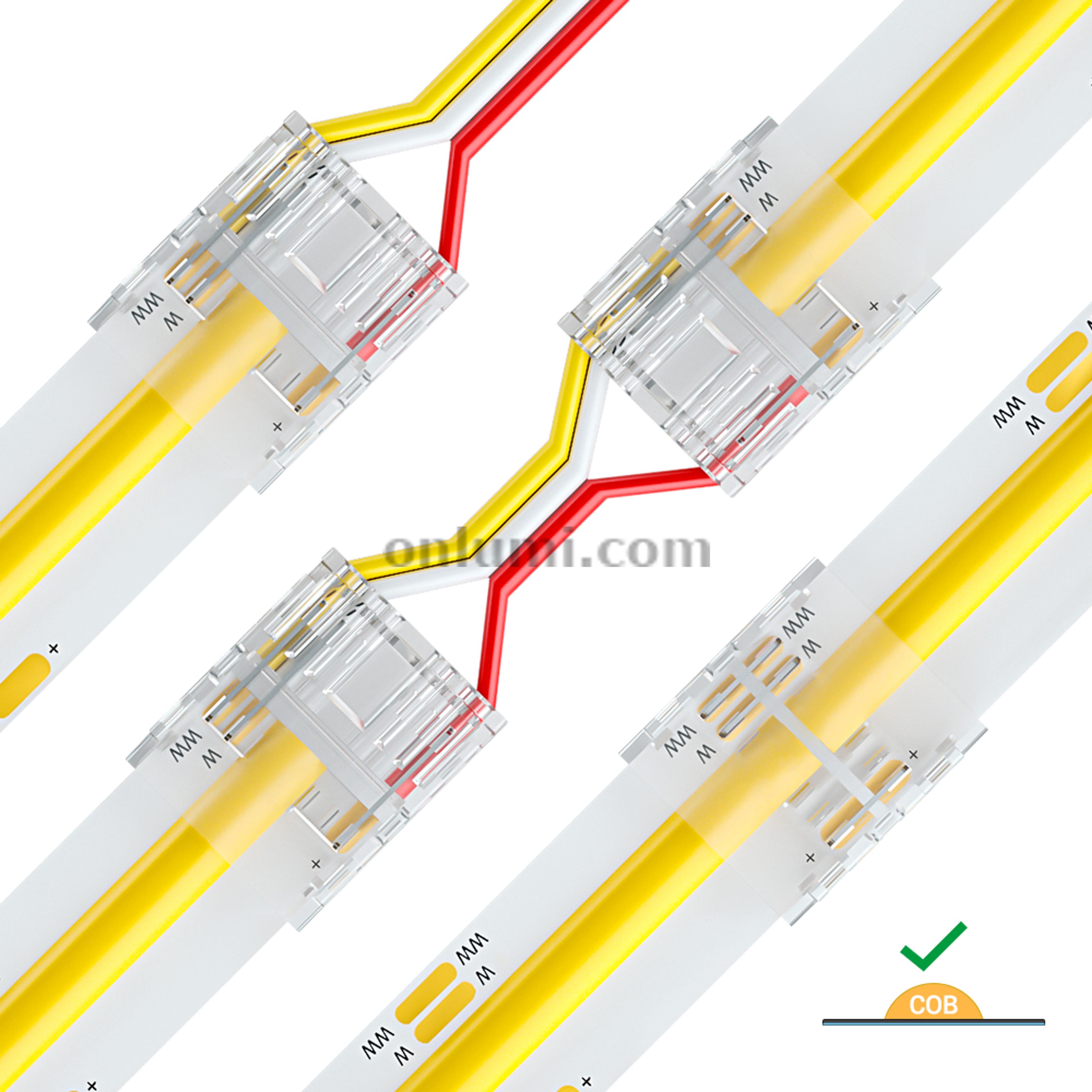

- Three connection types in total: strip-to-strip joint, strip-to-power and strip-to-strip bridge.
- Contact us for more details or to check compatibility with your LED strips.
Specification
Item NO.
MN20-B12C-3P
MN20-X12C-3PW-F22ARWY150
MN20-BXB12C-3PW-F22ARWY150
Series Name
Hippo-M MINI
LED Strip Width
12mm
Pin Quantity
3 Pins
Connection Type
Strip to Strip Joint
Strip to Power
Strip to Strip Bridge
Contact Method
Pierce Contact
Shape of Connection
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
LED Strip IP Rating
IP20 (Non-waterproof)
LED Light Type
COB
COB
COB
LED Strip Color
CCT
LED Density
No limit to COB
Max Working Voltage
DC48V
Max Working Current
3.5A
3.5A
3.5A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
Wire Gauge
/
22AWG
22AWG
Wire Cross Section
/
0.32mm²
0.32mm²
Standard Wire Length
/
150mm
150mm
Wire Attached
No wire
With wire
With wire
Wire Color Order
/
Red-White-Yellow
Red-White-Yellow
LED Strip PCB Thickness
0.25~0.35mm
LED Strip PCB Type
Flexible
Pin Pitch
COB: 6.5mm & 1.5mm; SMD: 3.5mm
Material
Polycarbonate、Phosphor bronze
Polycarbonate、Phosphor bronze
Polycarbonate、Phosphor bronze
Pin Surface Treatment
Nickel plating
Housing Size
16.5*13.7*4.3mm
16.5*13.7*4.3mm
16.5*13.7*4.3mm
Housing Color
Transparent
Transparent
Transparent
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
