8mm 3 Pins for IP20/IP54/IP65 COB CCT
2~6 PinsUsers can assemble WirePierce to ContactFor both IP20 and IP65/IP54Support CustomizationReusable
Brand:No BrandQIJIE
MOQ:contact us for more details about MOQ
Customizable Options:WirePackageLabelConnector
Brief Info
- Reusable connector for 8mm COB tunable-white (CCT) LED strips — unclip and reconnect if misaligned.
- Typical uses: tunable-white linear lighting, ambient and accent lighting, damp areas such as kitchens and bathrooms.
- Works with compatible wire of your own, so length and routing can be set on site to suit the job.
- A guiding tunnel and pierce-contact make fitting fast — no stripping or soldering.
- One part fits both non-waterproof and waterproof(IP65/IP54) strips.
- Two connection types in total: strip-to-wire and strip-to-strip joint.
- Ships without wire by default; a pre-wired version is also available to order.
- Contact us for more details or to check compatibility with your LED strips.
Specification
Item NO.
MX/2045-X8C-3P
MX/2045-B8C-3P
Series Name
Hippo-M Max
LED Strip Width
8mm
Pin Quantity
3 Pins
Connection Type

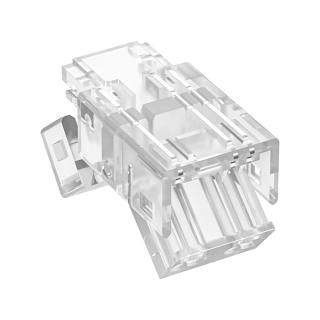

Strip to Wire

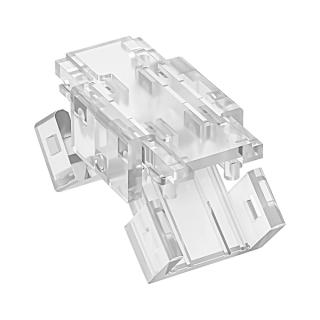

Strip to Strip Joint
Shape of Connection
I Shape (Straight)
I Shape (Straight)
LED Strip IP Rating
IP20 (Non-waterproof), IP65/IP54 (Single Side Glue Coating)
LED Light Type
COB
COB
LED Strip Color
CCT
Max Working Voltage
DC48V
Max Working Current
2 OZ: 3A, 3 OZ: 3.5A
2 OZ: 3A, 3 OZ: 3A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
Wire Gauge
22AWG
/
Wire Cross Section
0.32mm²
/
Standard Wire Length
/
/
Wire Attached
No wire
No wire
Wire Color Order
/
/
LED Strip PCB Thickness
0.25~0.35mm
LED Strip PCB Type
Flexible
Material
Polycarbonate, Phosphor bronze
Polycarbonate, Phosphor bronze
Housing Size
19*10.6*6.2mm
19.8*10.6*6.2mm
Housing Color
Transparent
Transparent
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
Interested in this product?
Contact us for pricing and technical support
