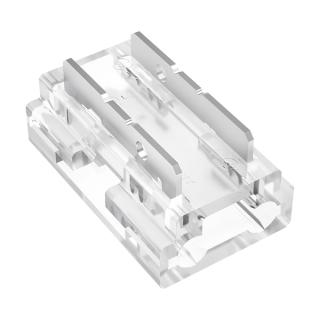

8mm 2 Pins for IP20 SMD/COB Mono
For IP20 Support CustomizationPierce to Contact
Brand:No BrandQIJIE
MOQ:contact us for more details about MOQ
Customizable Options:WirePackageLabelConnector
Brief Info
- Multi-purpose connector for 8mm mono LED strips — works with both COB and SMD.
- Typical uses: cabinet and display lighting, aluminium-profile linear lighting, indoor cove and shaped runs.
- Works with compatible wire of your own, so length and routing can be set on site to suit the job.
- One part covers nine ways to connect: strip-to-strip joint, strip-to-wire, wire-to-wire, side power, corner-powered L, side-powered T, plus L-shape, T-shape and cross-shape corners.
- Pins pierce and clamp the strip FPC so the joint will not slip out.
- The clear housing does not block light, leaving no dark spot at the joint.
- An ultra-slim body fits narrow spaces such as aluminium profiles, furniture grooves and gaps.
- Ships without wire by default; a pre-wired version is also available to order.
- Contact us for more details or to check compatibility with your LED strips.
Specification
Item NO.
BCX-8-2
Series Name
Beetle Clip X
LED Strip Width
8mm
Pin Quantity
2 Pins
Connection Type
Strip to Wire, Strip to Strip Joint, Corner Powered L Shape, Strip to Strip L Shape, Side Powered T Shape, Strip to Strip T Shape, Side Power, Strip to Strip Cross, Wire to Wire
Contact Method
Pierce Contact
Shape of Connection
I Shape (Straight), L Shape (90 Degree), T Shape, + Shape (Cross)
LED Strip IP Rating
IP20 (Non-waterproof)
LED Light Type
SMD, COB
LED Strip Color
Mono
Max Working Voltage
DC24V
Max Working Current
2 OZ: 4A, 3 OZ: 5A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
Wire Gauge
20~22AWG
Wire Cross Section
0.32~0.52mm²
Standard Wire Length
/
Wire Attached
No wire
Wire Color Order
/
LED Strip PCB Thickness
0.25~0.35mm
LED Strip PCB Type
Flexible
Material
Polycarbonate, Phosphor bronze
Housing Color
Transparent
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
