5mm/6mm 2 Pins for IP20 SMD/COB Mono
For IP20 BorderlessSupport CustomizationPierce to Contact
Brand:No Brand
MOQ:contact us for more details about MOQ
Customizable Options:WirePackageLabelConnector
Brief Info
- Borderless connector for 5mm/6mm mono LED strips — one size fits both widths, no wider than the strip.
- Typical uses: aluminium channel installs, under-cabinet lighting, display and cove lighting.
- Takes no extra room inside the channel.
- The open-side housing improves heat dissipation for higher current.
- Three connection types in total: strip-to-strip joint, strip-to-power and strip-to-strip bridge; also in a 90° L version.
- Contact us for more details or to check compatibility with your LED strips.
Specification
Item NO.

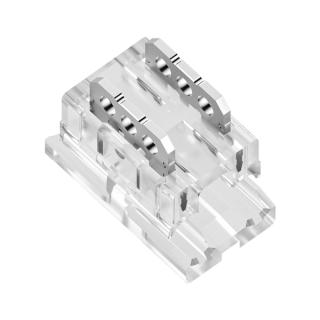

BCX-5D-2N

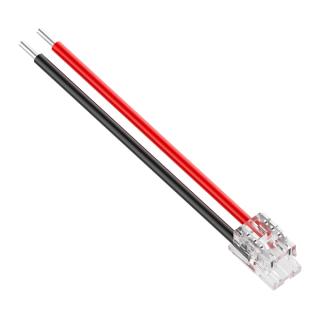

BCX-5DXB-2NW

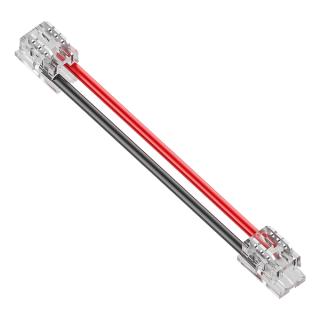

BCX-5DBXB-2NW

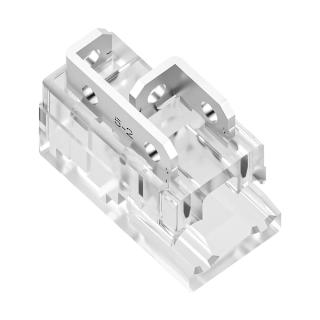

BCX-5D-L2N
Series Name
Beetle Clip X-D
LED Strip Width
5mm/6mm
5mm/6mm
5mm/6mm
5mm
Pin Quantity
2 Pins
Connection Type
Strip to Strip Joint
Strip to Power
Strip to Strip Bridge
Strip to Strip Joint
Contact Method
Pierce Contact
Shape of Connection
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
L Shape (90 Degree)
LED Strip IP Rating
IP20 (Non-waterproof)
LED Light Type
SMD, COB
SMD, COB
SMD, COB
SMD, COB
LED Strip Color
Mono
LED Density
No limit to COB, SMD Depends on SMD Size
Max Working Voltage
DC24V
Max Working Current
2 OZ: 2A, 3 OZ: 2.5A
2 OZ: 3.5A, 3 OZ: 4.5A
2 OZ: 3.5A, 3 OZ: 4.5A
2 OZ: 2A, 3 OZ: 2.5A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
Wire Gauge
/
20AWG
20AWG
/
Wire Cross Section
/
0.52mm²
0.52mm²
/
Standard Wire Length
/
150mm
150mm
/
Wire Attached
No wire
With wire
With wire
No wire
Wire Color Order
/
Black-Red
Black-Red
/
Cable Marking
/
AWM 1332 VW-1 200℃ 300V 20AWG
AWM 1332 VW-1 200℃ 300V 20AWG
/
Cable Outer Diameter
/
Φ1.5mm
Φ1.5mm
/
Cable Type
/
Jacket stranded round cable
Jacket stranded round cable
/
LED Strip PCB Thickness
0.25~0.35mm
LED Strip PCB Type
Flexible
Solder Pad Center Distance
3.1mm
3.1mm
3.1mm
3.1mm
Pin Pitch
3.1mm
3.1mm
3.1mm
3.1mm
Material
Polycarbonate, Copper
Polycarbonate, Copper, Teflon
Polycarbonate, Copper, Teflon
Polycarbonate, Copper
Pin Surface Treatment
Nickel plating
Housing Size
9*5*5.2mm
9*5*5.2mm
9*5*5.2mm
9.5*5*5.2mm
Notch Width
1.9mm
1.9mm
1.9mm
—
Housing Deform Temperature
80℃
Housing Color
Transparent
Transparent
Transparent
Transparent
Working Environment Temperature
-10 ~ 45℃
Working Environment
Indoor
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
