10mm 4 Pins for IP20 COB RGB
For IP20 BorderlessSupport CustomizationPierce to Contact
Brand:No Brand
MOQ:contact us for more details about MOQ
Customizable Options:WirePackageLabelConnector
Brief Info
- Borderless 4-pin connector for 10mm COB RGB strips — no wider than the strip itself.
- Typical uses: aluminium channel installs, under-cabinet lighting, colour-changing cove and display lighting.
- Takes no extra room inside the channel.
- The open-side housing improves heat dissipation for higher current.
- Three connection types in total: strip-to-strip joint, strip-to-power and strip-to-strip bridge.
- Contact us for more details or to check compatibility with your LED strips.
Specification

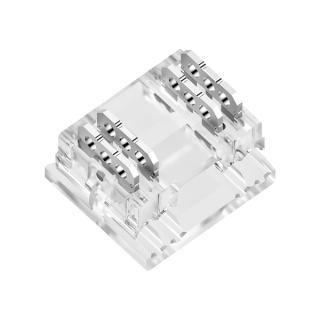

Item NO.

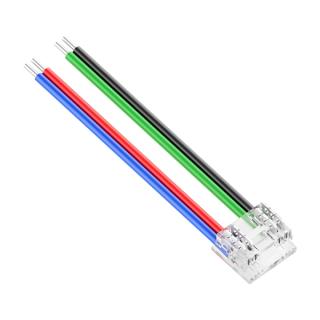

BCX-10D-4N
BCX-10DXB-4NW

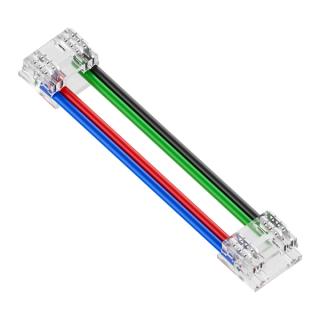

BCX-10DBXB-4NW
Series Name
Beetle Clip X-D
LED Strip Width
10mm
10mm
10mm
Pin Quantity
4 Pins
Connection Type
Strip to Strip Joint
Strip to Power
Strip to Strip Bridge
Contact Method
Pierce Contact
Shape of Connection
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
LED Strip IP Rating
IP20 (Non-waterproof)
LED Light Type
COB
COB
COB
LED Strip Color
RGB
LED Density
No Limit
Max Working Voltage
DC24V
Max Working Current
2 OZ: 3.5A, 3 OZ: 4.5A
2 OZ: 3.5A, 3 OZ: 4.5A
2 OZ: 3.5A, 3 OZ: 4.5A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
Wire Gauge
/
20AWG
20AWG
Wire Cross Section
/
0.52mm²
0.52mm²
Standard Wire Length
/
150mm
150mm
Wire Attached
No wire
With wire
With wire
Wire Color Order
/
Black-Green-Red-Blue
Black-Green-Red-Blue
Cable Marking
/
AWM 1332 VW-1 200℃ 300V 20AWG
AWM 1332 VW-1 200℃ 300V 20AWG
Cable Outer Diameter
/
Φ1.5mm
Φ1.5mm
Cable Type
/
Jacket stranded round cable
Jacket stranded round cable
LED Strip PCB Thickness
0.25~0.35mm
LED Strip PCB Type
Flexible
Material
Polycarbonate, Copper
Polycarbonate, Copper, Teflon
Polycarbonate, Copper, Teflon
Pin Surface Treatment
Nickel plating
Housing Size
9*10*5.2mm
9*10*5.2mm
9*10*5.2mm
Notch Width
3.5mm
3.5mm
3.5mm
Housing Deform Temperature
80℃
Housing Color
Transparent
Transparent
Transparent
Working Environment Temperature
-10 ~ 45℃
Working Environment
Indoor
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
