12mm 4 Pins for IP20 COB RGB
Lowest ProfileFor IP20 Support CustomizationPierce to Contact
Brand:No Brand
MOQ:contact us for more details about MOQ
Customizable Options:WirePackageLabelConnector
Brief Info
- Solderless connector for 12mm RGB COB strips; ultra-low profile fits inside wide aluminum channels.
- Typical uses: large-area RGB ambient lighting, retail-display and stage lighting, aluminum-profile strips.
- Each pin makes multiple contacts for reliable conduction with less heat; the open-top housing blocks no light, dissipates heat, and joins with no dark gap.
- See the full specifications below.
- Contact us for more details or to check compatibility with your LED strips.
Specification
Item NO.
BCI12BB-4
BCI12BXB-4W-F20ABKGRB150
BCI12XB-4W-F20ABKGRB150
BCI12BXB-4W-T18ABKGRB-150
BCI12XB-4W-T18ABKGRB-150
BCI12-H2510M-20A4PBKRGB
Series Name
Beetle Clip Invisible
LED Strip Width
12mm
Pin Quantity
4 Pins
Connection Type

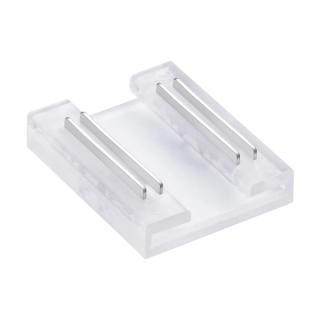

Strip to Strip Joint

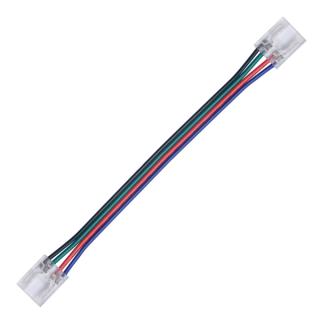

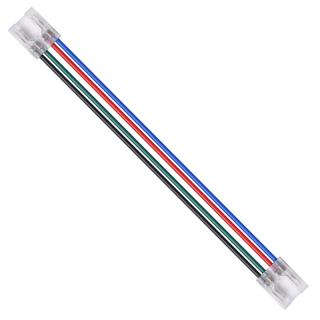

Strip to Strip Bridge

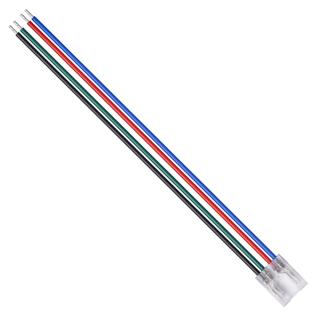

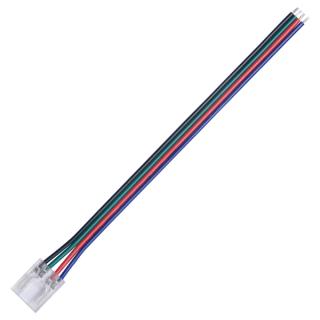

Strip to Power
Strip to Strip Bridge
Strip to Power

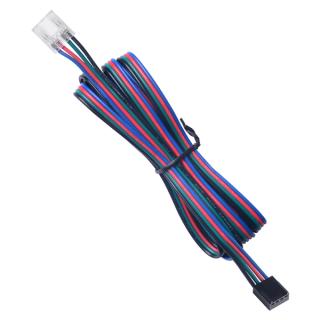

Strip to 2510
Contact Method
Pierce Contact
Shape of Connection
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
LED Strip IP Rating
IP20 (Non-waterproof)
LED Light Type
COB
COB
COB
COB
COB
COB
LED Strip Color
RGB
Max Working Voltage
DC24V
Max Working Current
2 OZ: 2.5A, 3 OZ: 3A
2 OZ: 3.5A, 3 OZ: 4A
2 OZ: 3.5A, 3 OZ: 4A
2 OZ: 3.5A, 3 OZ: 5A
2 OZ: 3.5A, 3 OZ: 5A
2 OZ: 3.5A, 3 OZ: 4A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
Wire Gauge
/
20AWG
20AWG
18AWG
18AWG
20AWG
Wire Cross Section
/
0.52mm²
0.52mm²
0.78mm²
0.78mm²
0.52mm²
Standard Wire Length
/
150mm
150mm
150mm
150mm
150mm, 500mm, 1000mm, 2000mm
Wire Attached
No wire
With wire
With wire
With wire
With wire
With wire
Wire Color Order
/
Black-Green-Red-Blue
Black-Green-Red-Blue
Black-Green-Red-Blue
Black-Green-Red-Blue
Black-Green-Red-Blue
LED Strip PCB Thickness
0.25~0.35mm
LED Strip PCB Type
Flexible
Material
Polycarbonate, Copper
Polycarbonate, Copper, PVC
Polycarbonate, Copper, PVC
Polycarbonate, Copper, Teflon
Polycarbonate, Copper, Teflon
Nylon(PA66), PVC, Copper, Polycarbonate
Housing Size
15.6*13.6*3.3mm
15.6*13.6*3.3mm
15.6*13.6*3.3mm
15.6*13.6*3.3mm
15.6*13.6*3.3mm
15.6*13.6*3.3mm
Housing Color
Transparent
Transparent
Transparent
Transparent
Transparent
Transparent
Item NO.
BCI12-W2510M-20A4PBKRGB
—
Series Name
Beetle Clip Invisible
LED Strip Width
12mm
Pin Quantity
4 Pins
Connection Type
Strip to 2510
Contact Method
Pierce Contact
Shape of Connection
I Shape (Straight)
LED Strip IP Rating
IP20 (Non-waterproof)
LED Light Type
COB
LED Strip Color
RGB
Max Working Voltage
DC24V
Max Working Current
2 OZ: 3.5A, 3 OZ: 4A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
Wire Gauge
20AWG
Wire Cross Section
0.52mm²
Standard Wire Length
150mm, 500mm, 1000mm, 2000mm
Wire Attached
With wire
Wire Color Order
Black-Green-Red-Blue
LED Strip PCB Thickness
0.25~0.35mm
LED Strip PCB Type
Flexible
Material
Nylon(PA66), PVC, Copper, Polycarbonate
Housing Size
15.6*13.6*3.3mm
Housing Color
Transparent
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
