12mm 2 Pins for IP20 SMD/COB Mono
Lowest ProfileFor IP20 Support CustomizationPierce to Contact
Brand:No Brand
MOQ:contact us for more details about MOQ
Customizable Options:WirePackageLabelConnector
Brief Info
- Solderless connector for 12mm indoor single-color LED strips; ultra-low profile fits inside wide aluminum channels.
- Typical uses: wide COB linear lighting, large-area cabinet/shelf lighting, aluminum-profile strips.
- Each pin makes multiple contacts for reliable conduction with less heat; the open-top housing blocks no light, dissipates heat, and joins with no dark gap.
- See the full specifications below.
- Contact us for more details or to check compatibility with your LED strips.
Specification
Item NO.
BCI12BXB-2W-F20ABR150
BCI12XB-2W-F20ABR150
BCI12BXB-2W-T18ABR-150
BCI12XB-2W-T18ABR-150
BCI12BXB-2W
BCI12XB-2W
Series Name
Beetle Clip Invisible
LED Strip Width
12mm
Pin Quantity
2 Pins
Connection Type

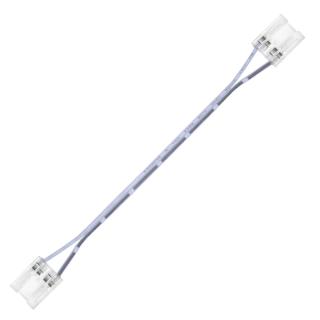

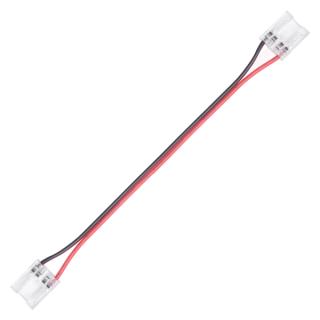

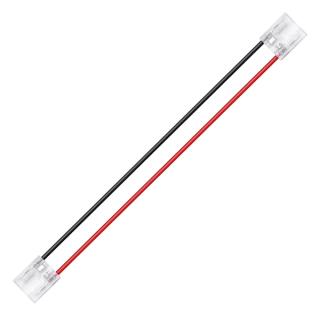

Strip to Strip Bridge

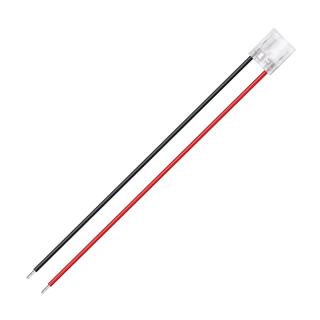

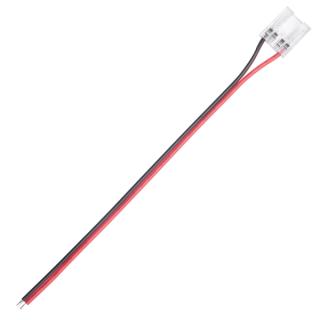

Strip to Power
Strip to Strip Bridge
Strip to Power
Strip to Strip Bridge
Strip to Power
Contact Method
Pierce Contact
Shape of Connection
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
LED Strip IP Rating
IP20 (Non-waterproof)
LED Light Type
SMD, COB
SMD, COB
SMD, COB
SMD, COB
SMD, COB
SMD, COB
LED Strip Color
Mono
Max Working Voltage
DC24V
Max Working Current
2 OZ: 4A, 3 OZ: 4.5A
2 OZ: 4A, 3 OZ: 4.5A
2 OZ: 4A, 3 OZ: 5.5A
2 OZ: 4A, 3 OZ: 5.5A
2 OZ: 4A, 3 OZ: 4.5A
2 OZ: 4A, 3 OZ: 4.5A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
Wire Gauge
20AWG
20AWG
18AWG
18AWG
20AWG
20AWG
Wire Cross Section
0.52mm²
0.52mm²
0.78mm²
0.78mm²
0.52mm²
0.52mm²
Standard Wire Length
150mm
150mm
150mm
150mm
150mm
150mm
Wire Attached
With wire
With wire
With wire
With wire
With wire
With wire
Wire Color Order
Black-Red
Black-Red
Black-Red
Black-Red

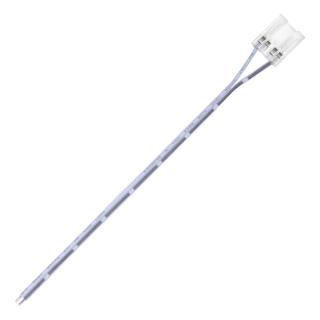

White-White
White-White
LED Strip PCB Thickness
0.25~0.35mm
LED Strip PCB Type
Flexible
Material
Polycarbonate, Copper, PVC
Polycarbonate, Copper, PVC
Polycarbonate, Copper, Teflon
Polycarbonate, Copper, Teflon
Polycarbonate, Copper, PVC
Polycarbonate, Copper, PVC
Housing Size
15.6*13.6*3.3mm
15.6*13.6*3.3mm
15.6*13.6*3.3mm
15.6*13.6*3.3mm
15.6*13.6*3.3mm
15.6*13.6*3.3mm
Housing Color
Transparent
Transparent
Transparent
Transparent
Transparent
Transparent
Item NO.
BCI12BXB-2W-T18AWW-150
BCI12XB-2W-T18AWW-150
BCI12XB-DCDF-20A2PBR
BCI12XB-DCDF-20A2PDBK
BCI12XB-WDCDF-20A2PWW
BCI12-HL813M-20A2PBR
—
—
—
Series Name
Beetle Clip Invisible
LED Strip Width
12mm
Pin Quantity
2 Pins
Connection Type

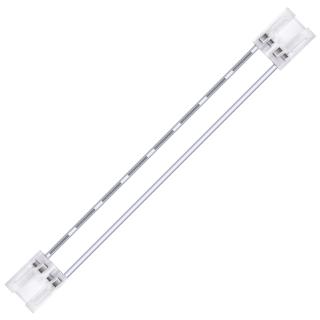

Strip to Strip Bridge
Strip to Power

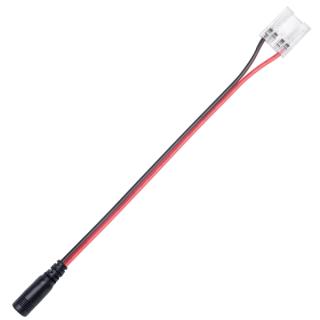

Strip to DC
Strip to DC
Strip to DC

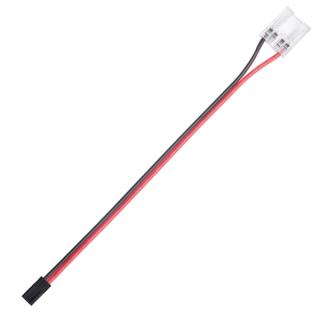

Strip to ON2.54
Contact Method
Pierce Contact
Shape of Connection
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
LED Strip IP Rating
IP20 (Non-waterproof)
LED Light Type
SMD, COB
SMD, COB
SMD, COB
SMD, COB
SMD, COB
SMD, COB
LED Strip Color
Mono
Max Working Voltage
DC24V
Max Working Current
2 OZ: 4A, 3 OZ: 5.5A
2 OZ: 4A, 3 OZ: 5.5A
2 OZ: 4A, 3 OZ: 4.5A
2 OZ: 4A, 3 OZ: 4.5A
2 OZ: 4A, 3 OZ: 4.5A
2 OZ: 4A, 3 OZ: 4.5A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
Wire Gauge
18AWG
18AWG
20AWG
20AWG
20AWG
20AWG
Wire Cross Section
0.78mm²
0.78mm²
0.52mm²
0.52mm²
0.52mm²
0.52mm²
Standard Wire Length
150mm
150mm
150mm, 500mm, 1000mm, 2000mm
150mm, 500mm, 1000mm, 2000mm
150mm, 500mm, 1000mm, 2000mm
150mm, 500mm, 1000mm, 2000mm
Wire Attached
With wire
With wire
With wire
With wire
With wire
With wire
Wire Color Order
White-White
White-White
Black-Red
Black-Black
White-White
Black-Red
LED Strip PCB Thickness
0.25~0.35mm
LED Strip PCB Type
Flexible
Material
Polycarbonate, Copper, Teflon
Polycarbonate, Copper, Teflon
Polycarbonate, Copper, PVC
Polycarbonate, Copper, PVC
Polycarbonate, Copper, PVC
Nylon(PA66), PVC, Copper, Polycarbonate
Housing Size
15.6*13.6*3.3mm
15.6*13.6*3.3mm
15.6*13.6*3.3mm
15.6*13.6*3.3mm
15.6*13.6*3.3mm
15.6*13.6*3.3mm
Housing Color
Transparent
Transparent
Transparent
Transparent
Transparent
Transparent
Item NO.
BCI12-HL813M-20A2PDBK
BCI12-WL814M-20A2PWW
BCI12-H2510M-20A2PBR
BCI12-H2510M-20A2PDBK
BCI12-W2510M-20A2PWW
—
—
—
Series Name
Beetle Clip Invisible
LED Strip Width
12mm
Pin Quantity
2 Pins
Connection Type

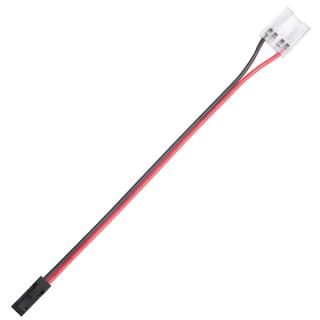

Strip to ON2.54
Strip to ON2.54

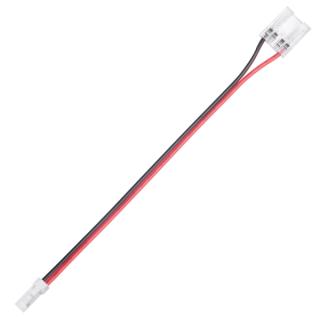

Strip to 2510
Strip to 2510
Strip to 2510
Contact Method
Pierce Contact
Shape of Connection
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
LED Strip IP Rating
IP20 (Non-waterproof)
LED Light Type
SMD, COB
SMD, COB
SMD, COB
SMD, COB
SMD, COB
LED Strip Color
Mono
Max Working Voltage
DC24V
Max Working Current
2 OZ: 4A, 3 OZ: 4.5A
2 OZ: 4A, 3 OZ: 4.5A
2 OZ: 4A, 3 OZ: 4.5A
2 OZ: 4A, 3 OZ: 4.5A
2 OZ: 4A, 3 OZ: 4.5A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
Wire Gauge
20AWG
20AWG
20AWG
20AWG
20AWG
Wire Cross Section
0.52mm²
0.52mm²
0.52mm²
0.52mm²
0.52mm²
Standard Wire Length
150mm, 500mm, 1000mm, 2000mm
150mm, 500mm, 1000mm, 2000mm
150mm, 500mm, 1000mm, 2000mm
150mm, 500mm, 1000mm, 2000mm
150mm, 500mm, 1000mm, 2000mm
Wire Attached
With wire
With wire
With wire
With wire
With wire
Wire Color Order
Black-Black
White-White
Black-Red
Black-Black
White-White
LED Strip PCB Thickness
0.25~0.35mm
LED Strip PCB Type
Flexible
Material
Nylon(PA66), PVC, Copper, Polycarbonate
Nylon(PA66), PVC, Copper, Polycarbonate
Nylon(PA66), PVC, Copper, Polycarbonate
Nylon(PA66), PVC, Copper, Polycarbonate
Nylon(PA66), PVC, Copper, Polycarbonate
Housing Size
15.6*13.6*3.3mm
15.6*13.6*3.3mm
15.6*13.6*3.3mm
15.6*13.6*3.3mm
15.6*13.6*3.3mm
Housing Color
Transparent
Transparent
Transparent
Transparent
Transparent
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
