10mm 2 Pins for IP20 SMD/COB Mono
Lowest ProfileFor IP20 Support CustomizationPierce to Contact
Brand:No Brand
MOQ:contact us for more details about MOQ
Customizable Options:WirePackageLabelConnector
Brief Info
- Solderless connector for 10mm indoor single-color/COB LED strips; ultra-low profile fits inside aluminum channels.
- Typical uses: COB linear lighting, cabinet/display lighting, aluminum-profile strips.
- Each pin makes multiple contacts for reliable conduction with less heat; the open-top housing blocks no light, dissipates heat, and joins with no dark gap.
- See the full specifications below.
- Contact us for more details or to check compatibility with your LED strips.
Specification
Item NO.
BCI10BB-2
BCI10BXB-2W-F20ABR150
BCI10XB-2W-F20ABR150
BCI10BXB-2W-T18ABR-150
BCI10XB-2W-T18ABR-150
BCI10BXB-2W
Series Name
Beetle Clip Invisible
LED Strip Width
10mm
Pin Quantity
2 Pins
Connection Type
Strip to Strip Joint
Strip to Strip Bridge
Strip to Power
Strip to Strip Bridge
Strip to Power
Strip to Strip Bridge
Contact Method
Pierce Contact
Shape of Connection
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
LED Strip IP Rating
IP20 (Non-waterproof)
LED Light Type
SMD、COB
SMD、COB
SMD、COB
SMD、COB
SMD、COB
SMD、COB
LED Strip Color
Mono
Max Working Voltage
DC24V
Max Working Current
5.5A
3.5A
3.5A
4.5A
4.5A
3.5A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
Wire Gauge
/
20AWG
20AWG
18AWG
18AWG
20AWG
Wire Cross Section
/
0.52mm²
0.52mm²
0.78mm²
0.78mm²
0.52mm²
Standard Wire Length
/
150mm
150mm
150mm
150mm
150mm
Wire Attached
No wire
With wire
With wire
With wire
With wire
With wire
Wire Color Order
/
Black-Red
Black-Red
Black-Red
Black-Red
White-White
LED Strip PCB Thickness
0.25~0.35mm
LED Strip PCB Type
Flexible
Material
Polycarbonate、Copper
Polycarbonate、Copper、PVC
Polycarbonate、Copper、PVC
Polycarbonate、Copper、Teflon
Polycarbonate、Copper、Teflon
Polycarbonate、Copper、PVC
Housing Size
15.6*11.6*3.3mm
15.6*11.6*3.3mm
15.6*11.6*3.3mm
15.6*11.6*3.3mm
15.6*11.6*3.3mm
15.6*11.6*3.3mm
Housing Color
Transparent
Transparent
Transparent
Transparent
Transparent
Transparent
Item NO.
BCI10XB-2W
BCI10BXB-2W-T18AWW-150
BCI10XB-2W-T18AWW-150
BCI10-L2
BCI10XB-DCDF-20A2PBR
BCI10XB-DCDF-20A2PDBK
—
Series Name
Beetle Clip Invisible
LED Strip Width
10mm
Pin Quantity
2 Pins
Connection Type
Strip to Power
Strip to Strip Bridge
Strip to Power
Strip to Strip Joint

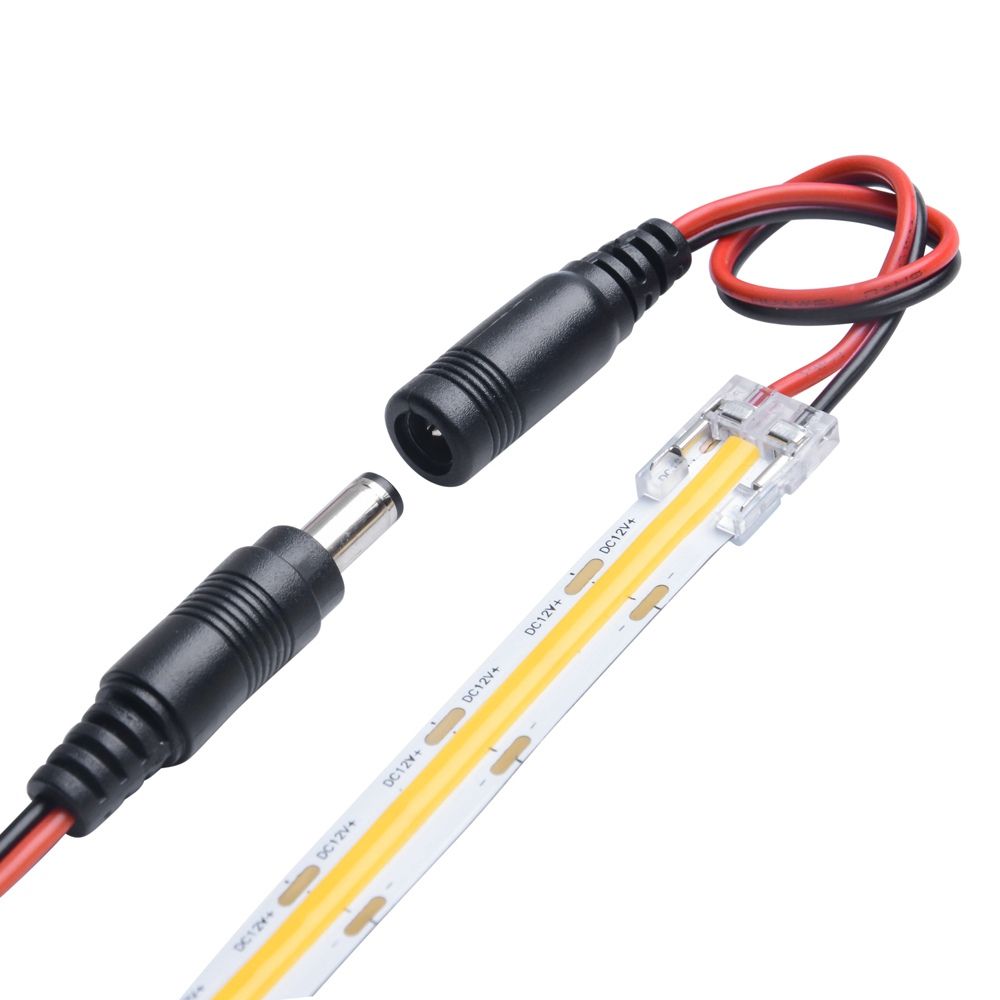

Strip to DC
Strip to DC
Contact Method
Pierce Contact
Shape of Connection
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
L Shape (90 Degree)
I Shape (Straight)
I Shape (Straight)
LED Strip IP Rating
IP20 (Non-waterproof)
LED Light Type
SMD、COB
SMD、COB
SMD、COB
SMD、COB
SMD、COB
SMD、COB
LED Strip Color
Mono
Max Working Voltage
DC24V
Max Working Current
3.5A
4.5A
4.5A
4A
3.5A
3.5A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
Wire Gauge
20AWG
18AWG
18AWG
/
20AWG
20AWG
Wire Cross Section
0.52mm²
0.78mm²
0.78mm²
/
0.52mm²
0.52mm²
Standard Wire Length
150mm
150mm
150mm
/
150mm、500mm、1000mm、2000mm
150mm、500mm、1000mm、2000mm
Wire Attached
With wire
With wire
With wire
No wire
With wire
With wire
Wire Color Order
White-White
White-White
White-White
/
Black-Red
Black-Black
LED Strip PCB Thickness
0.25~0.35mm
LED Strip PCB Type
Flexible
Material
Polycarbonate、Copper、PVC
Polycarbonate、Copper、Teflon
Polycarbonate、Copper、Teflon
Polycarbonate、Copper
Polycarbonate、Copper、PVC
Polycarbonate、Copper、PVC
Housing Size
15.6*11.6*3.3mm
15.6*11.6*3.3mm
15.6*11.6*3.3mm
19*19*3.5mm
15.6*11.6*3.3mm
15.6*11.6*3.3mm
Housing Color
Transparent
Transparent
Transparent
Transparent
Transparent
Transparent
Item NO.
BCI10XB-WDCDF-20A2PWW
BCI10-HL813M-20A2PBR
BCI10-HL813M-20A2PDBK

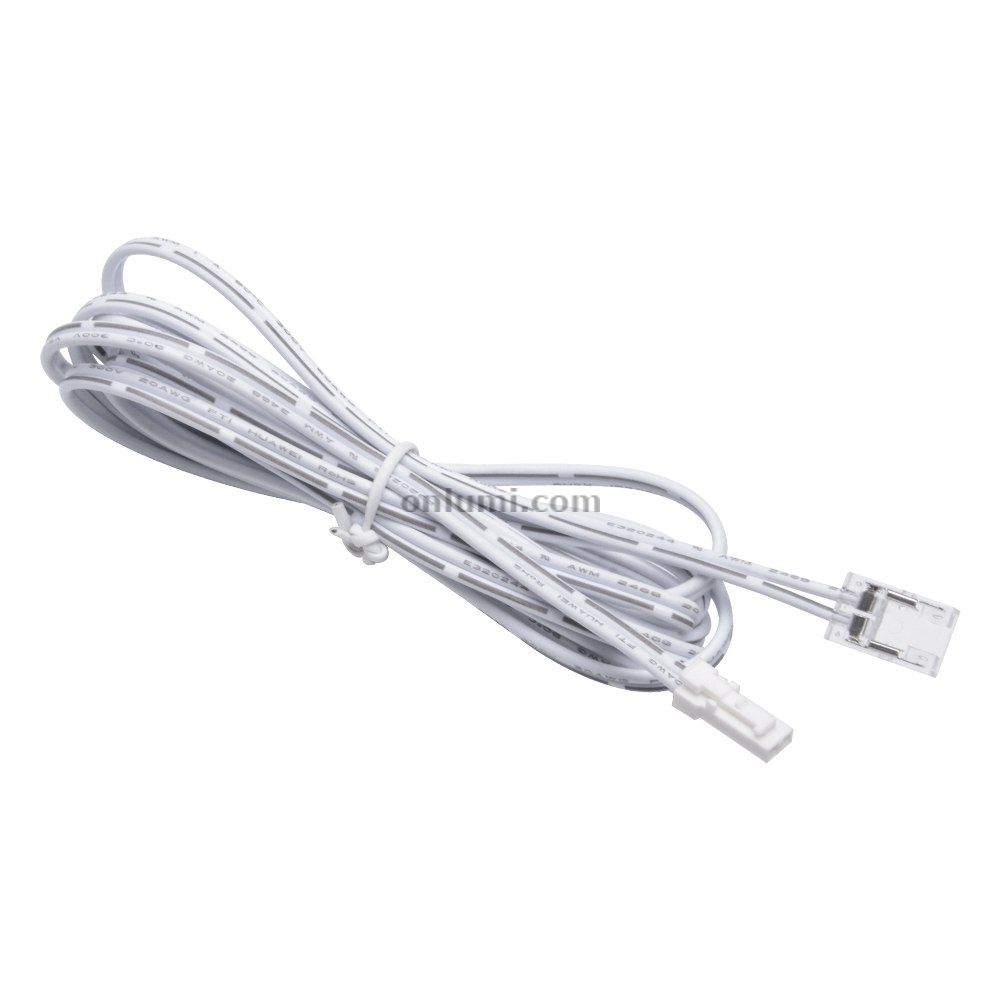

BCI10-WL814M-20A2PWW
BCI10-H2510M-20A2PBR
BCI10-H2510M-20A2PDBK
—
—
—
Series Name
Beetle Clip Invisible
LED Strip Width
10mm
Pin Quantity
2 Pins
Connection Type
Strip to DC
Strip to ON2.54
Strip to ON2.54
Strip to ON2.54
Strip to 2510
Strip to 2510
Contact Method
Pierce Contact
Shape of Connection
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
LED Strip IP Rating
IP20 (Non-waterproof)
LED Light Type
SMD、COB
SMD、COB
SMD、COB
SMD、COB
SMD、COB
SMD、COB
LED Strip Color
Mono
Max Working Voltage
DC24V
Max Working Current
3.5A
3A
3A
3A
3.5A
3.5A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
Wire Gauge
20AWG
20AWG
20AWG
20AWG
20AWG
20AWG
Wire Cross Section
0.52mm²
0.52mm²
0.52mm²
0.52mm²
0.52mm²
0.52mm²
Standard Wire Length
150mm、500mm、1000mm、2000mm
150mm、500mm、1000mm、2000mm
150mm、500mm、1000mm、2000mm
150mm、500mm、1000mm、2000mm
150mm、500mm、1000mm、2000mm
150mm、500mm、1000mm、2000mm
Wire Attached
With wire
With wire
With wire
With wire
With wire
With wire
Wire Color Order
White-White
Black-Red
Black-Black
White-White
Black-Red
Black-Black
LED Strip PCB Thickness
0.25~0.35mm
LED Strip PCB Type
Flexible
Material
Polycarbonate、Copper、PVC
Nylon(PA66)、PVC、Copper、Polycarbonate
Nylon(PA66)、PVC、Copper、Polycarbonate
Nylon(PA66)、PVC、Copper、Polycarbonate
Nylon(PA66)、PVC、Copper、Polycarbonate
Nylon(PA66)、PVC、Copper、Polycarbonate
Housing Size
15.6*11.6*3.3mm
15.6*11.6*3.3mm
15.6*11.6*3.3mm
15.6*11.6*3.3mm
15.6*11.6*3.3mm
15.6*11.6*3.3mm
Housing Color
Transparent
Transparent
Transparent
Transparent
Transparent
Transparent
Item NO.
BCI10-W2510M-20A2PWW
—
Series Name
Beetle Clip Invisible
LED Strip Width
10mm
Pin Quantity
2 Pins
Connection Type
Strip to 2510
Contact Method
Pierce Contact
Shape of Connection
I Shape (Straight)
LED Strip IP Rating
IP20 (Non-waterproof)
LED Light Type
SMD、COB
LED Strip Color
Mono
Max Working Voltage
DC24V
Max Working Current
3.5A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
Wire Gauge
20AWG
Wire Cross Section
0.52mm²
Standard Wire Length
150mm、500mm、1000mm、2000mm
Wire Attached
With wire
Wire Color Order
White-White
LED Strip PCB Thickness
0.25~0.35mm
LED Strip PCB Type
Flexible
Material
Nylon(PA66)、PVC、Copper、Polycarbonate
Housing Size
15.6*11.6*3.3mm
Housing Color
Transparent
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
Interested in this product?
Contact us for pricing and technical support
