IP20 2 Pin ON2.54(L814) Mini Plug Jacket Wire
Brief Info

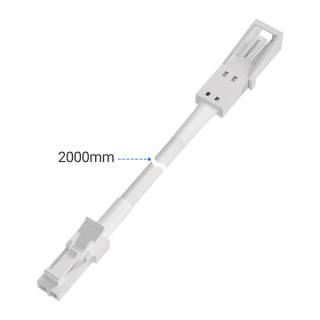

- Ready-made ON2.54 (L814) mini-plug cable in jacketed wire for extending a plugged power run.
- Typical uses: furniture lighting such as cabinet, wardrobe and display-case lighting.
- The extender type has a male end and a female end to lengthen a plugged run.
- Supplied as a finished cable assembly with connectors already terminated — no soldering, just plug in.
- Contact us for more details or to check which type suits your wiring.
Specification
Item NO.
WL814MF-J2W2P22ABR2000
Connection Type
Extender
Connector Gender
Male, Female
Housing Color
White
Wire Color
White Jacket, Black-Red Core
Wire Gauge
22AWG
Wire Cross Section
0.32mm²
Wire Length
2000mm
Connector Housing Type
ON2.54(L814), ON2.54(no hook)
Pin QTY.
2 Pins
Wire Type
Flat Sheathed
Max Voltage
DC 48V
Max Current
5A
Material
PVC & Copper & Plastic
IP Rating
IP20
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
